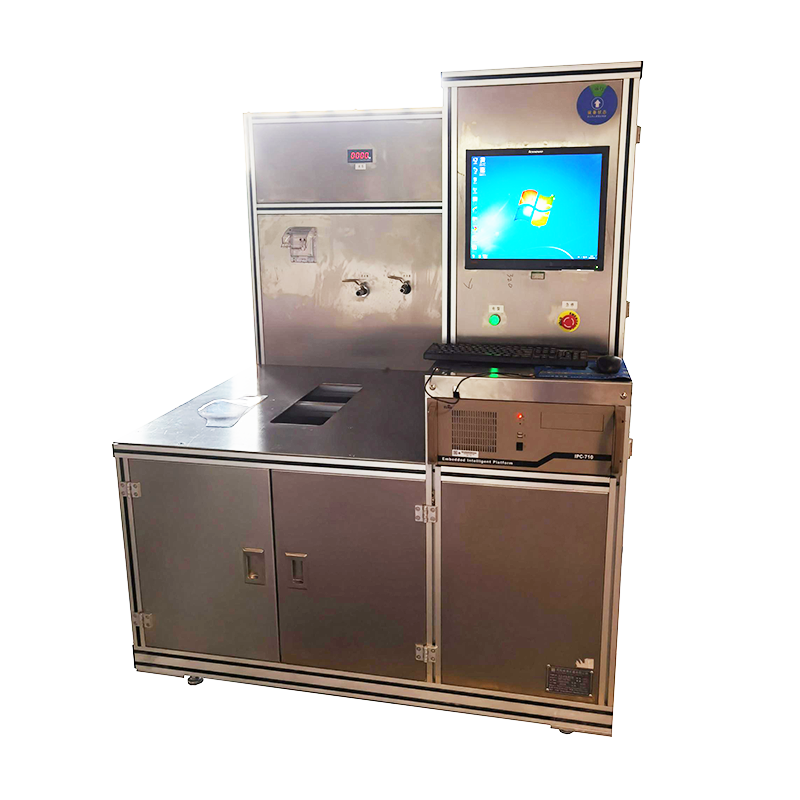

Water Impact (Water Hammer) Testing Machine for Flushing Device-Toilet testing machine-Furniture testing machine, bathroom testing machine, environment testing machine, sports equipment t-Lituo testing machine

Product Details

Technical parameters:

Working voltage	The water pump is three-phase AC380V and the rest is single-phase AC220V, with reliable grounding
Power	3KW
Water pressure accuracy	1%
Test medium	Normal temperature water
Control system	PLC+ Touch screen
Test workstation	One workstation
Test the product range	Inlet valve, drain valve
Outer diameter of the copper tube	15mm, with a wall thickness of 1mm
Acquisition frequency	200HZ
Water tank capacity	60L
Equipment dimensions (approximately)	1200* 1200*1800mm
Appearance color	The appearance is made of stainless steel with a brushed surface treatment

Control system:

This machine is composed of control components such as PLC, touch screen, water pump and professional test programs, etc., to form a control system. The test record data can be imported into the laboratory management system.

Comply with the standards and terms:

GB/ T26730-2011 Gravity Flushing Devices for Sanitary Ware Toilets and Sanitary Ware Frames 5.2.9, Appendix D; .
GB/T 34549 2017 Sanitary Ware - Intelligent Toilets Clause 7.2, 9.4.2
JC/T 285-2010 Toilet Bowl Sanitary Ware Clause 6.7.7.8
CBMIF15-2016 Smart Toilet Clause 7.2, 9.4.2.
