Product description

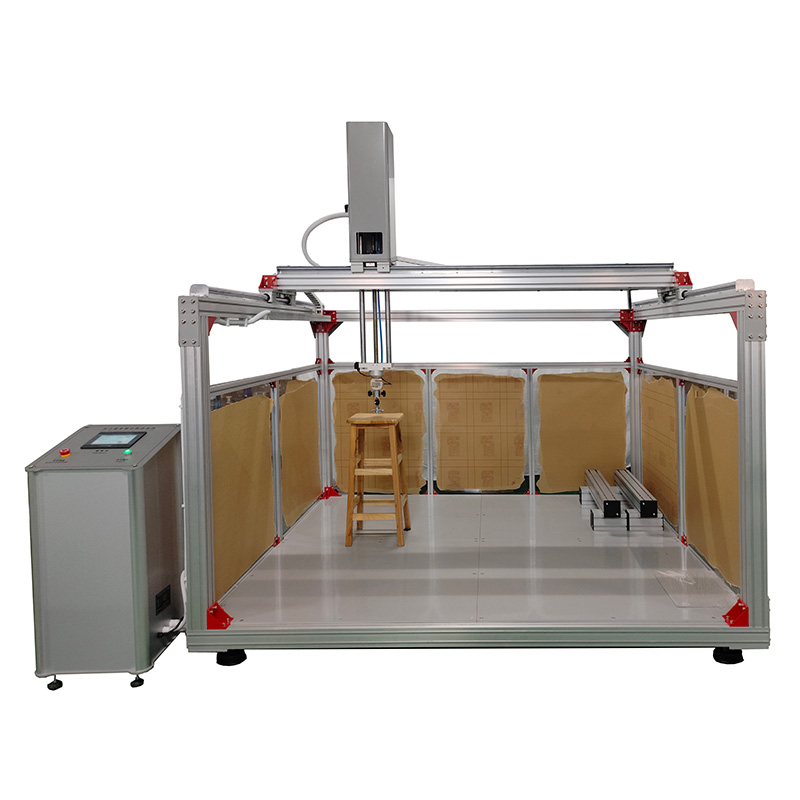

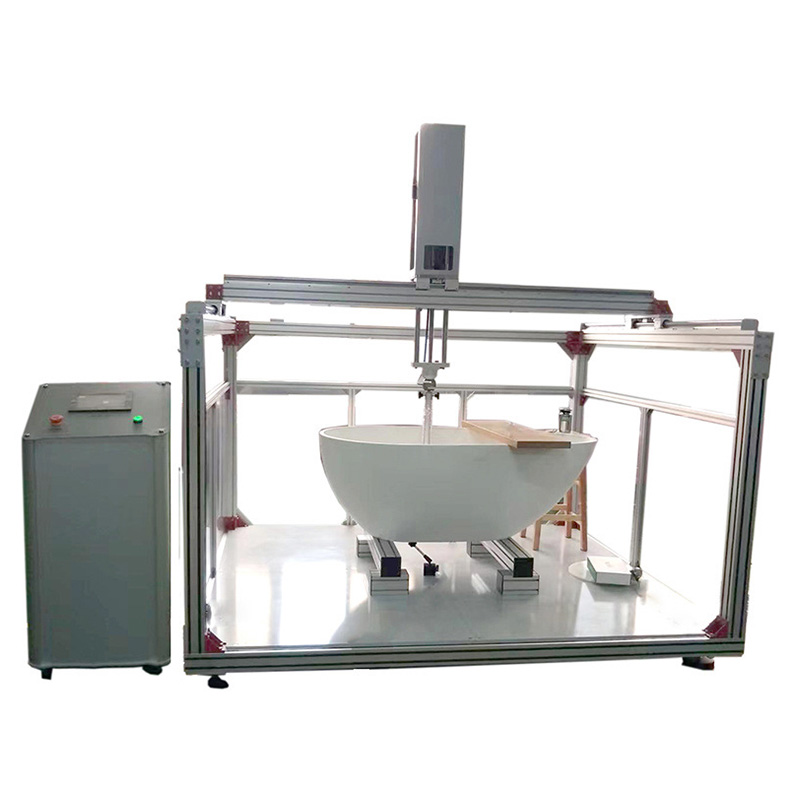

This machine is mainly used for the determination of the bathtub.
Control system
This machine uses PLC, touch screen, servo motor, wire rod, sensor and other control components and professional test procedures to form the control system.
Technical parameter
Project Name | Requirement |
Working voltage | Single-phase AC220V, with reliable grounding |
Electric power | 1.5KW |
Force sensor | 500Kg accuracy 1% |
Test speed | 0.01-300mm/min |
Appearance | Industrial aluminum profile |
Retention time | 0-999min can be set |
Outline dimension | About 2600 * 2600 * 2000 depends on the test product |
Compliance with the standards and terms
Category | Standard | Model Clauses | ||
Bathtub | JC / T 779-2010 Fiberglass reinforced plastic bath tub | appendix A |
