Toilet testing machine

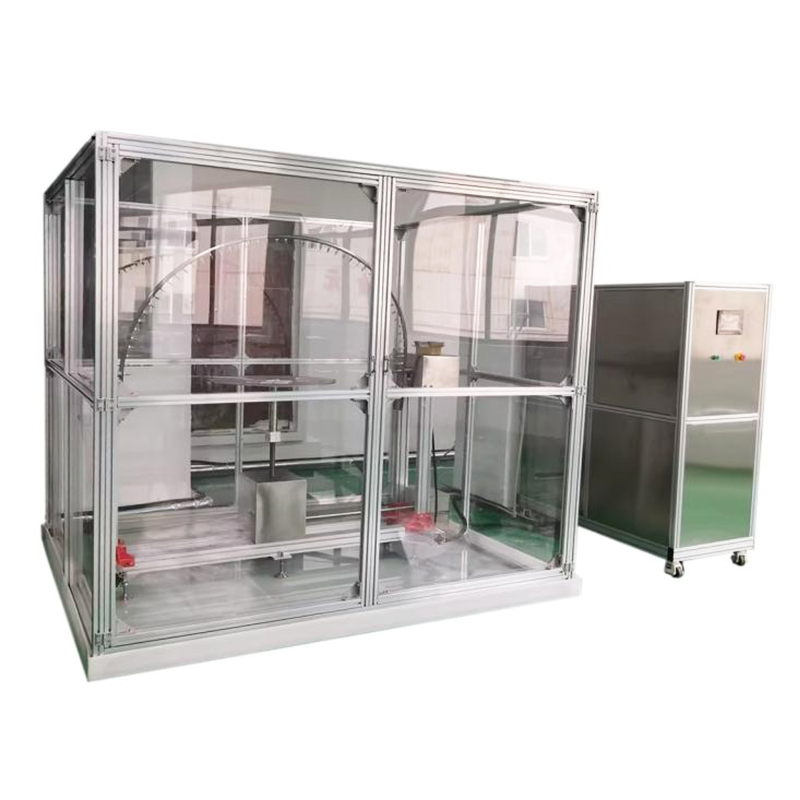

Spray Test Room | Spray Test Machine
  • Short Description
    This machine is mainly used for electronic sanitary products, including intelligent toilet, jacuzzi, CNC water nozzle and other products of waterproof grade IPX 4 test.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is mainly used for electronic sanitary products, including intelligent toilet, jacuzzi, CNC water nozzle and other products of waterproof grade IPX 4 test.


Control system

This machine adopts PLC, touch screen, servo motor, water pump,  inverter and other control components and professional test procedures to constitute the control system.


Technical parameter

1.Working voltage:Single-phase AC220V, with reliable grounding.

2.Working air pressure:External connection, 0.3MPa~0.6 MPa

3.Electric power:Up to 6KW

4.Upper monitor:Touch screen (optional computer)

5.Spray amount:0.07 L/min / spray nozzle

6.Spray way:Posting pipe flushing mode

7.Tube size:The pendulum tube is a 180° semicircle pendulum tube

Radius: R200mm, tube diameter 16mm; R600mm, tube diameter 25mm; R1400mm, tube diameter 32mm; pendulum tube is interchangeable

8.Pendulum angle:150°, a total of 300°, the angle within the range can be set

9.Spray pendulum tube cycle:The 5~12S is adjustable

10.Nozzle layout:The nozzle is distributed on a 90° arc on the vertical sides with a center spacing of 50mm

11.Nozzle inside diameter:0.4mm

12.Test table bearing:≤100kg

13.Water supply:Water tank water, tap water water

14.Machine size:Length 3000 * width 2500 * height 2100 (unit: mm)


Compliance with the standards and terms

CategoryStandardModel Clauses

Intelligent toilet sea

GB4706.53-2008 Special requirements for toilet sitting

15.1.1 It may be necessary to test the inside with the nozzle described in 14.2.4 b in GB4208-2008).

Electronic bathroom products

GB4706.1-2005 Safety of household and similar electrical appliances- -Part 1

15 It is resistant to moisture

Intelligent toilet sea

JG / T285-2010 sanitary cleane

7.3 The waterproof grade test shall be conducted according to GB4208-2008, clause 14.2.4

Numerical control constant temperature water nozzl

GB / T 24293-2009 CNC constant temperature water

7.7 Electrical housing protection grade test

Spa and whirlpool bath

QB 2585-2007 Water Spray Jacuzz

Electrical Safety (GB 4706.73-2004 IPX 4, IPX 5)

Intelligent toilet seat

GB34549-2017 Intelligent toilet implement

5.16 Test the whole machine waterproof grade GB4208-2008 clause 14.2.4
