Product description

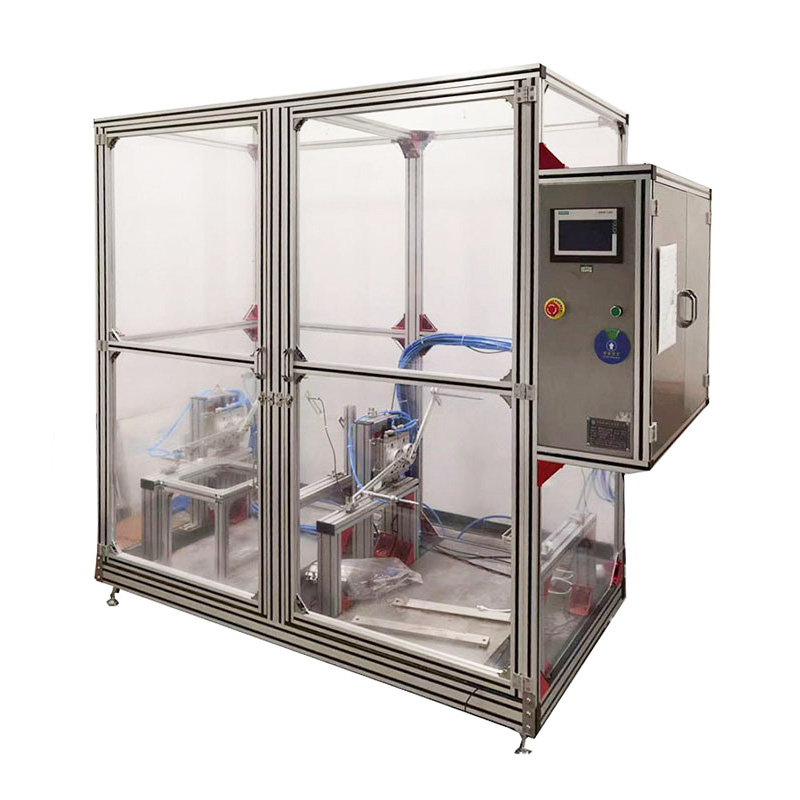

This machine is mainly used for swing, pressure and strength test of toilet seat ring and cover.
The whole equipment is composed of computer (optional touch screen), PLC, cylinder, force sensor, pneumatic proportional valve (optional) and other control components and professional test programs.
Product parameters
Operating voltage | Single-phase AC220V with reliable grounding |
Working air pressure | External connection,0.3MPa ~ 0.6MPa |
Generating auxiliary power | 2KW |
Test product range | Ordinary cover plate and intelligent cover plate |
Test stations | 4 stations (optional) 1 pressure test station; 1A rocking test station; 1 cover plate strength test station and 1 installation strength test station. |
Upper computer | Computer (touch screen optional) |
Infrared stealth material | Aluminum profile + aluminum-plastic sealing plate |
Sensor | Tension pressure sensor (500N, 5KN) |
Dimensions | Length: 4950mm; Width: 1100mm; Height: 2200mm |
