Toilet flushing performance testing machine

Short Description

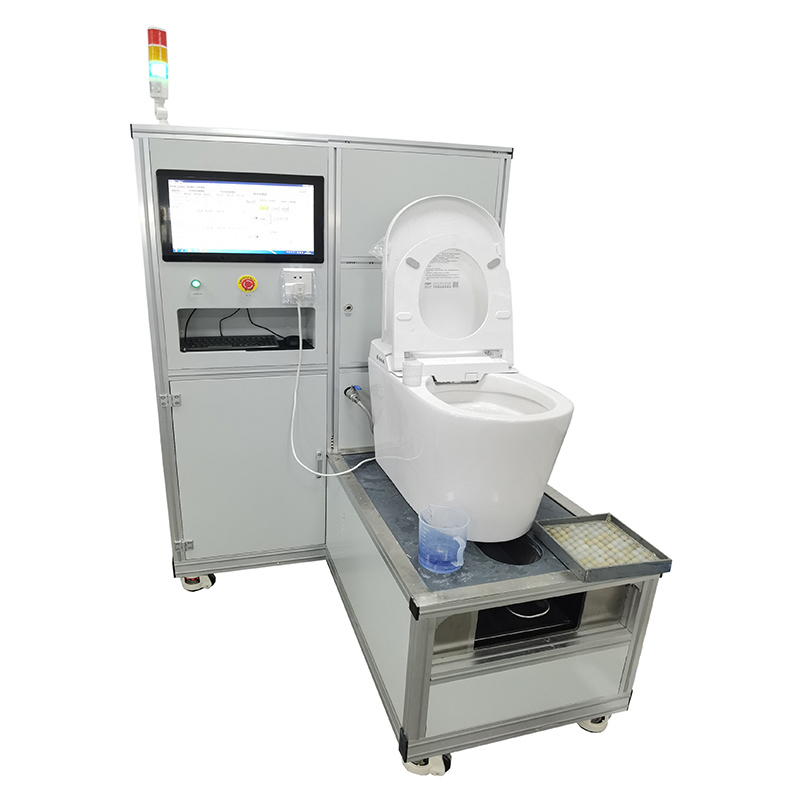

This machine is mainly used for testing the flushing performance, sealing and flow rate of the toilet.The machine adopts the touch screen and the corresponding test monitoring and recording program, and the control system is composed of PLC, water pump, weighing sensor, etc. The test program can run automatically. In the control program can display test times, running parameters and other curves and print or export as Excel or Word format documents.
SEND INQUIRY NOW

Product Details

Product description

This machine is mainly used for testing the flushing performance, sealing and flow rate of the toilet.The machine adopts the touch screen and the corresponding test monitoring and recording program, and the control system is composed of PLC, water pump, weighing sensor, etc. The test program can run automatically. In the control program can display test times, running parameters and other curves and print or export as Excel or Word format documents.

Product parameters

Working water pressure	Working water pressure 0.05~0.9MPa
Hydraulic resolution	0.001MPa
Flowmeter 1	Flowmeter 1 Range 3~40L/M
flowmeter	Precision 3%
Weighing range	0~30kg(0~20L)
Weighing accuracy	20g(0.02L)
Time frame	1 second ~ 60 minutes can be set arbitrarily
Time accuracy	0.1 second
Test medium	Normal temperature water
Hydraulic stability	Within ±0.05MPa (below 0.5MPa), within ±0.1MPa (0.5MPa)
Water pressure digital display	Display accuracy 0.001MPa
Water temperature digital display instrument	Display accuracy 0.1ºC
Current digital display instrument	Display accuracy 0.1A
Voltage digital display instrument	Display accuracy 1V
Station	9 Stations One of the stations is equipped with a follow-up water measuring device
Dimension	6560mm1600mm1850mm (length * width * height)
