Product description

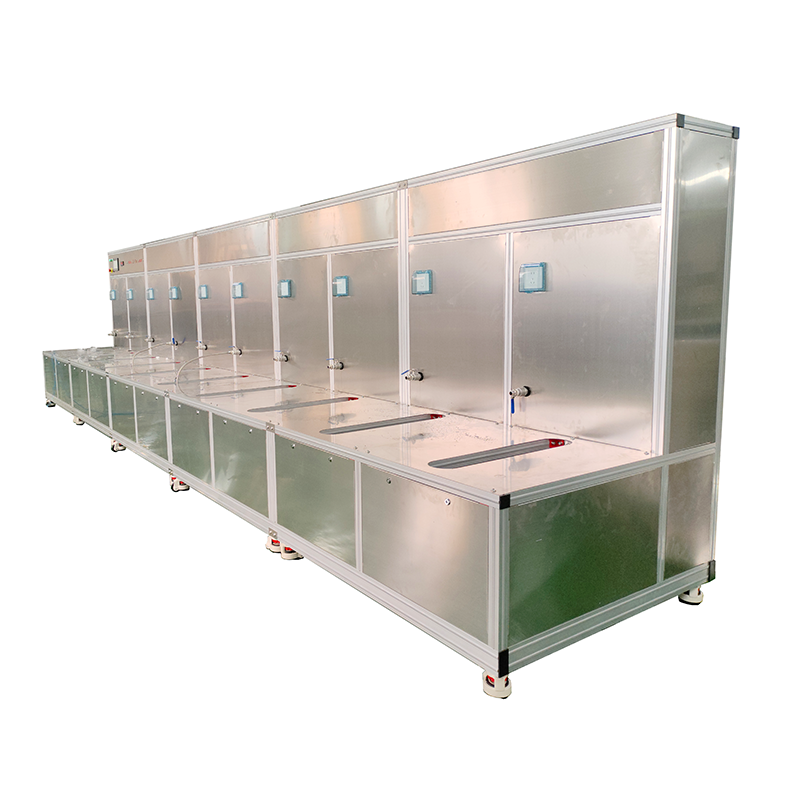

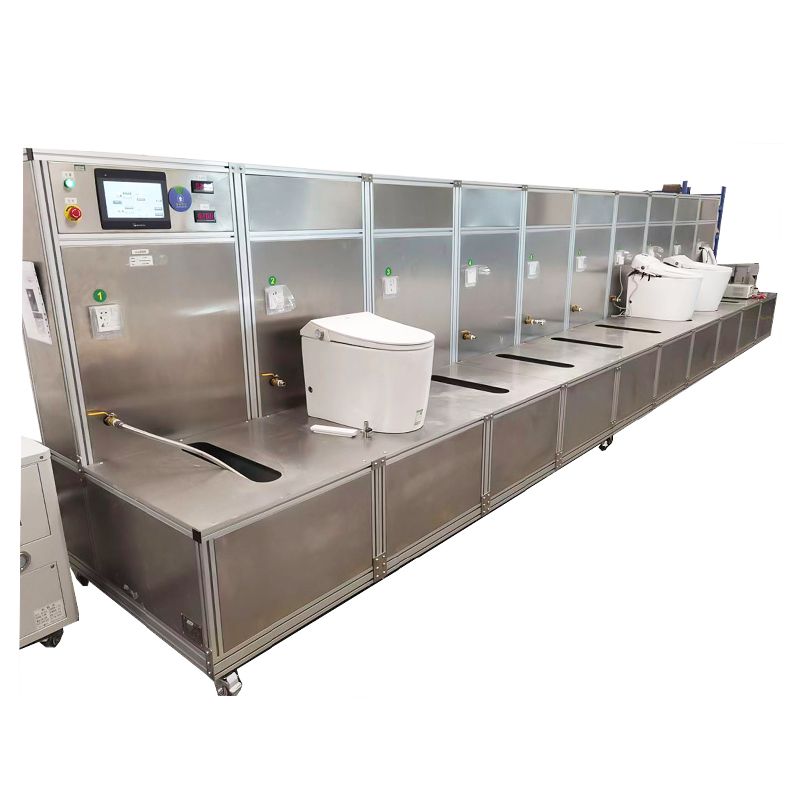

This machine is mainly used for testing the lifespan and durability of smart toilets and smart toilet covers.
Control system
This machine is composed of control components such as PLC, water pump, sensors, etc., as well as professional test programs, etc., forming a control system.
Comply with standards
1. Smart Toilet: CBMF 15-2016 Smart Toilet 9.4.6 Whole Machine Life Test
2. Smart Toilet: GB/T 34549-2017 Sanitary Ware - Smart Toilet 7.5 Overall service life
3. Electric Toilet: GB/T 23131-2018 Electric Toilet for Household and Similar Purposes 5.7 Durability
Technical parameters
1. Working voltage: Three-phase AC380V for water pump, heating and cooling, and single-phase AC220V for the rest
2. Working air pressure: External,0.3MPa to 0.6 MPa
3. Power consumption: Up to 15KW
4. Upper computer: PLC+ touch screen
5. Test medium: Water: 15℃±5℃
6. Test stations: 10 stations (optional)
7. Test product scope: Smart toilets
8. Exterior material: Aluminum profile frame + aluminum-plastic sealing plate
9. Water pump: It can provide static pressure of 0.05 to 1.0MPa
11. Overall dimensions: Length: 8000mm; Width: 1200mm Height: 1800mm
