Product Details

Product description:

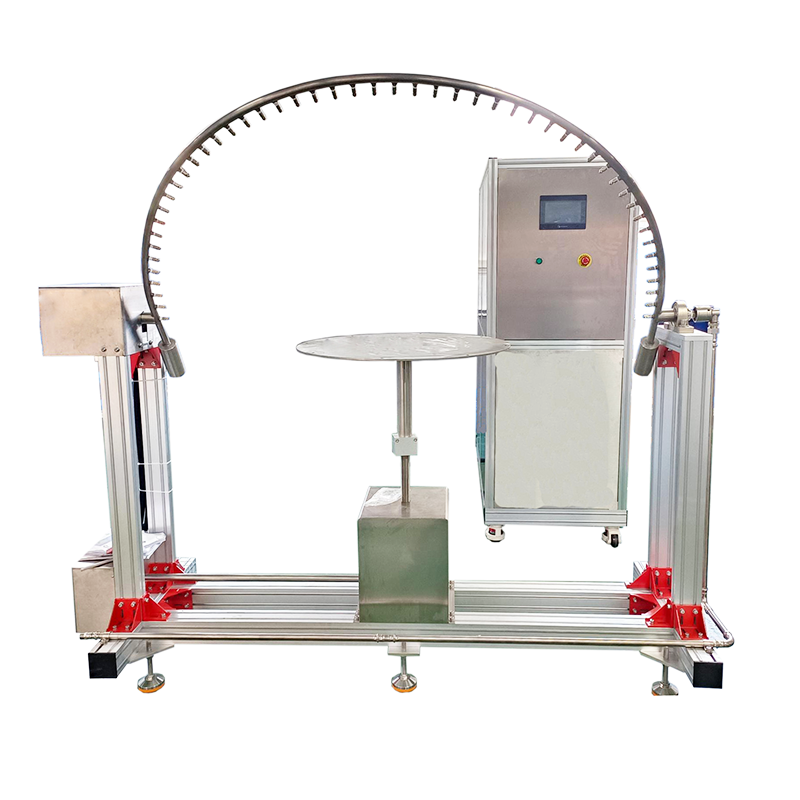

This machine is mainly used for the waterproof grade IPX3 and IPX4 tests of smart toilet products.

Technical parameters:

Working voltage	Single-phase AC220V, with reliable grounding
Working air pressure	External connection, 0.3 MPa to 0.6 mpa
Water supply pressure	0-0.8MPa(static pressure)
Power consumption	Up to 3KW
Upper computer	Touch screen
Spray volume	0.07L/min/ nozzle
Spray method	Swing pipe flushing mode
Specification of swing pipe	Radius: R800mn. The pipe diameter inside the swing tube is 18mm. Pipe diameter: 18mm inside / 22mm outside
Swing angle	The swing pipe is struck 60° on each side of the vertical line, totaling 120°, and 180° on each side of the vertical line, totaling 360°
Nozzle arrangement	The nozzles are distributed on 90° arcs on both vertical sides, and the center distance between the nozzles is 50mm
Nozzle inner diameter	0. 4mm
The load-bearing capacity of the test bench	≤100kg
Water supply system	Water is supplied from the water tank and replenished with tap water
Test time	The time can be set by yourself
Spatial dimension	Approximately: 3500mm X 2800mm X 1500mm
Appearance requirements	Brushed treatment on the surface of stainless steel

Control system:

This machine adopts PLC and touch screen corresponding test monitoring and recording programs, and is composed of PLC, water pump, flowmeter, etc. to form a control system. The test program can run automatically.

Comply with the standards and terms:

GB/T 34549-2017 5.16 The whole machine is waterproof
JG/T 285-2010 6.2 Waterproof grade
GB/T 4208-2008 11.1-11.3, 14
This machine is mainly used for performance testing of smart toilets and smart toilet covers. It can set flow parameters and automatically adjust the water spray flow. We only produce equipment and do not provide glass rooms.
