Toilet testing machine

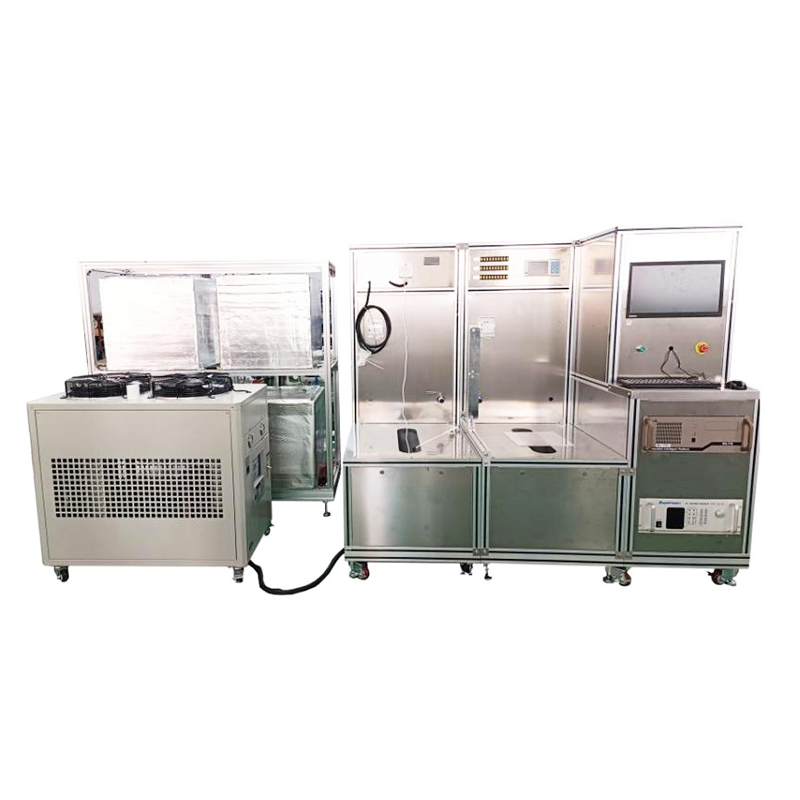

Intelligent toilet comprehensive performance testing machine
  • Short Description
    This machine is mainly used for the performance test of intelligent toilet seat and intelligent toilet cover.
  • SEND INQUIRY NOW
Product Details

Product Description

This machine is mainly used for the performance test of intelligent toilet seat and intelligent toilet cover.


Control System

This computer consists of computer, PLC, water pump, sensor, and other control components and professional test procedures constitute the control system.


Technical Parameter

Item

Requirement

Working voltage

Water pump, heating, refrigeration three-phase AC380V, the remaining single-phase AC220V

Test medium

Water: 5ºC, 15ºC, 25ºC, 35ºC water temperature (one cold water tank, one hot water tank)

working air pressure

External connection, 0.3MPa~0.6 MPa

Electric power

Up to 12KW

Upper monitor

Computer

Test station

Single position

Test product range

Intelligent toilet seat

Appearance material

Aluminum profile frame + aluminum-plastic sealing plate

Water pump

Static pressure 0.05~1.6MPa is available

Actuating device

Pump, sensor

Machine size

Length: 4500mm; width: 2500mm; height: 1800mm


Compliance with the standards and terms

Category

Standard

Model Clauses

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.2 Nozzle extension and recovery time

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.3 Water temperature response characteristic test

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.4 Stability test of water temperature

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.5 Test of cleaning water flow

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.6 Cleaning water quantity test

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.7, cleaning force test

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.10.1 Warm air temperature test

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.10.2 Warm air output test

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.3.11 Heating function test of the sitting ring

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.4.1 Hydraulic pressure resistance test

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.4.2 Waterproof strike performance test

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.4.7 Energy consumption of the complete machine

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.4.8 Rated power test

Intelligent toilet seat

CBMF 15-2016

Intelligent toilet seat

9.5.1 Power supply test

Intelligent toilet seat

GB / T 34549-2017 Sanitary ware smart toilet

6.2.1 Nozzle extension and recovery time

Intelligent toilet seat

GB / T 34549-2017 Sanitary ware smart toilet

6.2.2 Heating performance

Intelligent toilet seat

GB / T 34549-2017 Sanitary ware smart toilet

6.2.3, water temperature stability

Intelligent toilet seat

GB / T 34549-2017 Sanitary ware smart toilet

6.2.4. Cleaning water flow rate

Intelligent toilet seat

GB / T 34549-2017 Sanitary ware smart toilet

6.2.5 Cleaning water volume

Intelligent toilet seat

GB / T 34549-2017 Sanitary ware smart toilet

6.2.6 Cleaning force

Intelligent toilet seat

GB / T 34549-2017 Sanitary ware smart toilet

6.2.7 Cleaning area

Intelligent toilet seat

GB / T 34549-2017 Sanitary ware smart toilet

6.3 Self-cleaning performance of the spray nozzle
