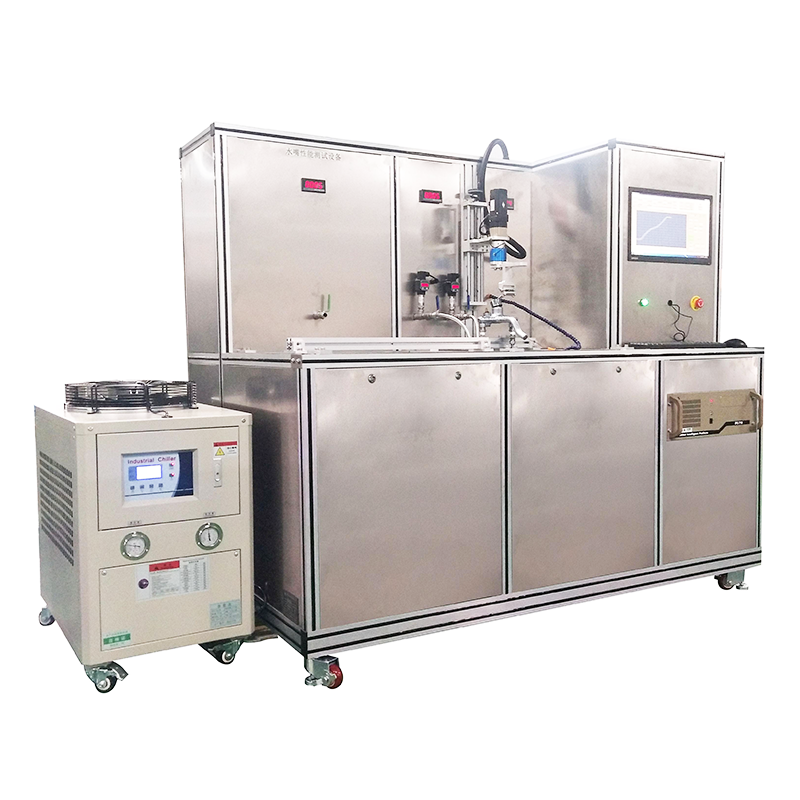

Nozzle Comprehensive Performance Testing Machine-Toilet testing machine-Furniture testing machine, bathroom testing machine, environment testing machine, sports equipment t-Lituo testing machine

Product Details

Product description

This machine is mainly used for flow. Flow uniformity Determination of water use efficiency grade of faucets Single-handle dual-control sensitivity Nozzle static pressure sealing performance Dynamic pressure sealing performance of the nozzle The faucet conversion switch is sealed.

Technical parameters

Dynamic pressure test range	0-0.1MPa, accuracy 1%; 0.1-0.5MPa, sensor accuracy 0.5%. Static pressure: 0.05-3.5MPa
Pressure sensor	Range: 0-4MPa, accuracy: 0.5 grade
Traffic test scope	0.13-2.4 m ³ /h, accuracy: 0.5 grade
Temperature control range	Hot water: room temperature -80ºC; Cold water: 10ºC- room temperature
Temperature sensor	0-100ºC Accuracy: 0.5 grade
Angle adjustment	Accuracy: 1 degree Displacement 0.5 /s or 0.8mm/s; Accuracy: 0.5mm or better
The number of workstations for inspection	2 Workstations
Power supply for equipment	AC380V, power no more than 15kW

Comply with the standards and terms
GB 18145-2014 "Ceramic Plate Sealed Faucets"
GB 25501-2010 "Limiting Values and Grades of Water Efficiency for Faucets"
