Toilet Lid Swing Opening Function Testing Device-Toilet testing machine-Furniture testing machine, bathroom testing machine, environment testing machine, sports equipment t-Lituo testing machine

Product Details

Product description:

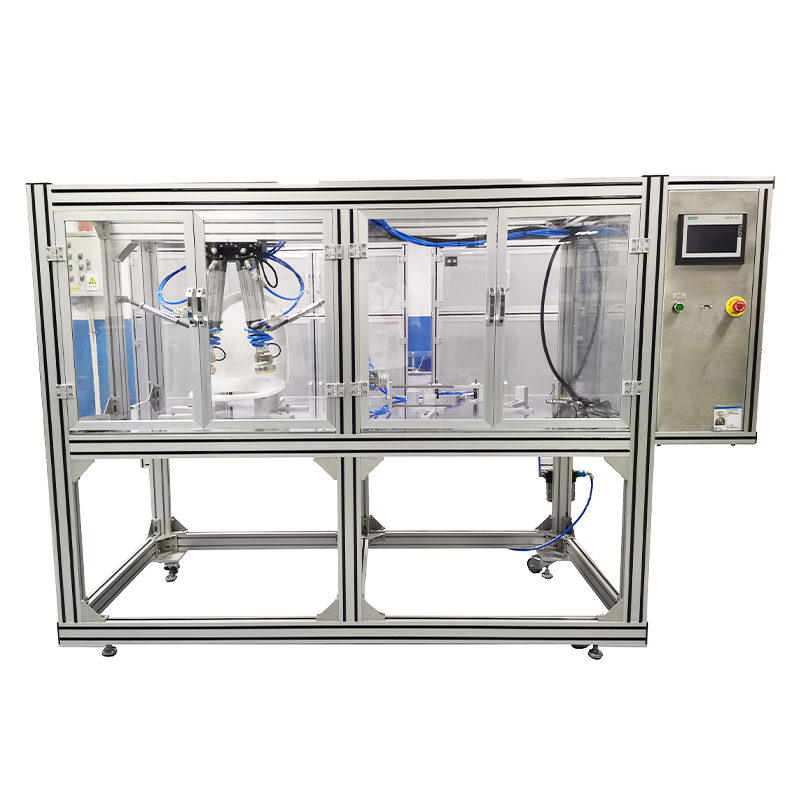

This machine is mainly used for testing the swing and opening and closing functions of the cover plate.

Technical parameters:
1. Working voltage: Single-phase AC220V, with reliable grounding
2. Working air pressure: External,0.3MPa to 0.7 MPa
3. Outer material: Aluminum profiles + stainless steel
4. Power consumption: 2KW
5. Control System: PLC+ touch screen
6. Drive unit: It is driven by a cylinder
7. Sensor range: 0-2000N
8. Sensor accuracy: 1%
9. Test Station: Station one
10. Exterior materials: Stainless steel and industrial aluminum profiles are adopted

Conform to the standard:

Category	Standard name	Standard clauses
Toilet seat ring and cover	JC/T764-2005	5.4.2 Swing test
	JC/T764-2005	5.4.5 Opening and closing test
	JC/T764-2005	5.4.6 Slow drop function
	JC/T764-2005	5.4.7 Strong pressure function
	JC/T764-2005	5.4.8 Static load
