When a leading adhesive tape manufacturer faced a six-figure customer claim due to inaccurate peel strength data, the cause traced back to choosing the wrong tensile tester. This costly lesson illustrates why the computerized double column tensile testing machine has become the gold standard across modern quality laboratories.

I. What Is a Computerized Double Column Tensile Testing Machine?

1.1 Definition and Core Components

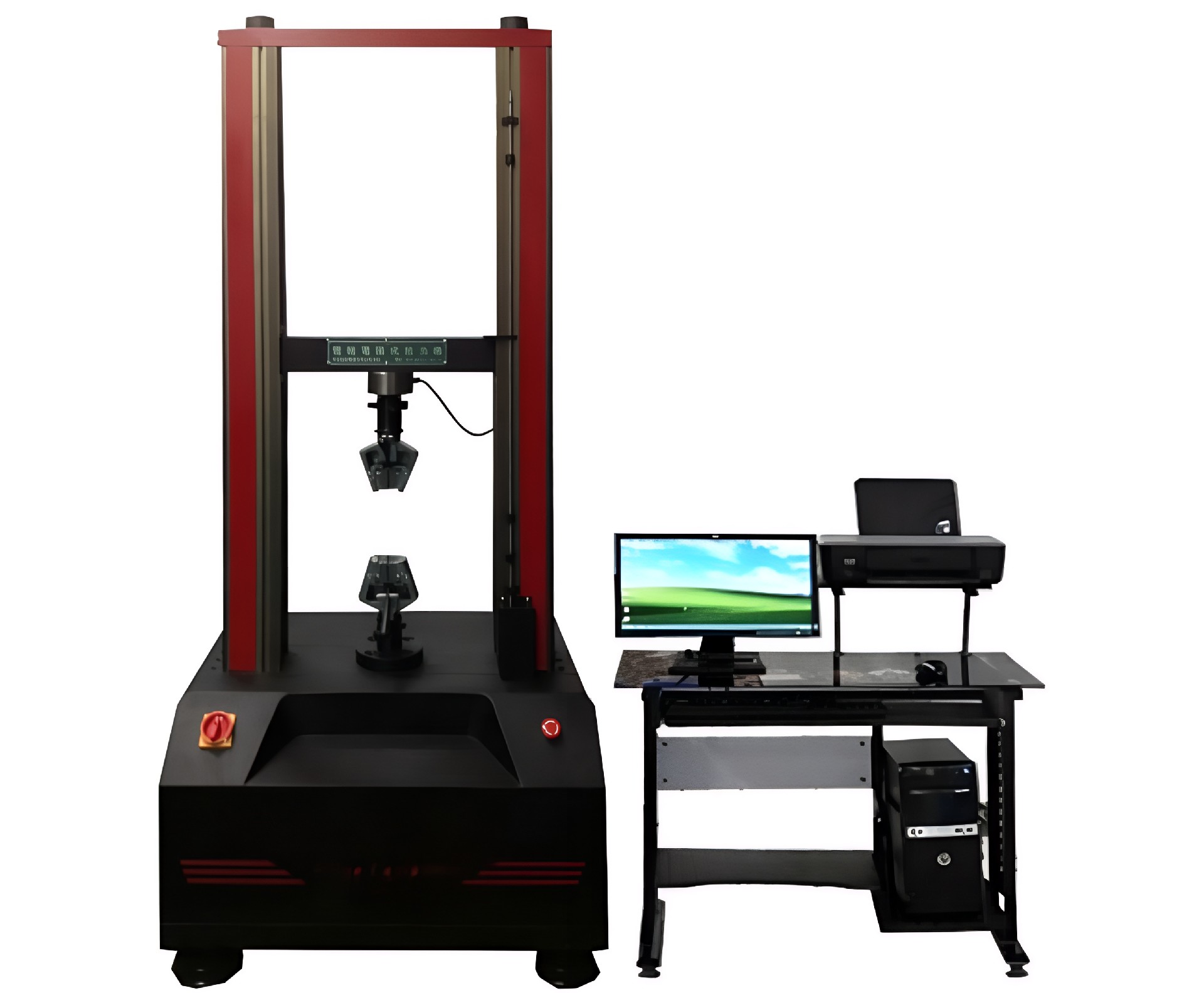

A computerized double column tensile testing machine is a precision instrument that evaluates materials under tensile, compressive, flexural, peel, and tear loading. It integrates five subsystems: a high-precision Load Cell, an AC servo motor, precision ball screws, a digital control unit, and interchangeable grips — delivering 1/100,000 resolution and ±0.3% accuracy.

1.2 Double-Column vs. Single-Column Architecture

Single-column units suit low-force tests below 5 kN. Double-column frames use twin synchronized ball screws, eliminating side-load deflection and supporting capacities up to 30 tons with superior frame stiffness — essential for rubber, hard plastics, metals, and composites.

1.3 Compliance Standards

Reputable systems comply with GB/T 16825, GB/T 1040, ISO 527, ISO 37, ASTM D638, ASTM D882, and JIS K7113. Always demand CNAS- or NIST-traceable calibration certificates.

II. How It Works

2.1 Force Acquisition via Load Cell

Bonded foil strain gauges in a Wheatstone bridge configuration convert force into electrical signals, amplified through 24-bit ADCs to deliver Class 0.5 accuracy per ISO 7500-1.

2.2 Servo Motor and Ball Screw Drive

A Panasonic AC servo motor coupled to TBI ball screws delivers test speeds from 0.001 to 500 mm/min — a range impossible to achieve with stepper motors.

2.3 Software Architecture

Professional software auto-calculates ultimate tensile strength, yield strength, modulus, and elongation, while supporting multi-curve overlay, batch testing, and SPC analysis.

III. Key Technical Specifications

3.1 Capacity Selection (10 kg–10,000 kg)

The industry rule: rated capacity should be 3–10× expected breaking force.

3.2 Accuracy Class

Class 0.5 (±0.5%) is mandatory for aerospace, medical, and automotive certification. Class 1 (±1.0%) suits routine QC.

3.3 Test Speed and Stroke

Standard configuration: 0.001–500 mm/min with 1,000 mm effective stroke and 410 mm column spacing — accommodating elastomers elongating 500%+ before fracture.

IV. Industry Applications

4.1 Flexible Packaging

T-peel testing per GB/T 8808; pharmaceutical blister film requires ≥3.5 N/15 mm.

4.2 Rubber and Plastics

NBR rubber: 18–22 MPa tensile strength, 350%–450% elongation per ISO 37.

4.3 Adhesive Tapes

180° peel per GB/T 2792; masking tape typically delivers 2.0–3.5 N/25 mm.

4.4 Textiles and Fibers

Yarn breaking strength per ASTM D2256 using capstan grips.

4.5 Metal Fasteners

Bolt tensile testing per ISO 898-1 with wedge fixtures, typically 5–10 ton capacity.

V. Operation Guide

5.1 Setup and Software Configuration

Level the machine, verify dedicated 220V circuit, configure test method, control mode, and termination criteria.

5.2 Grip Selection and Specimen Mounting

Match grips to specimen geometry; measure dimensions to 0.01 mm; always set limit stops to protect the load cell.

5.3 Test Execution and Reporting

Monitor live curves at up to 1,000 Hz sampling; export to PDF, Excel, or LIMS systems automatically.

VI. Buyer's Guide

6.1 Requirements Mapping

Document materials, maximum forces, test types, applicable standards, throughput, and data integration needs.

6.2 Authenticating Premium Components

Verify genuine Panasonic servos (holographic labels), TBI ball screws (laser-etched grades), and reputable load cells (Vishay, HBM).

6.3 After-Sales Considerations

Confirm CNAS calibration, 72-hour service response, 10-year spare parts availability, and training inclusion.

VII. FAQ

Q1. Is it the same as a universal testing machine?

Yes — terms are largely synonymous in modern usage.

Q2. How much does it cost?

Mid-range industrial models with 1,000–2,000 kg capacity typically run $7,000–$12,000.

Q3. What is Class 0.5 accuracy?

The system reads within ±0.5% of applied force per ISO 7500-1.

Q4. How often should it be calibrated?

Annually by an accredited lab, with semi-annual verification checks.

Q5. Can it perform compression tests?

Yes — installing compression platens enables ASTM D695 testing on the same machine.

VIII. Maintenance Essentials

Wipe columns daily; apply NLGI-2 lithium grease to ball screws weekly; perform monthly zero-checks; schedule annual CNAS-traceable calibration to maintain ISO 17025 compliance.

Conclusion

Five decisive takeaways: prioritize accuracy over capacity inflation, leave 3–10× capacity margin, choose servo over stepper drives, value software longevity, and remember that after-sales service determines true cost of ownership. A well-chosen computerized double column tensile testing machine delivers decades of traceable, defensible results for your laboratory.
