Product description

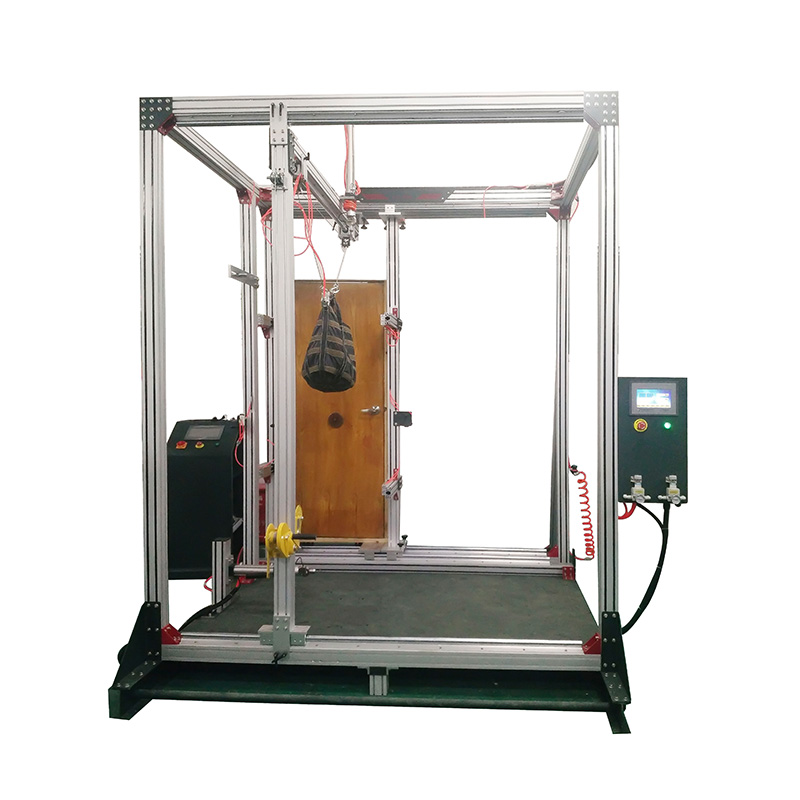

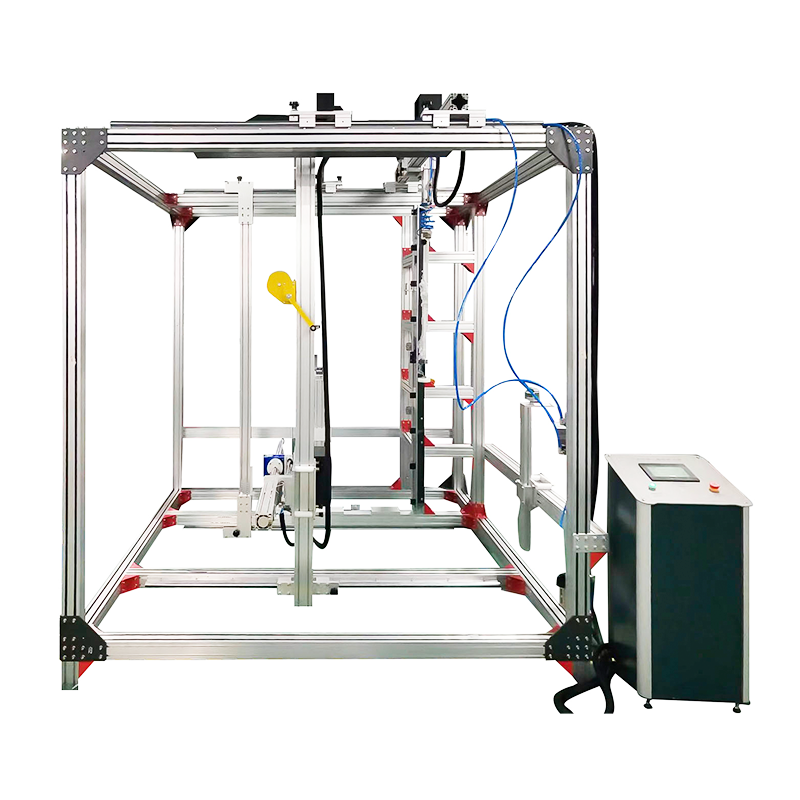

Apply a vertical static load force at the designated positions on the top and bottom of the door leaf and detect its deformation. On one or several estimated weak areas predetermined on the surface of one side of the door leaf, a soft heavy object is used to conduct an impact test perpendicularly to the plane of the door leaf to examine its damage condition.
Technical parameters for machine
1. Vertical cylinder: Output force 30-200Kg, stroke: 500mm.
2. Horizontal cylinder: Output force 30-200 kg, stroke: 300mm
3. Control mode: Touch screen +PLC
4. Door leaf fixation method: Pneumatic
5. Deformation: Digital displacement gauge, 0-50mm, accuracy 0.1mm
6. Machine structure: Aluminum profiles
7. Power supply: AC220V nGas source: Stable gas source of 7kgf/cm ² or above
8. Machine dimensions: 1800 (length) *2500 (width) *2500mm (height)
Technical parameters for soft heavy object impact
1. Sandbag: 30Kg
2. Impact position: Adjustment of the upper and lower motors
3. Impact method: Pneumatic snap-on release
Comply with the standards and terms
GBT 29049-2012 Vertical Load Test for the Entire Door
GBT 29530-2013 Determination of Static Distortion Resistance Performance of Swing Doors and Revolving Doors
GBT 14155-2008 Impact Test on Soft and Heavy Objects for the Entire Door
Category | Standard name | Standard clauses |
Vertical load test of the entire door | GB/T 29049-2012 | 6.0 Test Steps (Vertical Load Test) |
Determination of the static distortion resistance performance of swing doors and revolving doors | GB/T 29530-2013 | 4.0 Test Steps (Static Distortion Resistance Performance Test) |
The impact test of the entire door on soft and heavy objects | GB/T 14155-2008 | 6.0 Test Procedures (Impact Test of Soft and Heavy Objects) |
