Product Details

Product description

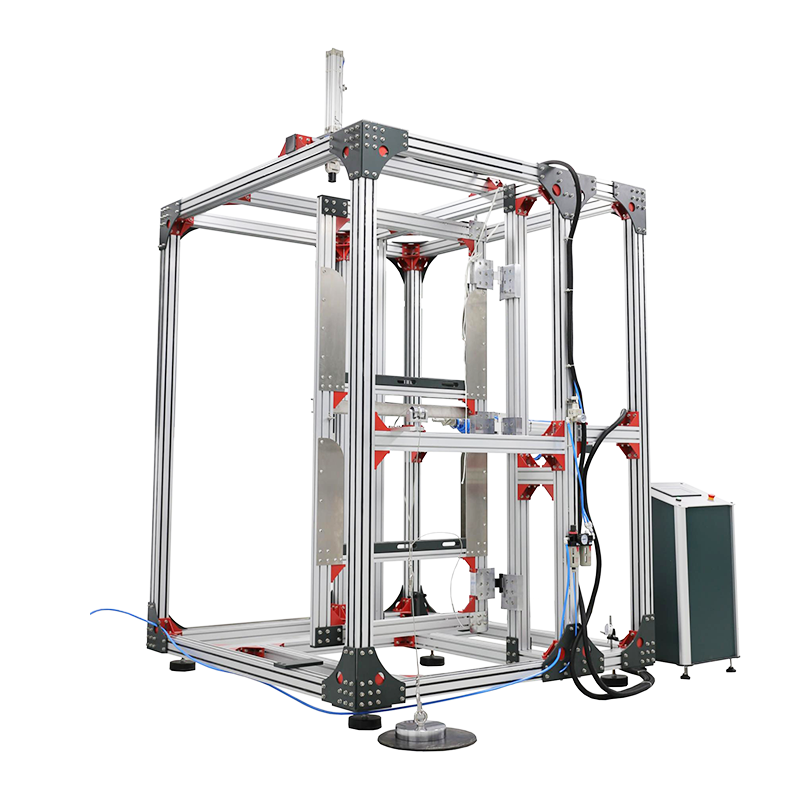

Simulate the actual usage state, repeatedly turn it on and off to test its rotational performance.

Technical parameters

1. Structure: Aluminum profile frame;

2. Function: Single station for testing door or window sashes

3. Transmission mode: Cylinder;

4. Torsion Angle: 0-90 degrees;

5. Speed: 4-6 times per minute;

6. Sensor: 200KG

7. Load capacity: 10KG each, 20 units, totaling 200KG load.

8. Simulated door leaf size: 1000mm wide × 2000mm high,1 piece;

Or simulate the size of the door leaf: 900mm wide × 2300mm high,1 piece;

Or simulate the window sash size: 1300mm wide × 1200mm high,1 piece;

Or simulate the size of the window sash: 1550mm wide × 1400mm high,1 piece;

Or simulate the window sash size: 750mm wide × 1200mm high,1 piece;

(Standard configuration includes one door or one window)

9. Control mode: Touch screen +PLC

10. Power supply: AC220V, 50HZ.

Comply with the standards and terms

Category	Standard name	Standard clauses
Building door and window hardware hinges	JG/T 125-2017	6.4.4 Repeated opening and closing
Building door and window hardware hinges	JG/T 125-2017	6.4.5 Suspended end lifting weight
Building door and window hardware hinges	JG/T 125-2017	6.4.6 Impact on the opening
Building door and window hardware hinges	JG/T 125-2017	6.4.7 Hitting an obstacle
