Door and window testing machine

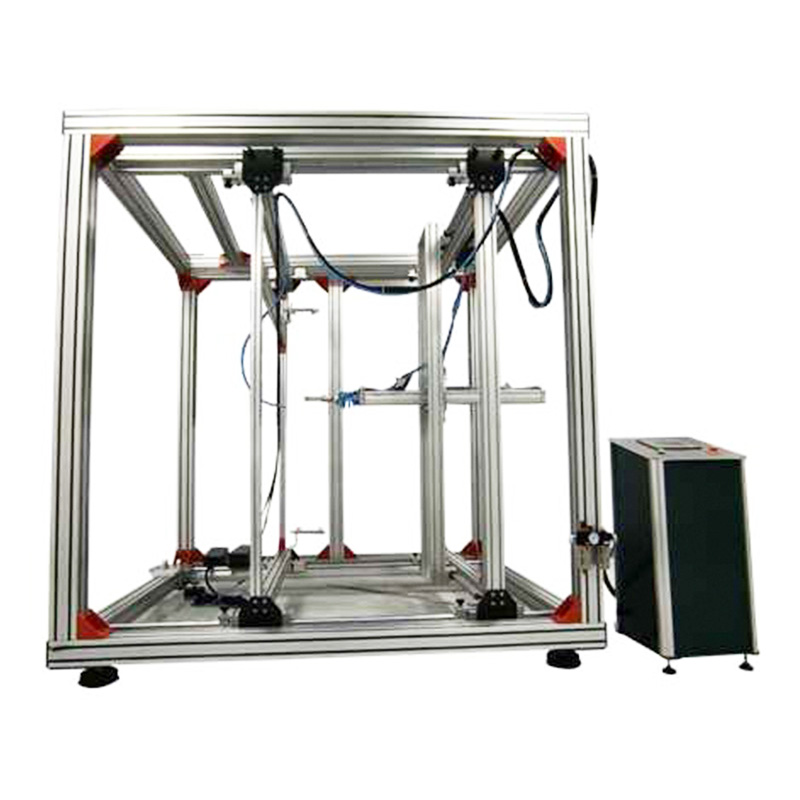

Sliding brace and brace durability testing machine
  • Short Description
    This machine is suitable for conducting durability tests on finished doors with pulleys. Connect the sliding door of the finished furniture with a pulley device to the instrument. Simulate the situation during normal use to repeatedly open and close the pulley and conduct durability tests. After a certain number of cycles, check whether the pulley is damaged or has other conditions that affect its use.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is suitable for conducting durability tests on finished doors with pulleys. Connect the sliding door of the finished furniture with a pulley device to the instrument. Simulate the situation during normal use to repeatedly open and close the pulley and conduct durability tests. After a certain number of cycles, check whether the pulley is damaged or has other conditions that affect its use.


Product features

The whole machine is aesthetically pleasing, with no exposed moving parts and is easy to operate.


Technical parameters

1. Machine dimensions: Length 2200* Width 1760* height 2300mm;

2. Frame: It adopts a high-strength aluminum alloy profile frame;

3. Control mode: Controlled by PLC and module units, cylinders, controllers, etc.

4. Display system: 7-inch human-machine interface;

5. Test simulation window: Swing opening, 570 mm wide * 1200mm high,1 piece; 380* wide

1200mm tall, 1 piece;

6. Window loading weight: Swing opening, 28 kilograms /23 kilograms, embedded weights

Form (30 kilograms, as a gift)

7. Sensor: 500KG adjustable;

8. Test device: Repeatedly opening and closing test 1 cylinder; Clearance test for 2 cylinders;

Two cylinders with rigidity and anti-destructive properties; The suspended end weighs one cylinder. "自定" 可 以 翻 译 为 "self-determination"

The force, opening and closing force and operating force are accomplished by the push-pull force gauge.

9. Test times: 0-999,999 times can be set;

10. Test speed: 0 to 10 times /min can be set arbitrarily;

11. Shutdown mode: The machine will automatically shut down when the test count is reached, and it will also automatically stop when the sample is damaged

Shut down; One set of test fixtures;

12. Air source pressure: 0.4-0.6MPa.
