Product description

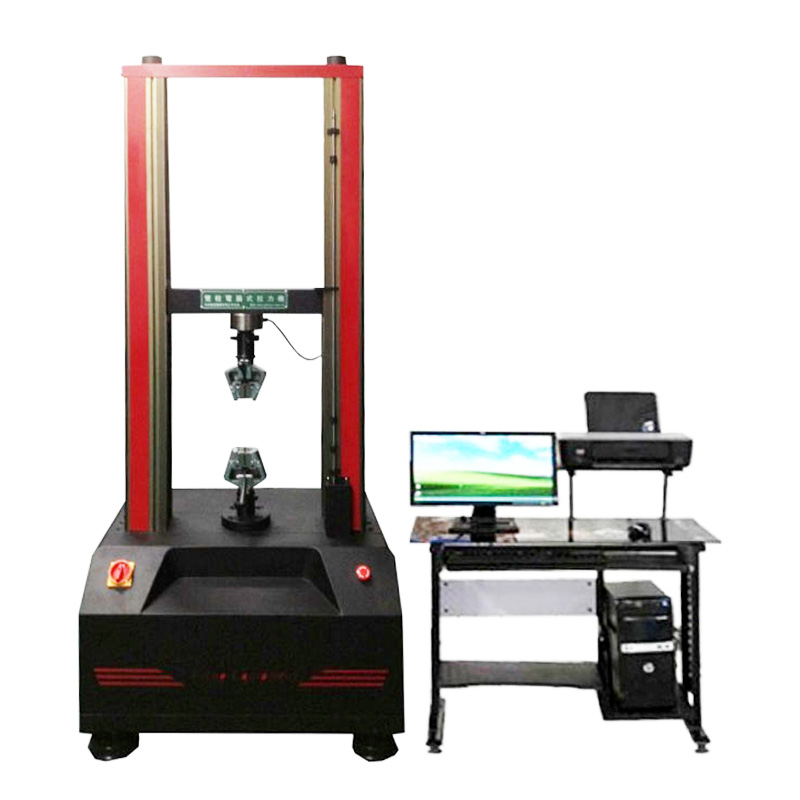

This series of tensile testing machines adopts Load Cell induction digital display, which can accurately test the tensile strength in both longitudinal and transverse direction, as well as the mechanical properties such as tensile, compressive, bending, shearing, tearing and peeling. It can also achieve multi-closed-loop tests such as constant stress, constant strain, creep and relaxation. After being equipped with special devices, it can also complete test items such as torsion and cupping. This machine is suitable for performance tests such as tensile, peel, tear, heat sealing, fiber, silk fiber and adhesion of products like steel, fasteners, fabrics, plastic films, composite films, woven bags, flexible packaging materials, adhesives, adhesive tapes, self-adhesive labels, rubber and paper. Different tests can be carried out in combination with different fixtures.
Conform to the standard
GB/T 17657-2013- Requirements of relevant standards for three-point bending (static bending strength).
Technical parameters
1. Maximum tensile force LOAD element LOAD: 5 tons
2. Unit switching: All kinds of international units can be switched freely
3. Resolution: 1/100,000, accuracy grade 0.5
4. It can perform tensile force, extension, stress, strain, and display curves, holding pressure, and bending
5. Maximum stroke: 1500mm(including fixtures), left and right span: 500mm(standard equipment)
6. Protection device: It is equipped with upper and lower travel control switches, and the program sets the maximum load, maximum extension, automatic stop, emergency switch. The drive motor is a servo motor, and the speed and travel are all controlled by a computer. Different traditional AC and DC motors are controlled by voltage and need to be controlled in different sections, resulting in relatively poor control accuracy.
7. Test speed: 0.001 to 500mm/min
8. Power Supply: 1∮,AC220V,15A
9. Standard fixtures: One set of GB/T 17657-2013- Three-point bending fixtures (static bending strength)
10. Function: The computer software automatically calculates the test results for tensile, tear, peel, bending, etc., and displays the curve graph
11. Force value accuracy: within ±0.3%
12. Support double columns: Made of high-grade aluminum alloy
Performance characteristics
1. Excellent appearance design. Our company has been paying great attention to the appearance and design of products for many years, and has developed many products that can rival foreign models. The surfaces of all these products are electrostatically sprayed.
2. Key components. It adopts internationally renowned brands, such as Panasonic servo systems and nano-controlled photoelectric encoders, etc.
3. The arc tooth type synchronous belt reduction system features high efficiency, long service life, low noise and maintenance-free advantages.
4. High-precision ball screws are adopted for loading, ensuring smooth loading, long service life of the testing machine, good long-term stability and energy conservation.
5. Multiple protective measures. For example: various electrical protections in the power link, overload and over-displacement protection in the software part, mechanical forced safety limit protection, etc.
6. Simple, reliable and powerful user operation interface.
7. The printer can print out the tensile curve displayed on the computer without the need for an additional X.Y recorder. The program can be operated under WINDOWS with mouse control, and the control screen can be formatted. The operation is convenient with both Chinese and English displays.
When conducting batch tests, the software can automatically store the test results of one sample, automatically move on to the next test, and automatically complete the entire batch of tests.
9. It has a curve superposition function, allowing the curves of the same group of tests to be superimposed and compared in multiple colors.
10. It is equipped with an overload protection and automatic shutdown function, and can automatically determine the fracture of the sample and shut down automatically.
11. Real-time measurement and display of test force, peak value, displacement, deformation and other signals; Real-time acquisition and control have been achieved under the Win2000 and WinXP mode platforms. And precise timing and high-speed sampling have been achieved.
12. Hierarchical permission management: Operators of different levels have different operation permissions, and the menus and other contents they can operate also vary. The operation of ordinary operators is simple, convenient and fast. The operation of the management personnel has added professional operation contents such as adjustment, effectively protecting the entire system.
13. In addition to the random basic configuration, different materials can be customized with different forms of fixtures. The fixtures are made of high-quality alloy steel, precisely heat-treated, strong and durable, with a novel appearance design and reasonable structure. The surface is treated for rust prevention and has interchangeability. Users can choose fixtures according to their own needs.
14. Simple, reliable and powerful user operation interface.
