Tensile testing machine

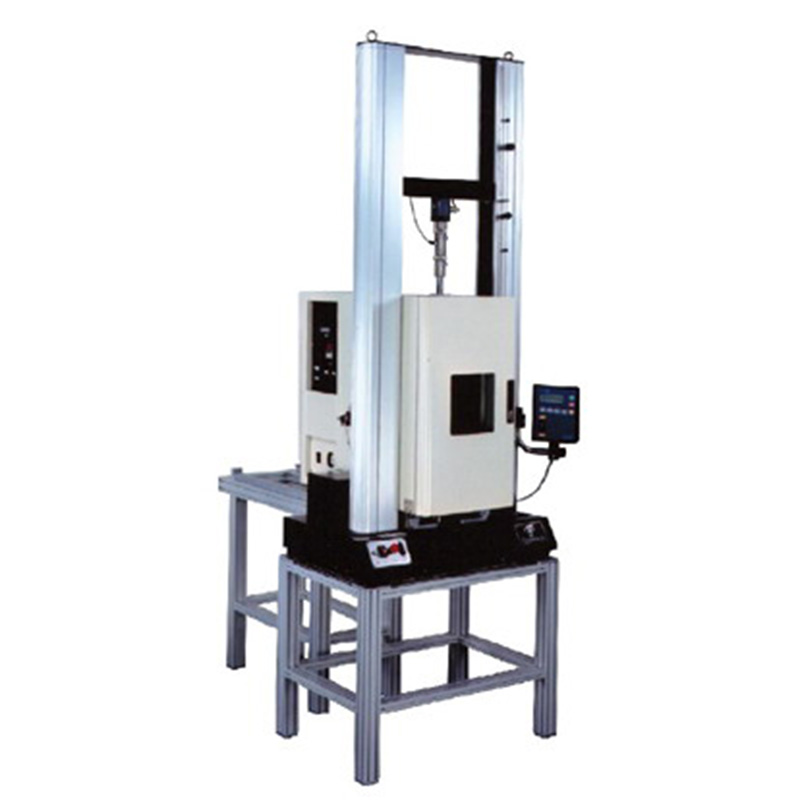

High and low temperature electronic tensile testing machine
  • Short Description
    This series constant pressure tester, the use of the Load Cell induction digital display, can accurately test the longitudinal and transverse tensile strength, tensile, compression, bending, shear, tear, peel test for mechanical properties of, also can realize constant stress, constant strain, creep, relaxation and closed loop test, after the special device can complete the reverse, cupping test items, etc. Different fixture can be used for different tests.
  • SEND INQUIRY NOW
Product Details

Product description

This series constant pressure tester, the use of the Load Cell induction digital display, can accurately test the longitudinal and transverse tensile strength, tensile, compression, bending, shear, tear, peel test for mechanical properties of, also can realize constant stress, constant strain, creep, relaxation and closed loop test, after the special device can complete the reverse, cupping test items, etc. Different fixture can be used for different tests.


Product Parameters

1. Maximum tension LOAD: 500kg
2. Resolution: 1/100,000
3. Unit switching: all kinds of international
4. Precision range of tension pressure: ± 3/1000
5. Test speed: no segment controlled by computer, the maximum speed is 50 ~ 700mm/min, any setting (or according to customer requirements)
6. Displacement decomposition degree: 0.001mm
7. Can do tension, extension, stress, strain, and show the curve, holding pressure, bending
8. Maximum stroke: 1000mm(including fixture), width: 500mm
9. Protection device: including up and down stroke control switch, the program sets the maximum load, maximum extension, automatic stop emergency switch, the drive motor is a servo motor, completely controlled by the computer speed and travel, different from the traditional AC, DC motor controlled by voltage, need to be controlled in different sections.
10. Test space: 35*35*35cm (W*D*H)
11. Temperature controllable range: normal temperature -250ºC, set at will, automatic alarm for arrival time.
12. Control mode: P.I.D. automatic temperature calculation
13. Power supply: 1§,220V,15A
14. Features: the printer can print the pressure curve displayed by the computer, without additional x.y recorder. The program can be operated under WINDOWS to control the mouse and control the format of the screen
15. Fixture: one set of compression fixture (compression test)
16. Functions: compress, tear, peel, and other test results
17. Motor: servo motor
18. Software system: universal high-precision system, independently developed by leto
19. Support double column: advanced aluminum alloy material
20. Main engine color: white column, black frame
21. Screw: ball screw


Conform to the standard

According to GB 13022, GB 8808, GB 1040, GB 4850, GB 7753, GB 7754, GB 453, GB/T 17200, GB/T 16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ISO 37, JIS P8113, QB/T 2358, QB/T 1130,ASTM D5748,ASTM D638,ASTM D5748D882
