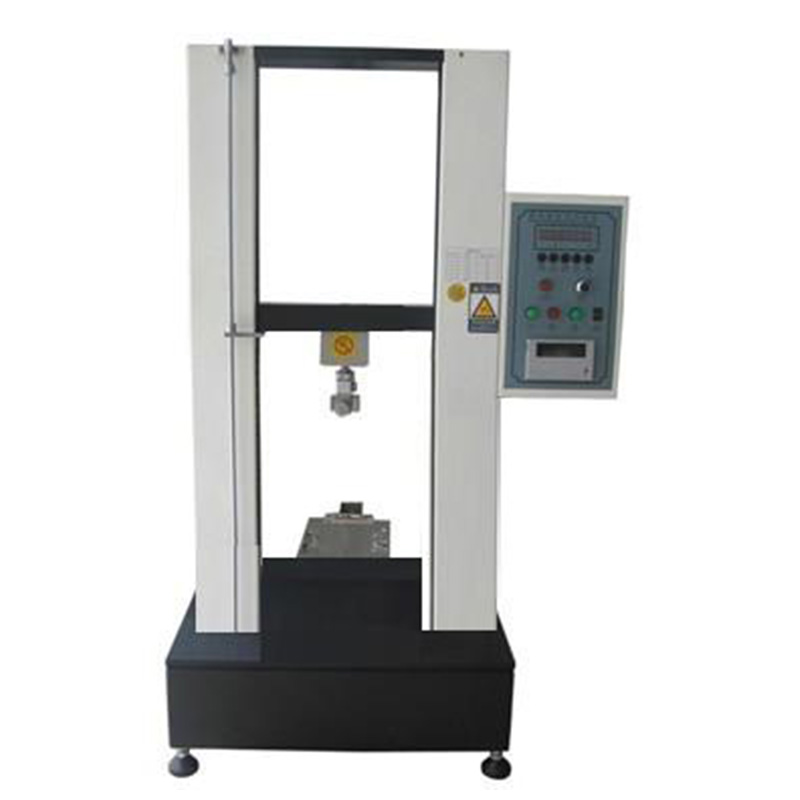

Tensile testing machine

Electronic full-function tensile testing machine
  • Short Description
    The machine can be used to test all kinds of materials, such as tension, pressure, bending resistance, ring pressure, vertical pressure, adhesive strength, etc.
  • SEND INQUIRY NOW
Product Details

Product description

The machine can be used to test all kinds of materials, such as tension, pressure, bending resistance, ring pressure, vertical pressure, adhesive strength, etc.


Conform to the standard

Comply with GB, JIS, ASTM, DIN, EN, BS, UL, AATCC standards.


Product parameters

1. Capacity selection: 10kg, 20kg, 50kg, 100kg, 200kg
2. Unit switching: kg, g, Lb and N can be arbitrarily converted
3. Load refactorization: 1/1000
4. Load accuracy: ±1%
5. Maximum stroke: 300mm
6. Test speed: 10 ~ 250 mm/min or 50 ~ 500 mm/min
7. Effective width: 300mm
8. Display function: test value, maximum value or rupture value and average value can be displayed
9. Motor: 90W
10. Volume: about 600*250*1050mm
11. Weight: about 35Kg
12.Power supply: 1 wire,AC220V,1A
13. Attachment: one set of stretching fixture


Product features

1. Double-column structure: stable frame structure, easy to operate, pressure test;
2. Automatic stop: the sample breaks, and the test automatically stops transmission;
3. Indicator calibration: accurate calibration of the system's experimental force;
4. Display mode: it can be displayed digitally and printed with a micro printer;
5. Automatic zeroing: after the microcomputer receives the test instruction, the system automatically zeroing;
6. Limit protection: with automatic travel protection function;
7. Overload protection: with overload automatic stop protection function.
