Tensile testing machine

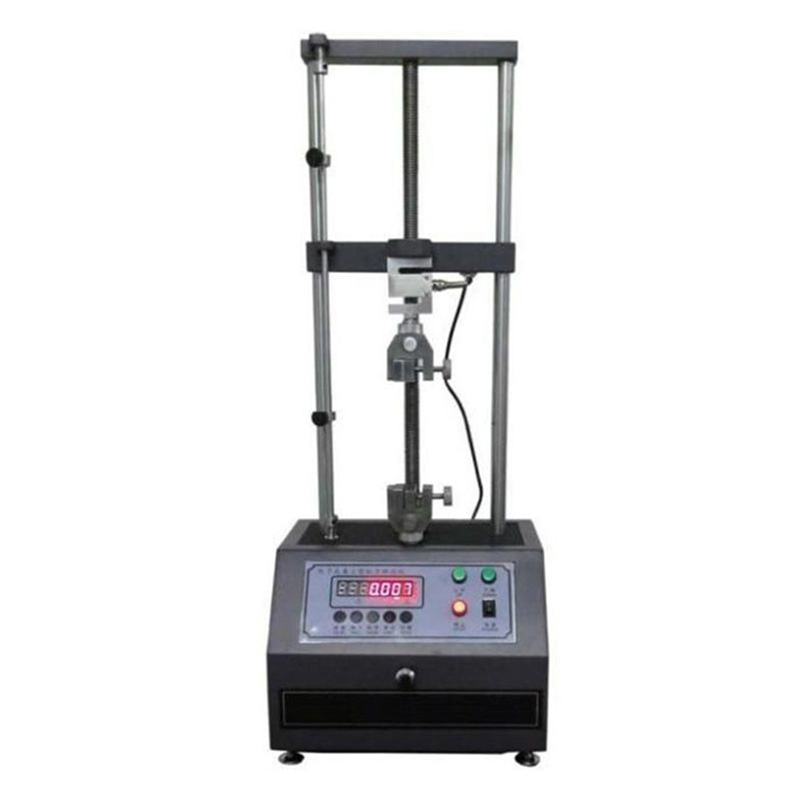

Electronic desktop tensile testing machine
  • Short Description
    Replace this machine is widely used, different jig to test various materials and sole, tires, rubber hose, triangle belt, plastic sheeting, plastic packaging films, the force that press a gram, FRP, ABS, EVA, PV or dumbbell specimens finished and semi-finished products such as tensile strength, elongation, tearing adhesive emphatically, tensile stress and stripping, shear, rubber and metal stick relay.
  • SEND INQUIRY NOW
Product Details

Product description

Replace this machine is widely used, different jig to test various materials and sole, tires, rubber hose, triangle belt, plastic sheeting, plastic packaging films, the force that press a gram, FRP, ABS, EVA, PV or dumbbell specimens finished and semi-finished products such as tensile strength, elongation, tearing adhesive emphatically, tensile stress and stripping, shear, rubber and metal stick relay.


Conform to the standard

Comply with GB, JIS, ASTM, DIN, EN, BS, UL, AATCC standards.



Product parameters

1. Capacity selection: 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 50kg
2. Unit switching: kg, g, Lb and N can be arbitrarily converted
3. Load refactorization: 1/1000
4. Load accuracy: ±1%
5. Maximum stroke: 300mm
6. Test speed: 10 ~ 250 mm/min or 50 ~ 500 mm/min
7. Monitor: test value, maximum value or rupture value can be displayed
8. Motor: 40W
9. Volume: about 430*530*530mm
10. Weight: about 35Kg
11. Power supply: 1 wire,AC220V,1A


Product features

1. Double-column structure: stable frame structure, easy to operate, pressure test;
2. Automatic stop: the sample breaks, and the test automatically stops transmission;
3. Indicator calibration: accurate calibration of the system's experimental force;
4. Display mode: it can be displayed digitally and printed with a micro printer;
5. Automatic zeroing: after the microcomputer receives the test instruction, the system automatically zeroing;
6. Limit protection: with automatic travel protection function;
7. Overload protection: with overload automatic stop protection function.
