Tensile testing machine

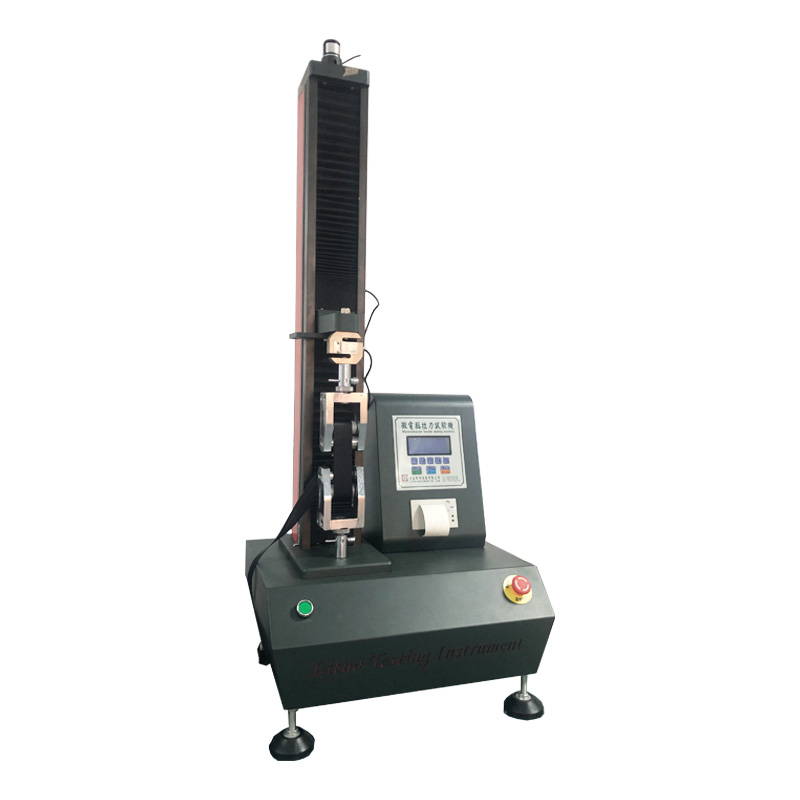

Single Column Table Tensile Test Machine
  • Short Description
    This series of tensile strength testing machine, using Load Cell induction digital display, can accurately test the tensile strength and fracture strength of textile, plastic and rubber, built-in multi-country standard testing mode can also be set according to requirements.
  • SEND INQUIRY NOW
Product Details

Product description

This series of tensile strength testing machine, using Load Cell induction digital display, can accurately test the tensile strength and fracture strength of textile, plastic and rubber, built-in multi-country standard testing mode can also be set according to requirements.


Product parameters

1. Capacity selection: 10kg, 20kg, 50kg, 100kg, 200kg, 500kg
2. Unit switching: kg, g, Lb and N can be arbitrarily converted
3. Load refactorization: 1/10,000
4. Load accuracy: ±0.5%
5. Maximum stroke: 600mm
6. Speed input mode: knob type
7. Effective width: unlimited
8. Test speed: 10 ~ 250 mm/min or 50 ~ 500 mm/min
9. Speed accuracy: ±1%
10. Displacement decomposition degree: 0.001mm
11. Display: test value, maximum value or rupture value can be displayed
12. Motor: AC variable frequency motor
13. Volume: about 500*470*1280mm
14. Weight: about 75Kg
15. Power supply: 1 wire,AC220V,3A
16. Annex: one set of stretching fixture


Conform to the standard

Comply with GB, JIS, ASTM, DIN, EN, BS, UL, AATCC standards.


Product features

1. Double-column structure: stable frame structure, easy to operate, pressure test;
2. Automatic stop: the sample breaks, and the test automatically stops transmission;
3. Indicator calibration: accurate calibration of the system's experimental force;
4. Display mode: it can be displayed digitally and printed with a micro printer;
5. Automatic zeroing: after the microcomputer receives the test instruction, the system automatically zeroing;
6. Limit protection: with automatic travel protection function;
7. Overload protection: with overload automatic stop protection function.
