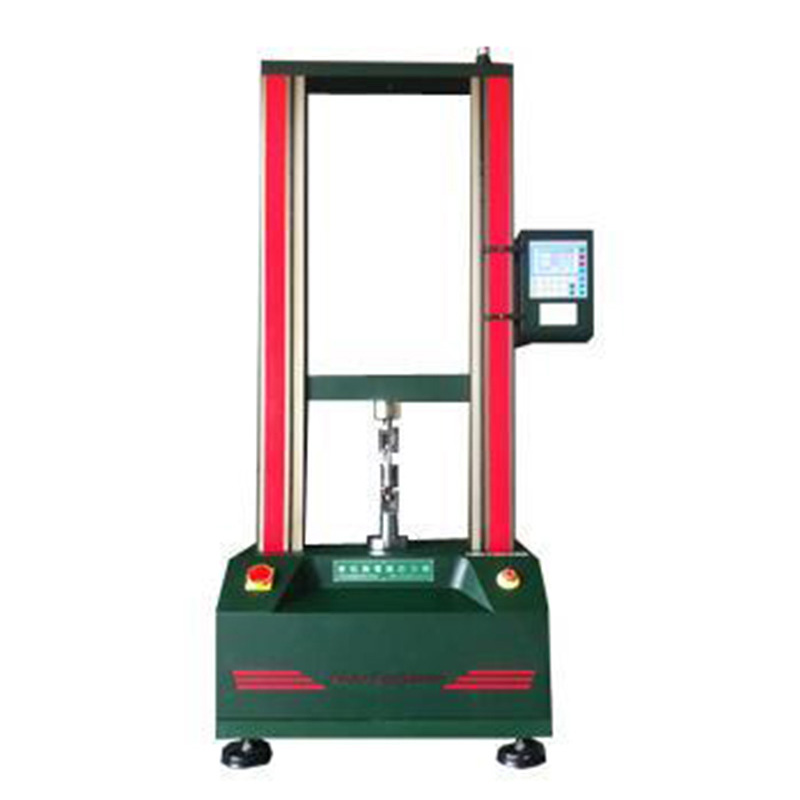

Tensile testing machine

Microcomputer tensile testing machine | Electronic tensile testing machine
  • Short Description
    This series of tensile strength tester adopts load cell induction digital display to accurately test the longitudinal and transverse tensile strength and fracture strength of the paper.
  • SEND INQUIRY NOW
Product Details

Product description

This series of tensile strength tester adopts load cell induction digital display to accurately test the longitudinal and transverse tensile strength and fracture strength of the paper.


Product Parameter

1. Capacity selection: 10kg, 20kg, 50kg, 100kg, 200kg, 500kg, 1000kg, 2000kg
2. Unit switching: kg, g, Lb and N can be arbitrarily converted
3. Load refactorization: 1/10,000
4. Load accuracy: ±1%
5. Maximum stroke: 1000mm
6. Speed input mode: 10 ~ 250 mm/min or 50 ~ 500 mm/min
7. Displacement decomposition degree :(optional)Under 0.01mm
8. Display: LCD display
9. Motor: AC variable frequency motor
10. Volume: about 1140*500*1821mm
11. Weight: about 180Kg
12. Power supply: 1 wire,AC220V,10A
13. Attachment: one set of stretching fixture


Conform to the standard

Comply with GB, JIS, ASTM, DIN, EN, BS, UL, AATCC standards.


Product features

1. Double-column structure: stable frame structure, easy to operate, pressure test;
2. Automatic stop: the sample breaks, and the test automatically stops transmission;
3. Indicator calibration: accurate calibration of the system's experimental force;
4. Display mode: it can be displayed digitally and printed with a micro printer;
5. Automatic zeroing: after the microcomputer receives the test instruction, the system automatically zeroing;
6. Limit protection: with automatic travel protection function;
7. Overload protection: with overload automatic stop protection function.
