Tensile testing machine

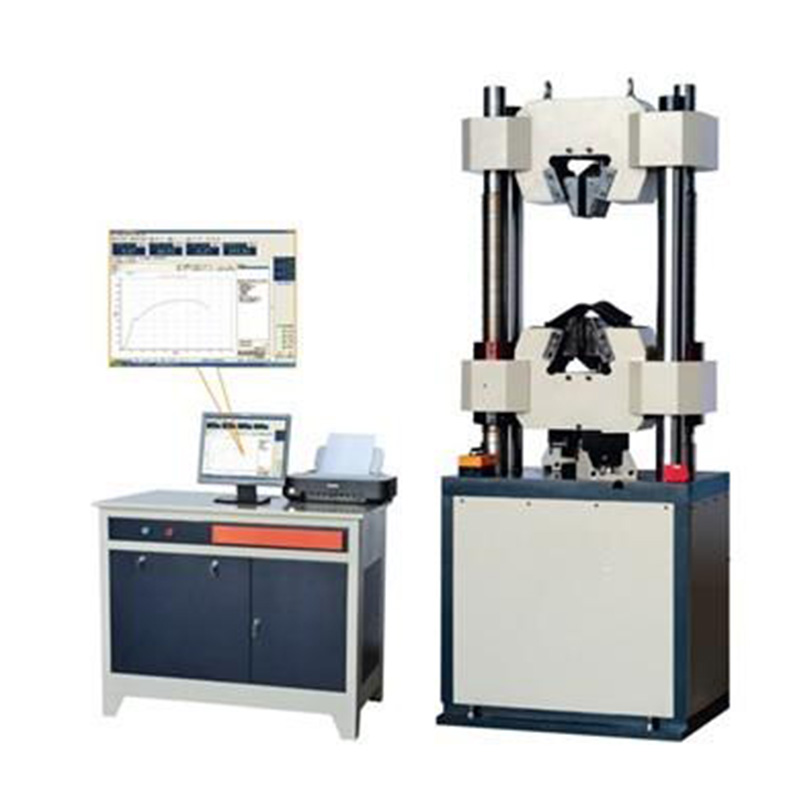

Hydraulic computerized universal material tensile testing machine | Microcomputer screen display universal testing machine
  • Short Description
    Mainly used for tensile, compression, bending and other mechanical properties of metallic and non-metallic materials. The machine is equipped with computer, printer, electronic extensometer, photoelectric encoder and general test software, which can accurately measure the mechanical properties of metal materials such as tensile strength, yield strength, specified non-proportional elongation strength, elongation, elastic modulus and so on. The test results can be inquired and printed (force-displacement, force-deformation, stress-displacement, stress-deformation, force-time, and deformation-time) six kinds of curves and related test data, with the function of software self-inspection and fault self-diagnosis, please refer to the software description for details. It is the ideal testing equipment for industrial and mining enterprises, scientific research units, colleges and universities, engineering quality supervision stations and other departments.
  • SEND INQUIRY NOW
Product Details

Product description:

Mainly used for tensile, compression, bending and other mechanical properties of metallic and non-metallic materials. The machine is equipped with computer, printer, electronic extensometer, photoelectric encoder and general test software, which can accurately measure the mechanical properties of metal materials such as tensile strength, yield strength, specified non-proportional elongation strength, elongation, elastic modulus and so on. The test results can be inquired and printed (force-displacement, force-deformation, stress-displacement, stress-deformation, force-time, and deformation-time) six kinds of curves and related test data, with the function of software self-inspection and fault self-diagnosis, please refer to the software description for details. It is the ideal testing equipment for industrial and mining enterprises, scientific research units, colleges and universities, engineering quality supervision stations and other departments.


Conform to the standard

It meets the relevant requirements of the national standard GB/ t228.1-2010 "method of tensile test for metallic materials at room temperature" and GB/ t7314-1987 "method of metal compression test".


Technical parameters

1. Maximum test force: 60 tons
2. Deformation accuracy: ±0.5%FS
3. Maximum distance between two points: 450mm
4. Relative error of test force: ≤±1%
5. Test force resolution: 0.01kn
6. Motor power of pillar moving up and down: 0.75kw
7. Maximum movement speed of piston: 50mm/min
8. Maximum tensile test space: 550mm
9. Maximum compression space: 380mm
10. Piston stroke: 150mm
11. External dimensions of the main engine: about 750*580*1950mm
12. Clamping mode: automatic clamping
13. Net weight: about 1900Kg


Product features

1. Safety protection device:
A. When the test force exceeds 3% of the maximum test force, the oil pump motor will stop for overload protection;
B. When the piston rises to the upper limit position, the stroke protection and the oil pump motor stop.
2. Control system:
A. Support the tests of tension, compression, shear and bending;
B. Support open editing experiments, editing standards and editing steps, and support export and import experiments, standards and steps;
C. Support the customization of test parameters;
D. Adopt the open EXCEL report form to support users' custom report format;
E. Flexible and convenient query printing test results, support printing multiple samples, and customize sorting printing items;
F. The program has powerful test and analysis functions;
G. The program supports hierarchical management of two levels (administrator, tester) of user management rights.
