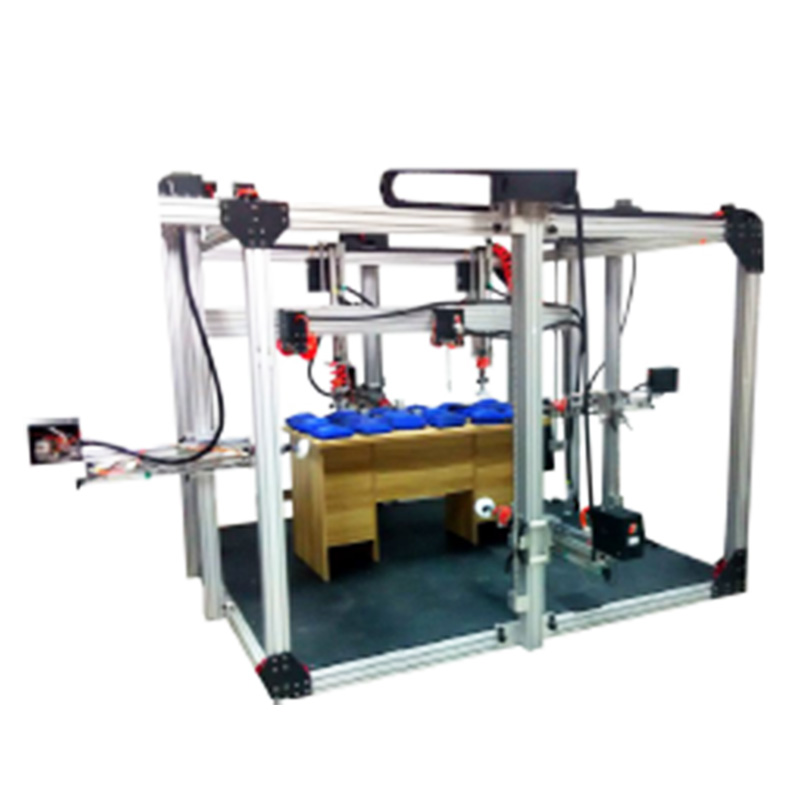

Cabinet Mechanical Performance Testing Machine
  • Short Description
    This machine is mainly used for testing the strength and durability of various cabinets. The cabinet strength durability tester can be used to test the vertical and horizontal static loads, shelf support strength, bottom plate strength, drawer structure strength, drawer and slide strength, drawer sudden closing, sliding door strength, sliding door sudden opening, sliding door and lateral opening and closing rolling door sudden closing, and ultimate strength of suspended cabinets (racks)
  • SEND INQUIRY NOW
Product Details

Specification parameters:

External dimensions

Length: 2500mm; Width: 2500mm; Height: 2700mm or customized according to customer requirements

Power supply

 Single phase AC220V with reliable grounding

 Gas source

 External, 0.3MPa~0.6 MPa

 Power

 Up to 5KW


Product Description:
This machine is mainly used for testing the strength and durability of various cabinets. The cabinet strength durability tester can be used to test the vertical and horizontal static loads, shelf support strength, bottom plate strength, drawer structure strength, drawer and slide strength, drawer sudden closing, sliding door strength, sliding door sudden opening, sliding door and lateral opening and closing rolling door sudden closing, and ultimate strength of suspended cabinets (racks)


Control system:
This machine adopts control components such as PLC, computer, servo motor, force sensor, positioning cylinder, frequency converter, and professional testing programs to form the control system.


Compliant with standards:
1. Bathroom furniture: GB/T24977-2010 6.6.1 Floor standing countertop vertical static load
2. Bathroom furniture: GB/T24977-2010 6.6.4 Ultimate strength of suspended cabinets (frames)


Technical parameters:
1. Working voltage: single-phase AC220V, with reliable grounding.
2. Working pressure: external, 0.3MPa~0.6 MPa
3. Power consumption: up to 5KW
4. Upper computer: Touch screen (optional computer)
5. Load: 0-500kg
6. Testing device: a single testing device in the vertical direction (can move left, right, front, and back)
7. Test sample: Maximum dimensions: length 1600 * height 1900 * width 800mm
8. Loading pad: a rigid disc with a diameter of 100mm and rounded edges of 12mm
9. Appearance material: High strength aluminum profile frame
10. Overall dimensions: length: 2500mm; Width: 2500mm; Height: 2700mm or customized according to customer requirements
