Hardware&Accessories Testing Machine

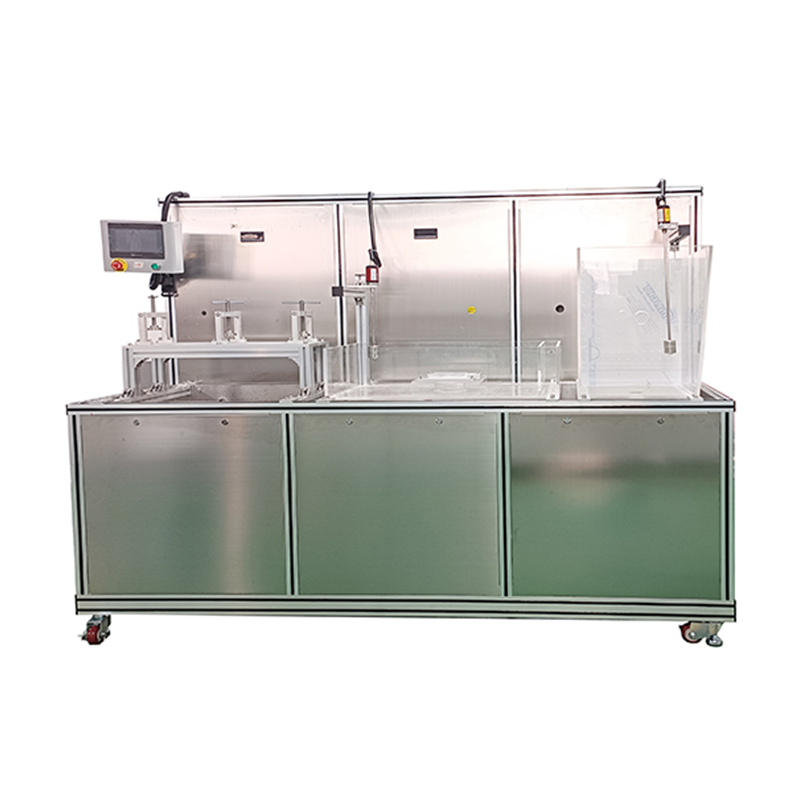

Comprehensive performance testing machine for floor drain and drainage accessories
  • Short Description
    This machine is mainly used for testing the pressure resistance, drainage flow, anti-backflow and sealing of floor drains and sewers, as well as the flow and sealing performance of drainage from washbasin accessories and bathtub accessories.
  • SEND INQUIRY NOW
Product Details

Product description:
This machine is mainly used for testing the pressure resistance, drainage flow, anti-backflow and sealing of floor drains and sewers, as well as the flow and sealing performance of drainage from washbasin accessories and bathtub accessories.


Control system:
This machine is composed of control components such as a touch screen, PLC, servo motor, force sensor, cylinder, etc., as well as professional test programs, forming a control system.


Comply with standards:
Floor drain GB/T 27710-2011 7.5.2 Water pressure resistance performance
Sealing performance of floor drain GB/T 27710-2011 7.5.3
Floor leakage GB/T 27710-2011 7.5.4 Anti-overflow performance
Floor drain GB/T 27710-2011 7.5.5 Drainage flow rate
Drainage accessories JC/T 932-2013 5.7.2 Flow Performance (Washbasin, Bathtub)
Drainage fittings JC/T 932-2013 6.7.1 Sealing Performance Test (Washbasin, Bathtub)


Technical parameters:

                          Project                                                                 Procurement technical requirements
Test the product rangeFloor drain: Complies with the main items of GB/T 27710-2020
Sewer: Complies with the main items of JC/T 932-2013
Workstation3 Workstations
There is one station in total for the floor drain and the sewer, including pressure resistance, anti-backflow and sealing.
The drainage flow of the floor drain is 1 workstation, and the drainage flow of the bathtub accessories is a total of 1 workstation.
SizeAccording to the actual finished product
Temperature rangeAt room temperature
Power5000W
Environmental conditions1.Temperature: 5ºC to 35ºC
2.Relative humidity: ≤85%
3.Air pressure: 86kPa to 106kPa
Water pumpStatic pressure ranging from 0MPa to 1.0MPa can be provided
Tooling materialsStainless steel + copper + aluminum profiles + plastic + others
Counting accuracyCounting range: 0.1 seconds to 999.99 minutes, timing accuracy: 0.1 seconds
Flowmeter accuracyThe measurement range is 0 to 100L/min, and the accuracy is within 0.1L/min
Digital water pressure display instrumentThe accuracy display is 0.001MPa
Water pressure stabilityWithin ±0.1MPa
                         Material                                                        The thickness of SUS304 stainless steel plate is ≥1.5mm
