Product description

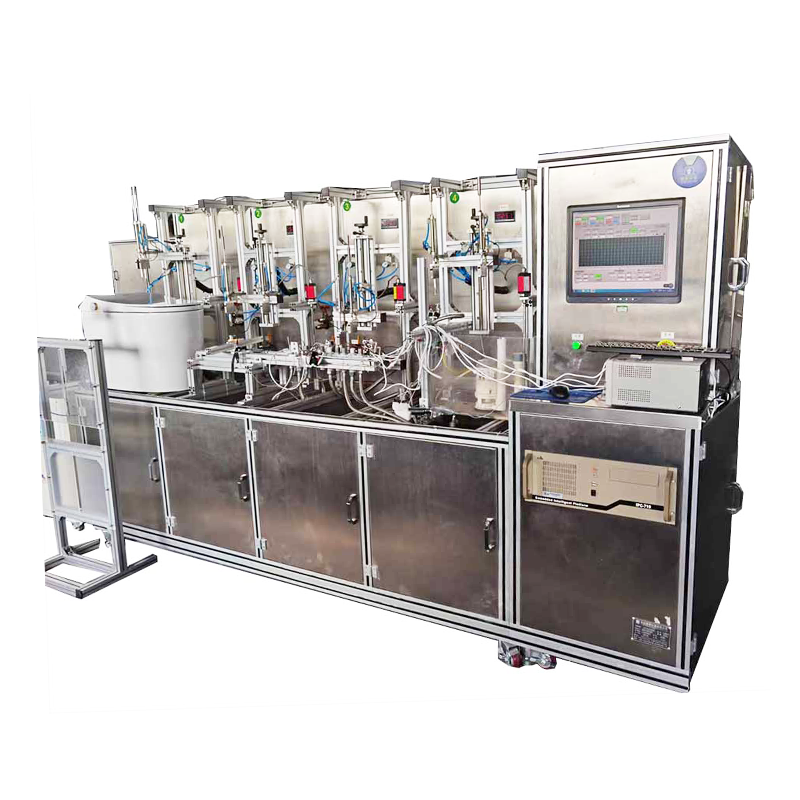

This machine is mainly used for the life test of the inlet valve and the outlet valve.
Control system
This machine is composed of a control system including a touch screen (optional computer), PLC, water pump, cylinder, force sensor and other control components, as well as professional test programs.
Conform to the standard
Gravity flushing device and sanitary ware frame: GB26730-2011 6.16 Durability test
Technical parameters
1. Working voltage: Three-phase AC380V for the water pump and single-phase AC220V for the rest, with reliable grounding.
2. Working air pressure: External,0.3MPa to 0.6 MPa
3. Power consumption: Up to 5KW
4. Test medium: Cold water: External connection (normal temperature water + refrigeration machine)
5. Host computer: Touch screen (optional computer)
6. Test stations: 4 stations
7. Test product scope: Inlet valve, drain valve
8. Outer material: Aluminum profile + aluminum-plastic sealing plate
9. Drive unit: Cylinder + force sensor (10Kg)
10. Water pump: It can provide static pressure of 0.02 to 1.0MPa
11. Overall dimensions: 2750mm; Width: 1200mm Height: 1800mm or customized according to customer requirements
