Product description

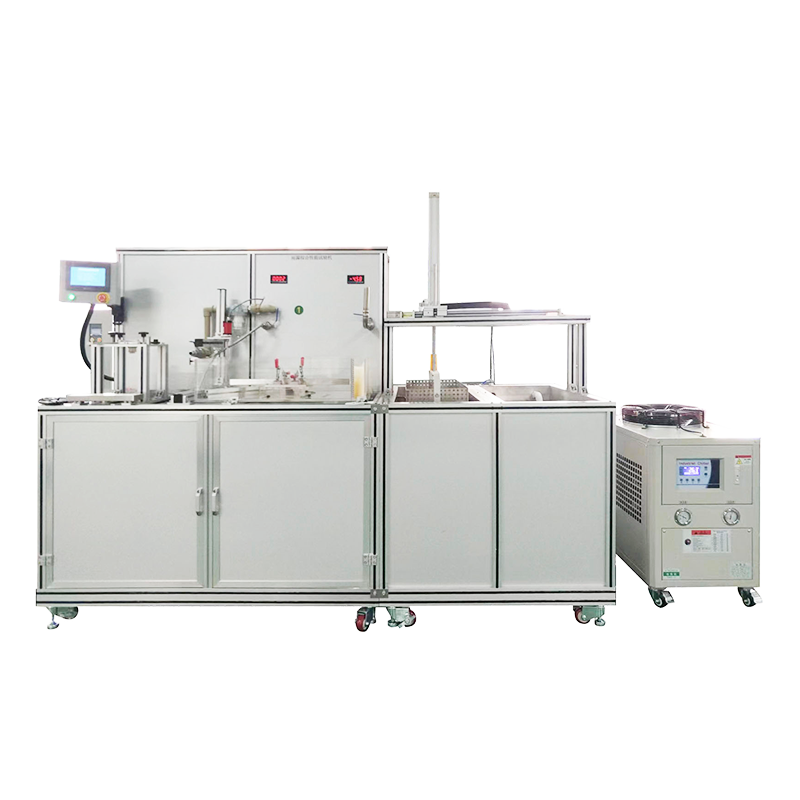

This machine is mainly used for performance testing of floor drains and drainage accessories.
Control system
This machine is composed of control components such as PLC, water pump, servo motor, cylinder, etc., as well as professional test programs, etc., forming a control system.
Conform to the standard
1. Floor drain: GB/T 27710-2011 Floor Drain 7.5.2 Pressure Resistance Performance
2. Floor drain: GB/T 27710-2011 Floor Drain 7.5.3 Sealing Performance
3. Floor drain: GB/T 27710-2011 Floor Drain 7.5.4 Anti-Backflow Performance
4. Floor drain: GB/T 27710-2011 Floor Drain 7.5.5 Drainage Flow
5. Floor drain: GB/T 27710-2011 Floor Drain 7.5.6 Self-cleaning Capacity
Technical parameters
1. Working voltage: Three-phase AC380V for water pump, heating and cooling, and single-phase AC220V for the rest
2. Working air pressure: External,0.3MPa to 0.6 MPa
3. Working pressure: Adjustable from 0.02 to 1.0 MPa
4. Test product scope: Floor drains, drainage accessories
5. Test medium: Normal temperature water
6. Pump flow rate: Under a dynamic pressure of 0.2MPa, it can provide a flow rate of no less than 60L/min
7. Exterior material: Aluminum profile frame + aluminum-plastic sealing plate
8. Power consumption: Up to 5KW
9. Test stations: 3 stations
10. Upper computer: PLC+ touch screen
11. Overall dimensions: Length 2450* Width 1100* Height 1650 (Unit: mm)
