Product description

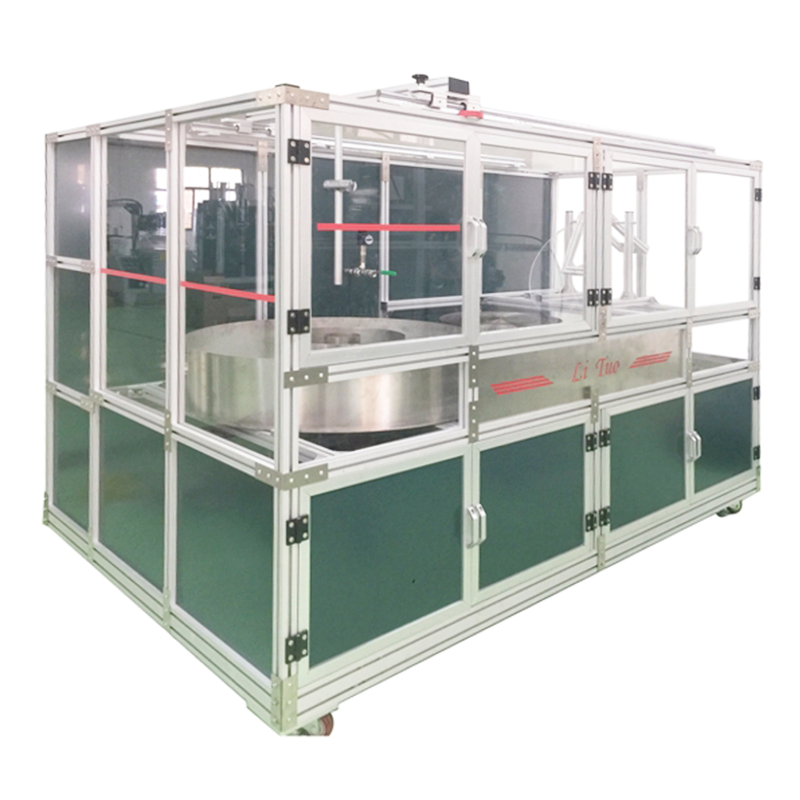

This machine is mainly used for testing the average spray Angle, spray uniformity, spray force and spray collection volume of shower heads.
Control system
This machine is composed of control components such as PLC (computer), water pump, force measurement device, pneumatic valve, etc., as well as professional test programs, forming a control system.
Conform to the standard
GB/T23447-2009, ASME A112.18.1-2012/CSA B125.1-12
Technical parameters
1. Working voltage: Three-phase AC380V
2. Power consumption: Up to 3KW
3. Working air pressure: External,0.5MPa to 0.7MPa
4. Test medium: Normal temperature water to 60℃
5. Working water pressure: Constant pressure variable frequency water supply system. The water pressure can be directly set on the touch screen, with a setting range of 0.05 to 0.4MPa and an accuracy of 0.5 grade
6. Pressure detection accuracy: A 0.5-grade precision pressure sensor is adopted, with a measurement range of 0 to 1.0MPa
7. Overall dimensions: Overall dimensions: Length 4300* Width 1400* Height 1790 (Unit: MM)
8. Exterior material: Aluminum profile frame + aluminum-plastic sealing plate
9. Test stations: 3:1 showerhead spray Angle, 1 showerhead spray uniformity, 1 showerhead spray force
10. Test product range: Shower head
11. Tooling materials: Stainless steel + copper +POM
12. Normal temperature water tank: Net capacity over 100L, with protective device included
