Product description

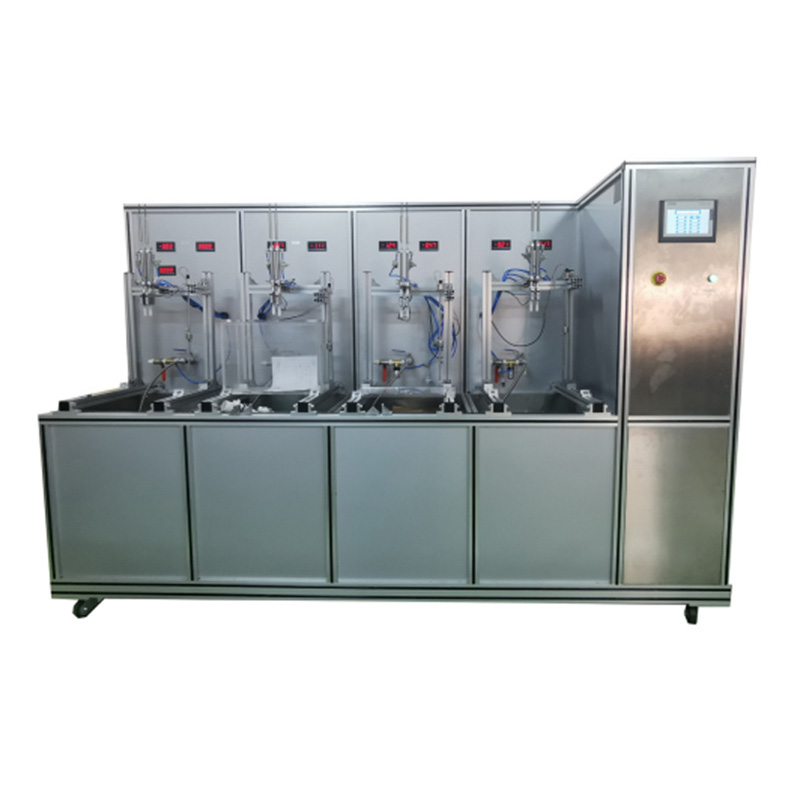

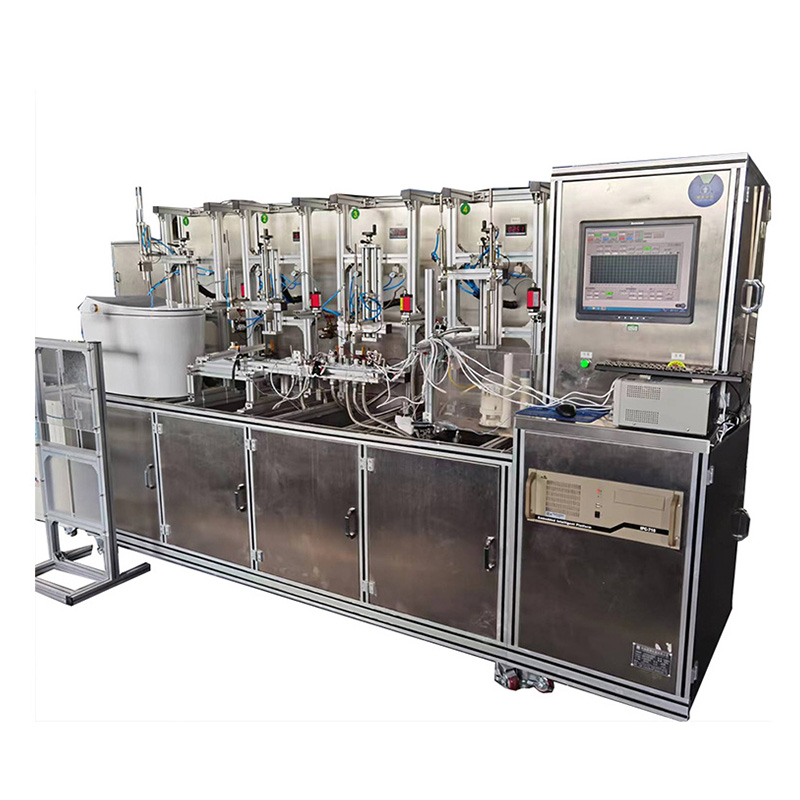

This machine is mainly used for water inlet valve, drain valve life test. It's composed of computer (optional touch screen), PLC, water pump, cylinder, force sensor, pneumatic proportional valve (optional) and other control components and professional test program control system.
Product parameters
Item | Requirement |
Working voltage | Water pump three items AC380V, the remaining single-phase AC220V, with reliable grounding. |
working air pressure | External connection, 0.3MPa~0.6 MPa |
Electric power | Up to 5KW |
Test medium | Cold water: external connection (room temperature water + refrigerator) |
upper monitor | Touch screen (optional computer) |
Test station | Four stations |
Test product range | Inlet water valve and drain valve |
Appearance material | Aluminum profile + aluminum-plastic sealing plate |
actuating device | Cylinder + force sensor (10 Kg) |
water pump | Static pressure 0.02~1.0MPa is available |
Machine size | Length: 2200mm; width: 1200mm; height: 1800mm or customized according to customer requirements |
Compliance with the standards and terms
Category | The name of the standard | Standard terms | |
Gravity flush device and sanitary ware rack | GB26730-2011 | 6.16 Durability test |
