Product description

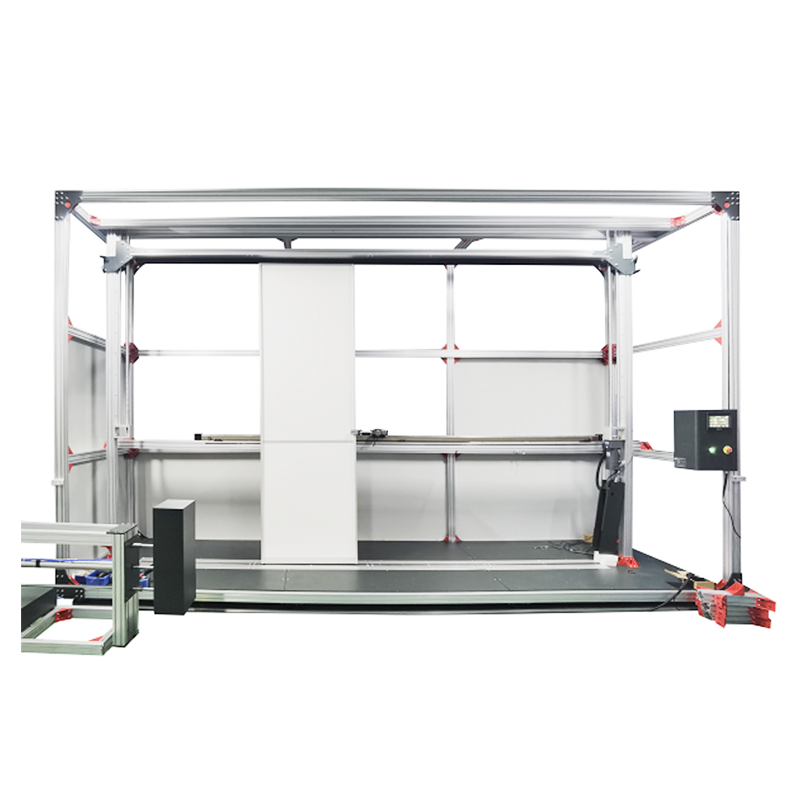

This machine is suitable for durability testing of finished doors containing pulleys. Connect the movable door of the finished furniture with the instrument, simulate the repeated opening and closing and durability test of the pulley, and check whether the pulley has damage or other effects affecting the use after a certain number of cycles.
Product features
The whole machine is beautiful, should not have moving parts exposed, and easy to operate. Suitable for cost moving door test, sliding door test, lifting sliding door test.
Technical parameter
1. Test speed: 0-10 times / min
2. Test trip: 0-1200mm (can be set, or non-standard customized trip)
3. Sensor: 100 KG, (for evaluation)
4. Control system: PLC human-machine interface control
5. Drive device: servo drive
6. Test work station: single work station
7. Frame: using high-strength industrial aluminum profile 80 * 80mm,bearing range: 60kg-180kg
8. Counter requirements: 0-99,999 times
9. Overall dimensions: height 2700 * width 960 * length 2400mm
Compliance with standards and terms
Category | Standard Name | Model Clauses |
Building door and window hardware pulley | JG/T 129-201 | 6.4.3 Repeated opening and closing |
