Product description

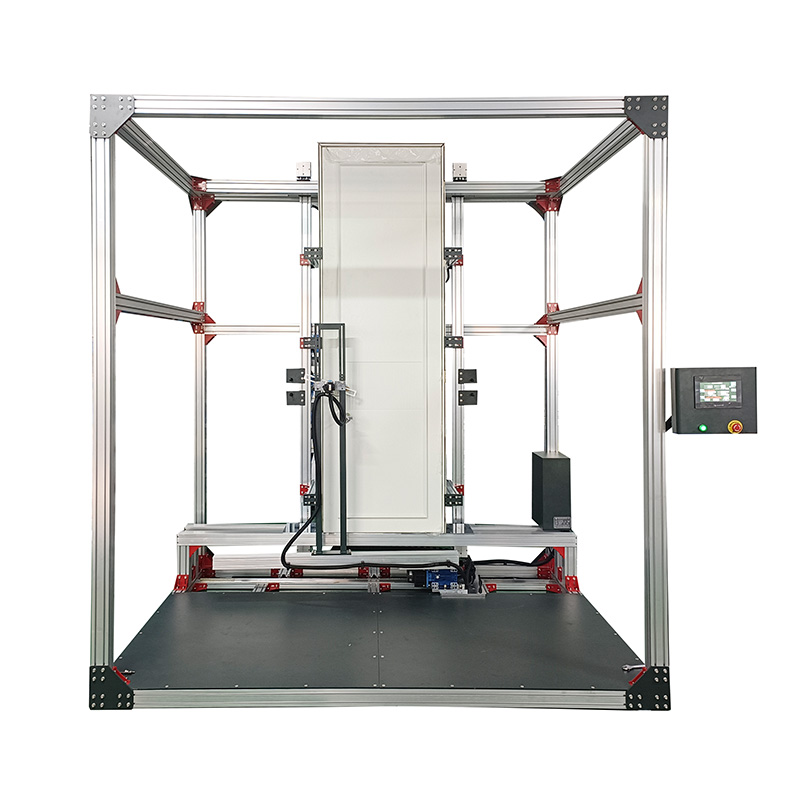

This machine is suitable for testing the durability of furniture hinges. The hinge is opened and closed repeatedly during the use of the simulation, and the hinge is checked for damage or other conditions that affect the use after a certain number of cycles.
Product features
1. Can be used in the installed product for testing, can be firmly connected with various hinges and should not affect any test No force. | ||
2. The pulling length and Angle of the test equipment can be adjusted according to the actual testing requirements, and the adjustment range is 100mm-500mm in length and Angle 0-135 ºC. | ||
3. The machine is beautiful, without exposed moving parts, and easy to operate. |
Conform to the standard
Test method for the durability of repeated opening and closing of doors and Windows |
Test method for door and window opening and closing performance repeatedly |
Technical parameters
1. Furniture hardware cup-shaped dark hinge: 10-18 times/min, opening Angle 0-135° |
2. Hinges of hardware for building doors and Windows (hinges) : 6 times/min, opening Angle 0-100 degrees |
3. Cylinder stroke :800mm |
4. Maximum beam height :1200mm |
5. Counter requirements: 0 ~ 9,99999 |
6. Motor: panasonic servo motor |
7. Size: 150 * 100 * 160 cm (W * D * H) |
8. Weight: about 85Kg |
9. Air source: stable air source above 7kgf/cm^2 |
10. Power supply :1 AC 220V 50Hz 3A |
