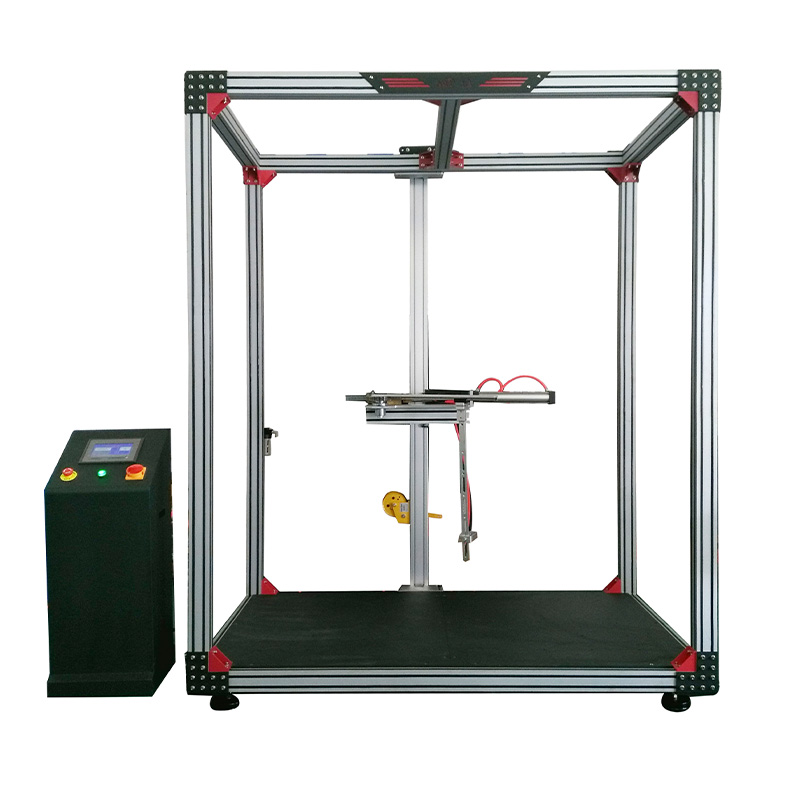

Cabinet door hinge durability tester | hinge durability tester
  • Short Description
    This machine is suitable for testing the durability of furniture hinges. The finished furniture sliding door containing hinges is connected with the instrument to open and close the sliding door repeatedly in the simulation of the daily use, and check whether the hinge is damaged or other conditions affecting the use after a certain number of cycles.
  • SEND INQUIRY NOW
Product Details

Product Description

This machine is suitable for testing the durability of furniture hinges. The finished furniture sliding door containing hinges is connected with the instrument to open and close the sliding door repeatedly in the simulation of the daily use, and check whether the hinge is damaged or other conditions affecting the use after a certain number of cycles.


Product features

1. Can be used in the installed product for testing, can be firmly connected with all kinds of sliding doors and lateral and should not produce any force that affects the test.
2. The height of the test device can be adjusted according to the height of the sample.
3. The opening and closing force is shown by the auxiliary instrument, and the time stop can be adjusted when the drawer is opened and closed, and the number of test machines can be set.
4. The machine is beautiful, without exposed moving parts, and easy to operate.


Conform to the standard

QB/T 2189-2013GB/T 10357.5 2011


Technical parameters

1. Test speed: adjustable for 5 to 12 times /min
2. Cylinder stroke :300mm
3. Maximum test height :2100mm (customizable)
4. Opening Angle: 0 ~ 180 degrees
5. Counter requirements: 0 ~ 9,99999
6. Driving device: cylinder drive
7. Volume: about 208*146*260cm(W*D*H)
8. Weight: about 690Kg
9. Air source: stable air source above 7kgf/cm^2
10. Power supply: 1 AC 220V 50Hz 3A
