Door and window testing machine

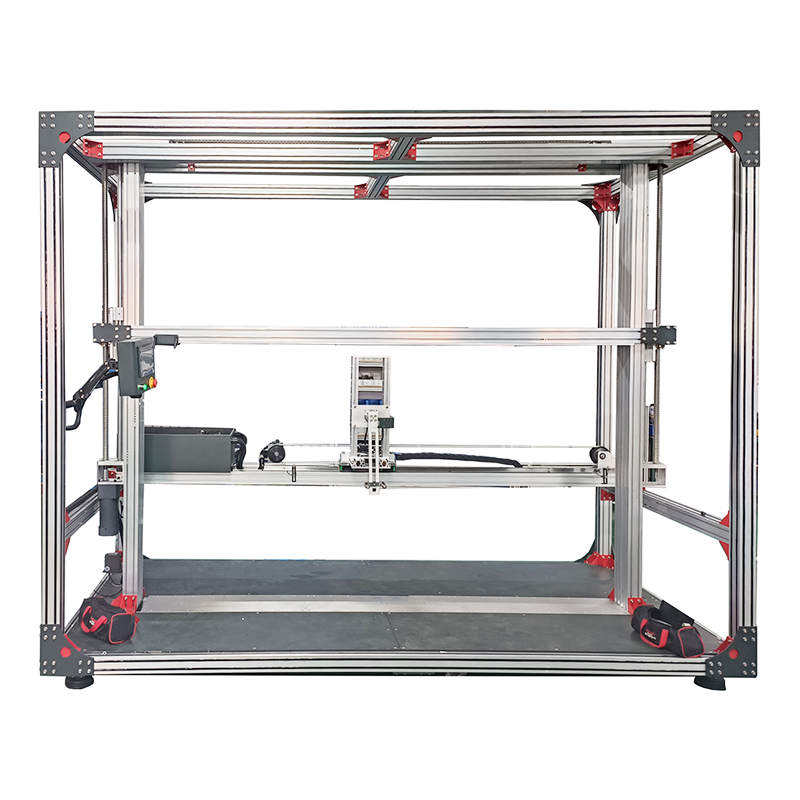

Improve the durability testing machine for sliding doors
  • Short Description
    It is mainly used to enhance the durability test of sliding doors and is suitable for the lifting and sliding hardware system of building doors.
  • SEND INQUIRY NOW
Product Details

Detailed parameters:

StructureOne workstation
Transmission modeElectric + pneumatic
Twist the angleAdjustable from 0 to 180 degrees
Torsion speedAdjustable 4 to 5 times per minute
Control modePLC+ Touch screen
Test the dimensions of the movable leaf (width × height) of the simulated door1200mm×2000mm The width of the inner opening of the simulated door frame is 2400mm


Comply with standards:

JGT 308-2011 Lifting and Sliding Hardware System for Building Doors


Product description:

It is mainly used to enhance the durability test of sliding doors and is suitable for the lifting and sliding hardware system of building doors


Test procedure:

Rise and fall repeat in a cycle

a) The movable fan is in the locked position;

b) Raise the lifting mechanism to the highest position by operating the handle and then hold for 1 second;

c) Move in the push-pull position towards the opening direction, stop 3mm away from the locking position, and stay for 1 second;

d) The movable fan returns to the a) locked position, stays for 1 second, and then starts the cycle again.

The push-pull hardware system is repeatedly cycled

Install the hardware system on the test simulation door. From the locked position - lift and push to the maximum opening position, stay for 1 second - close to the locked position, and stop 3mm before the locked position. It is a cyclic process. After each cycle of the movable fan reaches the on and off positions, it stays for 1 second before proceeding to the next cycle. After the test is completed, measure the operating force in accordance with 6.4.1. During the test process, the following conditions must be guaranteed: a) Stop at a distance from the final closing position; b) The push-pull movement stroke of the movable fan is the width of the movable fan minus 200mm. c) The locking mechanism is completely closed; d) The test frequency is 100 times per hour.
