Chair testing machine

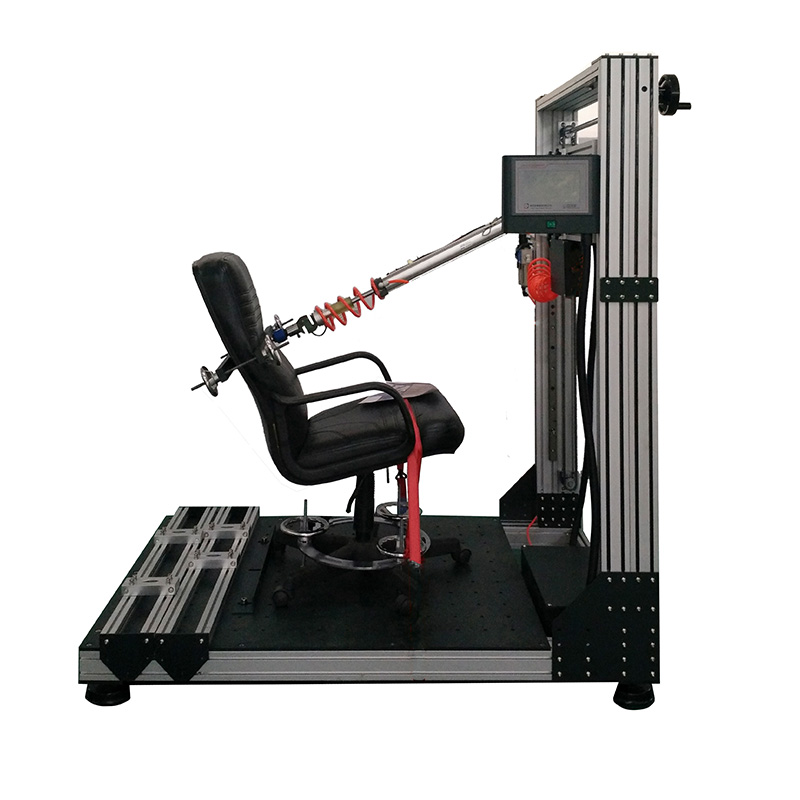

Office chair chassis backward tilt durability testing machine
  • Short Description
    This machine is suitable for all chairs with Tilt Mechanism on the chair chassis to evaluate the durability of the Tilt Mechanism on the office chair chassis under load.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is suitable for all chairs with Tilt Mechanism on the chair chassis to evaluate the durability of the Tilt Mechanism on the office chair chassis under load.


Product features

1. Electrically adjust cylinder output Angle; 2. Sample clamping without tool coordination;
3. Humanized operation control, complete the test with one key; 4. Digital voltmeter, voltage monitoring, power off memory counter to avoid losing all previous efforts;


Test program

The chair is fixed, the chair face is loaded with 225 lb weights,  and an external force is applied to make the Tilt Mechanism perform 300,000 reciprocations between the front and rear stops at a speed of 10-30CPM.


Conform to the standard

QB/T 2280-2016    BIFMA X5.1-2017     EN 1335:2000


Technical parameters

1. Load weight: 225 LBS
2. Cylinder stroke: 0 ~ 500mm, circulating between the front and rear stops
3. Transmitter: 200kg
Counter: 6-bit LCD display, power off memory, output control, 300,000 times
5. Cycle speed: 10 ~ 30RPM or specified
6. Power supply: AC220V 0.5a
7. Body size: length 1780* width 1000* height 1850mm
