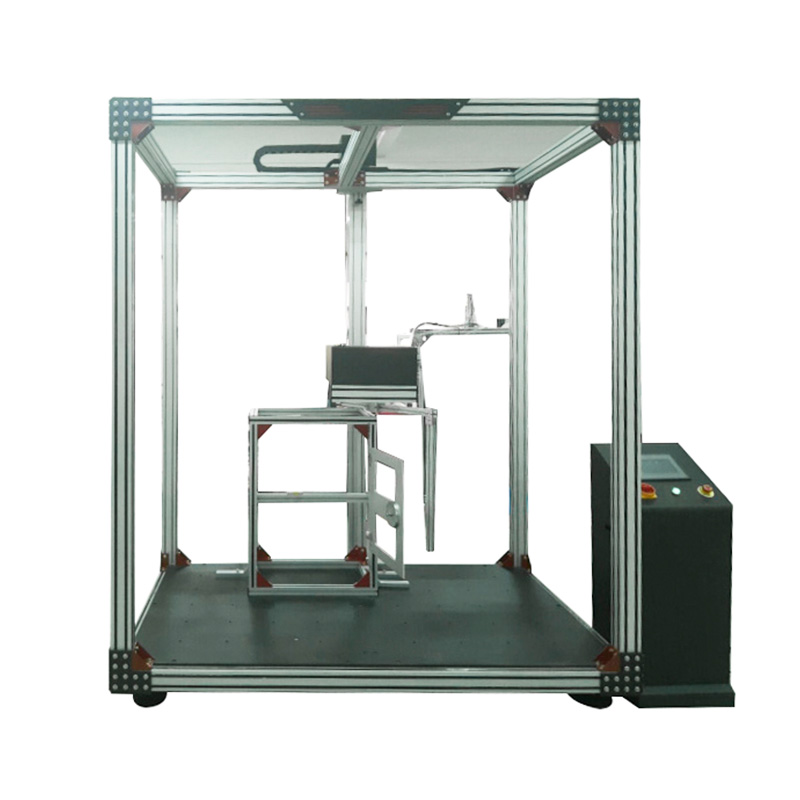

Cabinet Door Hinges Comprehensive Testing Machine
  • Short Description
    This machine is suitable for vertical static loads on finished and semi-finished hinges of cabinet doors. Horizontal static load. Operating force. Durability test. Simulate the common usage process and repeatedly open and close the hinge. After a certain number of cycles, check whether the hinge is damaged or has any other conditions that affect its use.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is suitable for vertical static loads on finished and semi-finished hinges of cabinet doors. Horizontal static load. Operating force. Durability test. Simulate the common usage process and repeatedly open and close the hinge. After a certain number of cycles, check whether the hinge is damaged or has any other conditions that affect its use.


Comply with standards

1. Standard: QB/T 2189-2013 Durability Test in Furniture Hardware cup-shaped Concealed Hinges

The other optional test items are as follows:

1. Operating force (optional)

2. Vertical static load (optional)

3. Horizontal static load (optional)

Ii: Standard: 7.1.4 Durability Test of Sliding Doors in GB/T 10357.5-2011


Technical parameters

1. Test speed: 1-18 times per minute (adjustable)

2. Test station: It can be moved left and right, suitable for left-opening or right-opening cabinets. It can be used for testing finished cabinet doors or individual hinges (tooling required).

3. Test fixture: Detachable and movable up and down. The test door complies with the standard requirements (as shown in the following figure). Suitable for testing cabinets of different heights (maximum sample size approximately: 1800*1900*550mm)

4. Test Angle: Adjustable from 0 to 180° by servo.

5 Drive unit: High-precision servo motors are adopted

6. Machine frame: Made of high-strength industrial aluminum profiles of 80*80mm

7. Weight-bearing weights: 1kg,2 pieces

8. Loading: 0-500N (Load can be set to stop, only for evaluation purposes)

9. Absolute error of the measured stroke: ≤±0.25m

10. Travel control range: 0.05-99.9km, with a scale of 0.25m

11. Absolute error in measurement time: 0.1 seconds

12. Durability test: Apply a certain load to the cabinet door and hinges, and perform repeated opening and closing actions. After a certain number of cycles, check whether the hinges can still meet the usage requirements.

13. Vertical static load: Suspend the specified load at a distance of 100mm from the farthest side of the cup-shaped concealed hinge. Open and close the door back and forth 10 times, each time from a distance of 45 degrees from the fully closed position to a distance of 10 degrees from the fully open position. One back-and-forth cycle is not counted as one cycle. The maximum opening Angle is 135 degrees from the fully closed position.

14. Horizontal static load: At the fully open position of the door, apply the specified load on the horizontal center line 100mm away from the side of the cup-shaped concealed hinge in the direction perpendicular to the door plane. Conduct 10 tests. After the test is completed, unload and check.

15. Control mode: PLC+ human-machine interface

16. Dimensions: Length 2060mm× Width 1500mm× Height 2600mm

17. Power supply: 220V,5A


Product features

1. It can be used for testing in installed products and should be firmly connected to various hinges without generating any force that would affect the test. The finished cabinet doors can also be directly tested.

2. The pull-out length and Angle of the test equipment can be adjusted according to the actual detection requirements, and the Angle is adjustable from 0 to 180℃.

3. The whole machine is stable and aesthetically pleasing, with no exposed moving parts and is easy to operate.
