Chair testing machine

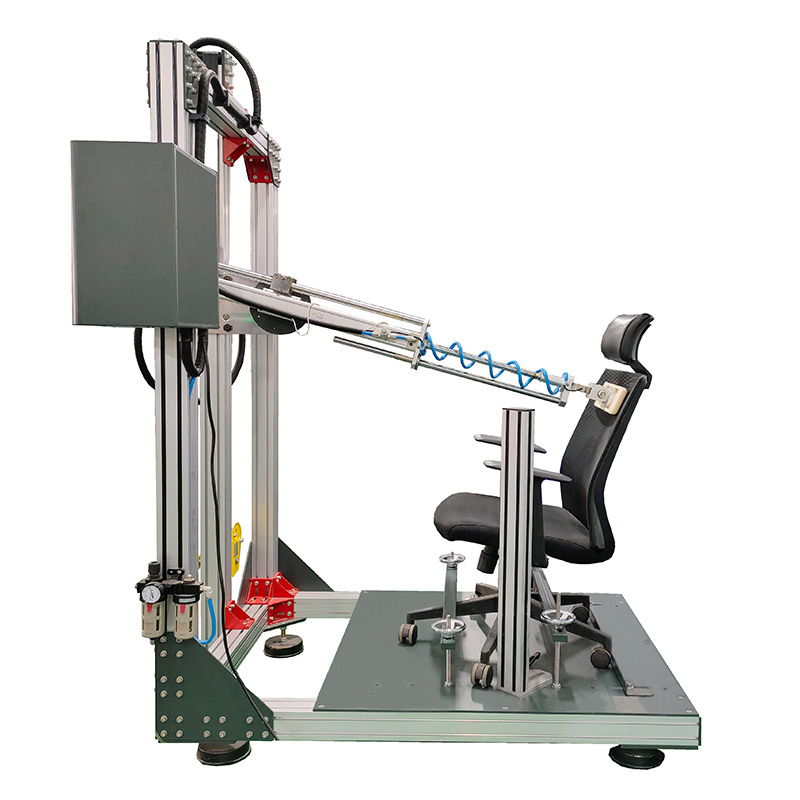

Office Chair Backrest Cycle Tester (PLC Control Forward Pulling Type)
  • Short Description
    This machine is suitable for testing the life of chair backward tilting mechanism and the durability performance of chair back.This equipment is a multi-functional test equipment.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is suitable for testing the life of chair backward tilting mechanism and the durability performance of  chair back.This equipment is a multi-functional test equipment.


Control system

1.Multi-function, can adjust the height of the cylinder, the angle of force output;

2.Optional control of cylinder output force or limit function;

3.With stop/power failure memory and breakpoint detection shutdown function.


Features

1.The machine is composed of control system, pneumatic system and regulating machinery.

2.The frame is made of aluminum profile with beautiful and generous shape and hidden wiring.

3.The core parts are imported brand pneumatic parts and cylinders;

4.It can work unattended for a long time, humanized operation and control, one key to complete the test.


Applicable standards

QB/T 2280-2016, BIFMA X5.1-2017, EN 1335:2000


Technical parameter

1.Load weights: 225 lbs weights

2.Width of test platform 1000mm

3.Output maximum stroke 600mm

4.Sensor: 200kg

5.Cylinder adjustable angle: horizontal±45 °

6.Test times: 1-999999 times/minute

7.Control mode: touch screen + PLC

8.Testing speed: 5-25 times/minute

9.Power supply (power): 220VAC/2A

10.Gas source: air pressure: ≥ 0.5MPa; flow rate: ≥ 800L/min;  gas source filtered water, dry processing
