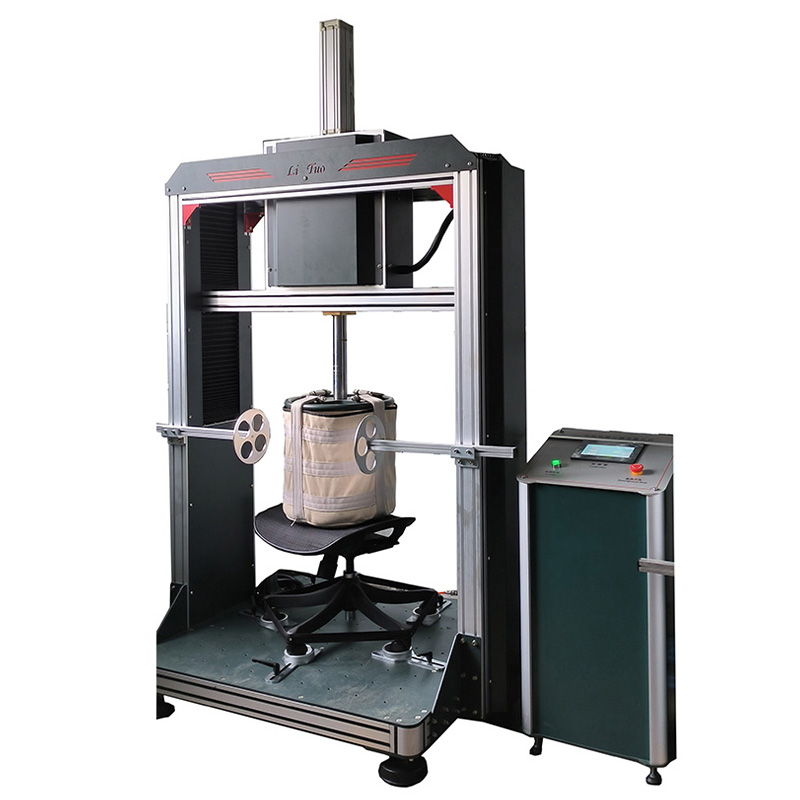

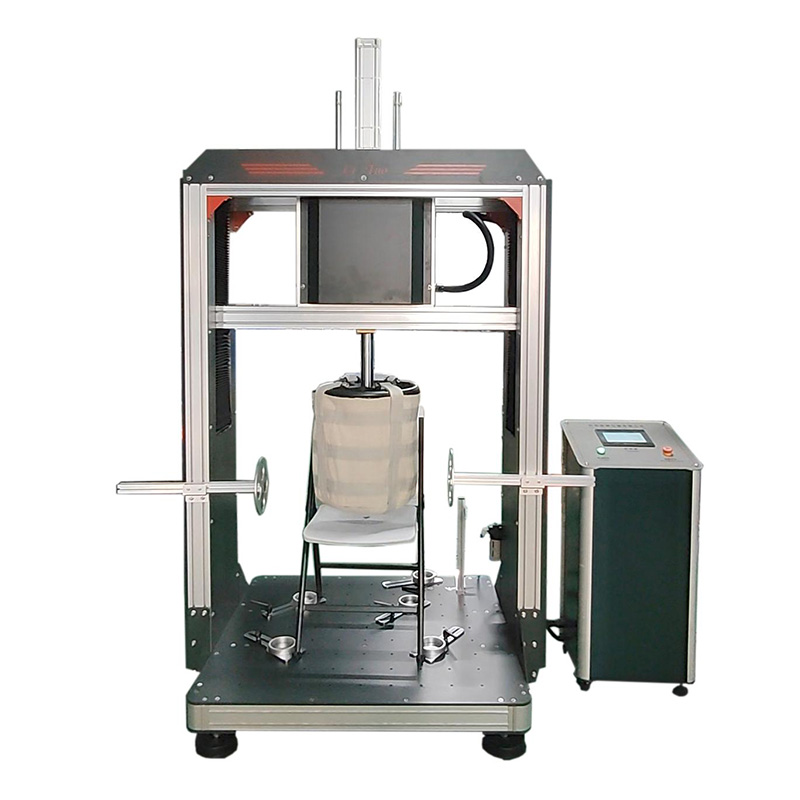

Office Chair Seating Impact Durability Tester(Dynamic) | Office chair seat surface impact testing machine
  • Short Description
    This machine is suitable for testing seat products, such as chairs, stools... . This equipment is multi-functional test equipment; It can realize the function of repeated impact and one-time impact. Used to evaluate the durability of the chair under vertical forces. The product with a seat surface is simulated to sit on the product in an abusive manner to test the durability and primary impact capacity of the product.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is suitable for testing seat products, such as chairs, stools...  . This equipment is multi-functional test equipment;  It can realize the function of repeated impact and one-time impact. Used to evaluate the durability of the chair under  vertical forces. The product with a seat surface is simulated to sit on the product in an abusive manner to test the  durability and primary impact capacity of the product.


Product features

1. Two functions can be realized: repeated impact on the seat surface and one-time impact on the seat surface;
2. Aluminum profile frame structure, stainless steel test platform, beautiful structure;
3. Use electromagnet to absorb and release, completely simulate the state of free fall, with no resistance and low noise during the fall;
4. Use the "foot cup" structure in the horizontal direction of the chair to keep the position, so that the chair is not constrained by external forces in the vertical direction;
5. Easy to operate without any special tools; Memory function of power failure;
6. Different control forms are optional.


Technical parameters

1. Maximum impact height: 250mm
2. Impact frequency: 5-15 times/min
3. Sample limit: length 1000× width 1000× seat height (300 ~ 650mm)
4. Impact weight: 125 ~ 500Ibs(pressure ≥ 0.6mpa)
5. Power supply (power) : 220VAC/5A, 50Hz
6. Air source: air pressure: ≥ 0.6mpa; Flow rate: ≥800L/min; The air source is filtered and dried
7. Body size: about 1350* 1000* 2200mm (length * width * height)
8. Weight: about 450kg
9. Control system
Separate industrial control control box, with break point check out stop function;
The touch screen displays the impact times and speed in real time, with stop/power failure
Memory function;
Electric height adjusting drive system;
Action control mechanism: low electromagnet electric absorption, cylinder driven up, high power loss release;
Hydraulic buffer to reduce noise.


Conform to the standard

QB/T 2280-2016
EN 1335:2000
BIFMA X5.1-2017
