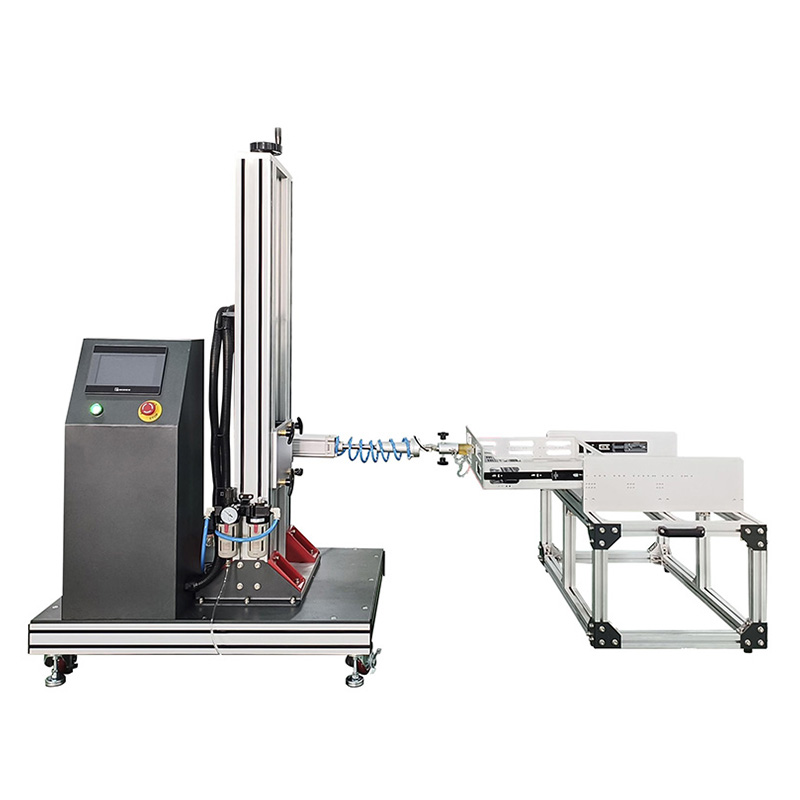

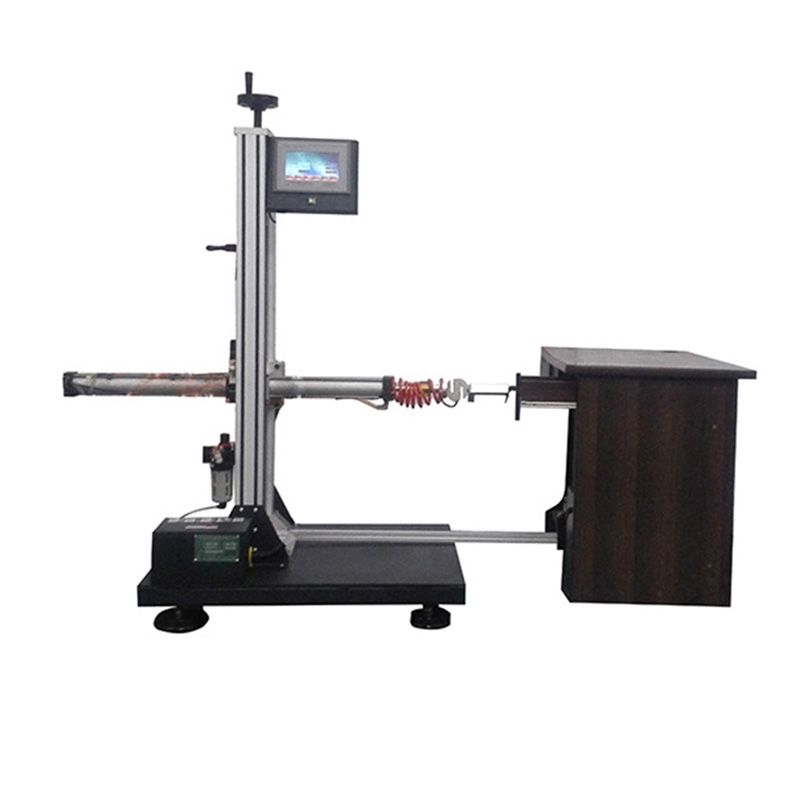

Desk drawer slide rail durability testing machine
  • Short Description
    This machine is suitable for testing the durability of the drawer sliding track installed on the furniture. It can also set the force value for destructive test and measure the push and pull of the drawer. Mainly for the drawer life test, let the working drawer in the set trip, frequency and interval pause time destructive life test to determine the damage of the product.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is suitable for testing the durability of the drawer sliding track installed on the furniture. It can also set the force value for destructive test and measure the push and pull of the drawer. Mainly for the drawer life test, let the working drawer in the set trip, frequency and interval pause time destructive life test to determine the damage of the product.


Conform to the standard

QB/T 10357.5 2011
BIFMA X5.5-2008
QB/T 2454-2013


Product features

1. Force sensor and MCU control value
2. Imported pneumatic parts and cylinder products
3. Work long hours unattended
4. Ladder screw manually controls the height of working position
5. Text display and PLC programming control


Technical parameters

1. Stretching displacement: cylinder: 0-600mm or electric cylinder: 0-500mm
2. Test drawer height: adjustable from 150 to 1200mm
3. Loading power path: 500N (load can be set to stop for judgment)
4. Speed: cylinder or electric cylinder: 5-15 times/min
5. Absolute error of the measured stroke: ≤±0.25m
6. Travel control range: 0.05-99.9km scale 0.25m
7. Absolute error of measurement time: 0.1 second
8. Test items:
Durability test: put a certain load inside the drawer, repeatedly pull out and close the drawer, after a certain number of cycles, check whether the slide can meet the use requirements.
Destructive test: apply a certain force value to the furniture parts to check whether the furniture parts are damaged under a certain load.
9. Volume: 800*600*1200mm (W*D*H)
