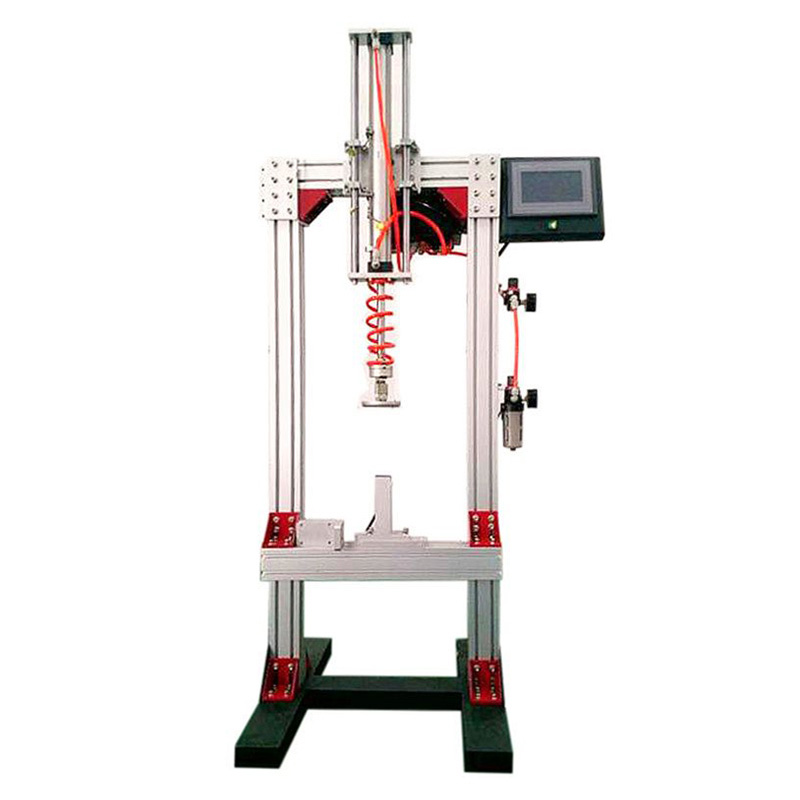

Gas spring performance fatigue testing machine
  • Short Description
    This air-spring performance fatigue tester is suitable for all kinds of pneumatic rod spring, such as: automobile tail box, pneumatic locomotive, bicycle, furniture, etc.
  • SEND INQUIRY NOW
Product Details

Product description

This air-spring performance fatigue tester is suitable for all kinds of pneumatic rod spring, such as: automobile tail box, pneumatic locomotive, bicycle, furniture, etc.


Conform to the standard

GB 25751-201  GB/T 29525-20130


Technical parameters

1. Loading mode: cylinder loading
2. Transmitter: 200kg
3. Test function: this machine can carry out fatigue test on four stations of pneumatic bar, and each station test will not affect each other.
4. Test mode: two (force and position optional)
5. Test station: 4 stations
6. Test speed: 5-15 times/min
7. Control mode: PLC+ touch screen
8. Test times: 0-999999 can be set arbitrarily
9. Test sample: the maximum length is 1000mm, the test can meet a variety of different diameter of the sample (replace the fixture), the standard is a set.
10. Power supply: 220V, 50HZ; Air source: above 0.6mpa
11. External dimensions: length 810mm× width 800mm× height 1940mm


Product features

1. CNC man-machine interface, high stability PLC control, time/times/force 1 table setting, indicating;
2. Can set The Times, set the time (s) and set the power;
3. Automatic counting (0-999,999 times), force peak function, force preservation function and load protection function;
4. Automatic shutdown at the set number of times, correction password protection, power off protection, power off memory, semi-automatic/automatic selection, automatic data saving, low-voltage operation, breakpoint shutdown, one-finger finish;
