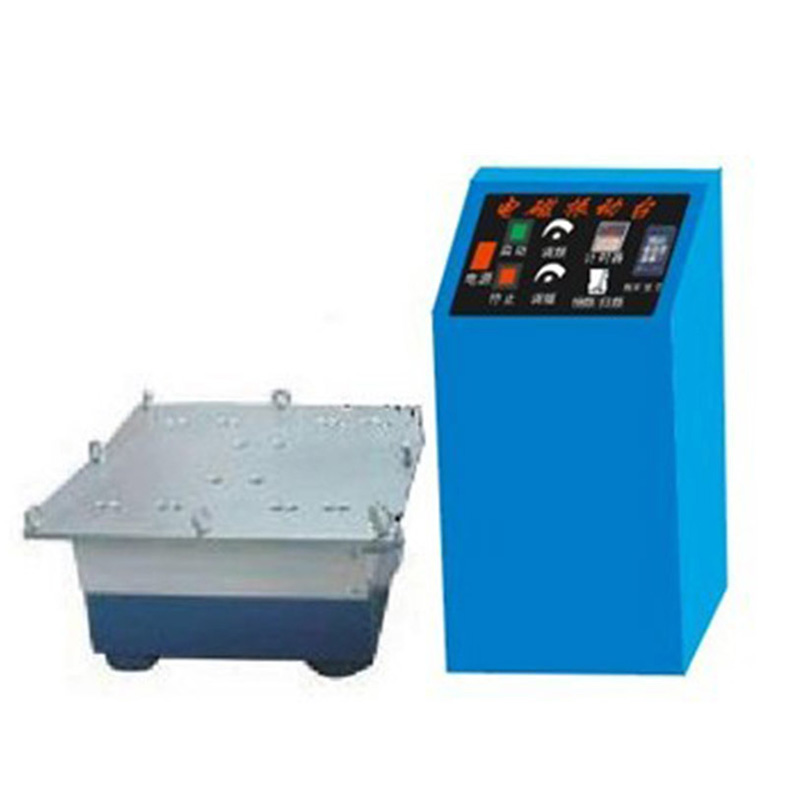

Electromagnetic horizontal vibration Test machine | Electromagnetic horizontal vibration table
  • Short Description
    This machine is widely applicable to industries such as national defense, aviation, aerospace, communication, electronics, automobiles and motorcycles, and home appliances. This type of equipment is suitable for detecting early faults, especially for detecting false soldering and false soldering of electronic products, simulating actual working conditions for assessment and structural strength tests. This series of products have a wide range of applications, broad applicability, and remarkable and reliable test results.
  • SEND INQUIRY NOW
Product Details

Product description:

This machine is widely applicable to industries such as national defense, aviation, aerospace, communication, electronics, automobiles and motorcycles, and home appliances.

This type of equipment is suitable for detecting early faults, especially for detecting false soldering and false soldering of electronic products, simulating actual working conditions for assessment

and structural strength tests. This series of products have a wide range of applications, broad applicability, and remarkable and reliable test results.


Technical parameters:

1. Vibrating table size: 500*500mm

2. Vibration direction: Horizontal

3. Maximum load: 50KG

4. Frequency range: 1 to 200HZ

5. Frequency adjustment range: It can be adjusted freely within the frequency range of 1 to 200HZ

6. Time control: In seconds (maximum 99H99M)

7. Power of the oscillator: 2.2KW

8. Sweep frequency range: 1 to 200HZ (Once the upper limit frequency, lower limit frequency and time range are set arbitrarily,

the machine will sweep back and forth within the set frequency range: for example, if the upper limit frequency is set at 60HZ and the lower limit frequency at 10HZ, and the set time is 1 minute,

the machine will sweep back and forth between 10-60HZ and 60-10HZ.)

9. Amplitude (no-load) : 0-5mm (The amplitude varies at any frequency and can be adjusted. Within the sweep frequency range, the amplitude changes with the frequency.)

10. Power supply voltage: 220V±10%

11. Maximum current: 5A


Product features:

1. The equipment is controlled by a frequency converter and a self-developed measurement and control system, making it work more stably and reliably.

2. The test table surface is made of aluminum plate, precisely processed and ultra-quiet.

3. The electrical control box adopts a vertical box body, with an elegant structure, good stability and convenient operation.

4. Sweep frequency, fixed frequency and frequency modulation operation modes, time control, to meet the testing requirements of different industries;

5. Strong anti-magnetic and anti-interference capabilities;

6. It has a safe and reliable protection function;

7. Functions: Multiple functions such as frequency modulation, sweep frequency, frequency doubling, programmability, amplitude modulation, and time control.
