Packaging and transportation testing machine

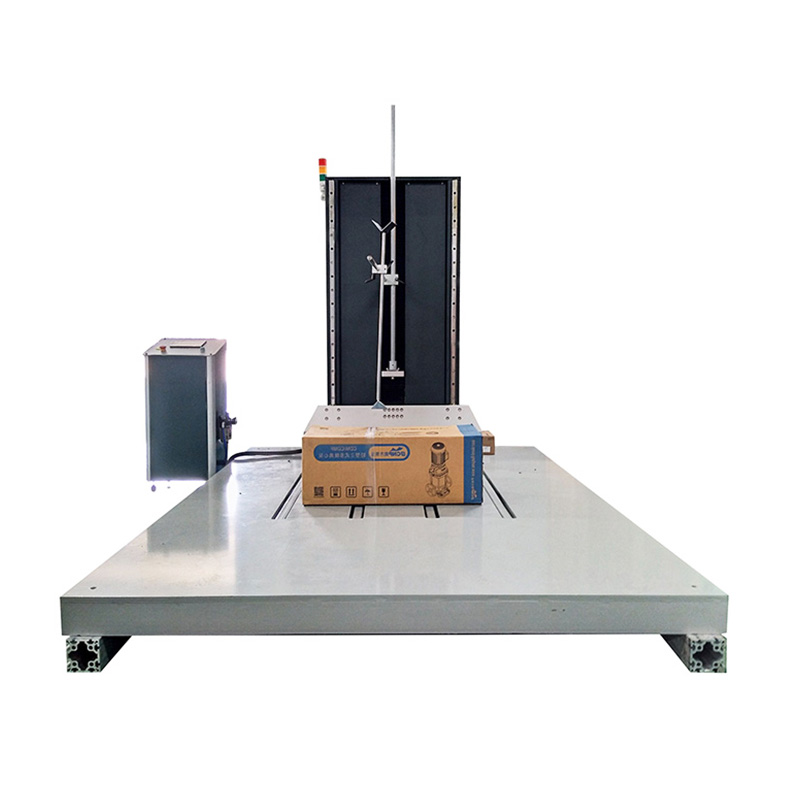

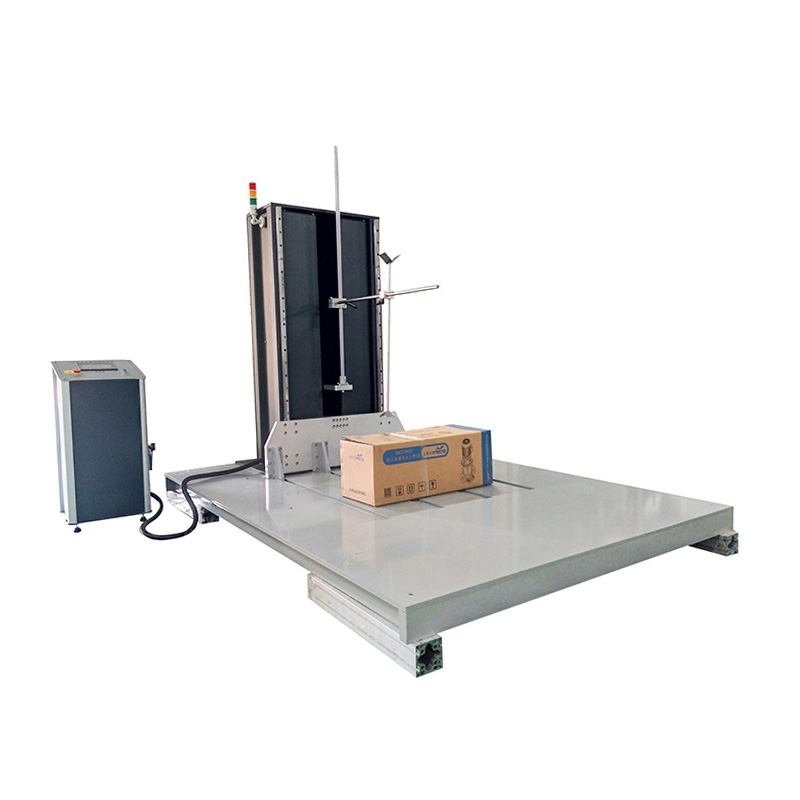

Zero Height Drop Test Machine
  • Short Description
    This test bench is mainly used to assess the impact of the drop impact on the packaging in the actual transportation and loading and unloading process, and to assess the impact strength of the packaging in the handling process and the rationality of the packaging design. The zero drop testing machine is mainly used for larger packaging drop tests. The zero drop testing machine consists of an "E" type fork that can quickly move downward as the specimen bracket. The tested goods are placed in balance according to the test requirements (surface, edge, Angle test). During the test, the support plate moves down at a high speed, leaving the specimen, and the "E" fork falls to the base plate glue under the action of the high efficiency shock absorber, which is embedded in the bottom plate. Theoretically, the zero drop test can be conducted from the zero height range, and the drop height can be set numerically according to the test requirements. And automatically perform dr
  • SEND INQUIRY NOW
Product Details

Product description

This test bench is mainly used to assess the impact of the drop impact on the packaging in the actual transportation and loading and unloading process, and to assess the impact strength of the packaging in the handling process and the rationality of the packaging design. The zero drop testing machine is mainly used for larger packaging drop tests. The zero drop testing machine consists of an "E" type fork that can quickly move downward as the specimen bracket. The tested goods are placed in balance according to the test requirements (surface, edge, Angle test). During the test, the support plate moves down at a high speed, leaving the specimen, and the "E" fork falls to the base plate glue under the action of the high efficiency shock absorber, which is embedded in the bottom plate. Theoretically, the zero drop test can be conducted from the zero height range, and the drop height can be set numerically according to the test requirements. And automatically perform drop test according to the set height of large packaged goods and specimens drop testing.


Technical parameters

1. Maximum weight of the specimen: 300kg
2. Test maximum size: 1000*1000*1000 (unit: mm)
3. Test height: 0 ~ 1500mm adjustable
4. Sample clamping method: diamond, Angle, surface
5. Power supply: 380V/50HZ
6. Drive mode: motor drive
7. Protection device: The upper and lower parts are equipped with inductive protection device
8. Impact plate material: 45# steel, (thickness 120 mm)
9. Height display: LED digital display, and can set the height stop function
10. Drop height identification: use benchmark scale identification
11. Bracket structure: 45# steel, square welded
12. Transmission mode: Taiwan imported straight slider and copper guide sleeve, 45# chrome steel
13. Acceleration device: pneumatic
14. Drop mode: electromagnetic and pneumatic integrated cooperation
15. Net weight: 1500kg
16. Power: 5KW
17. Volume: about 1700*1500*2000mm
18. Impact table: steel plate


Conform to the standard

Meet the requirements of GB/T1019-2008 standard.
