Packaging and transportation testing machine

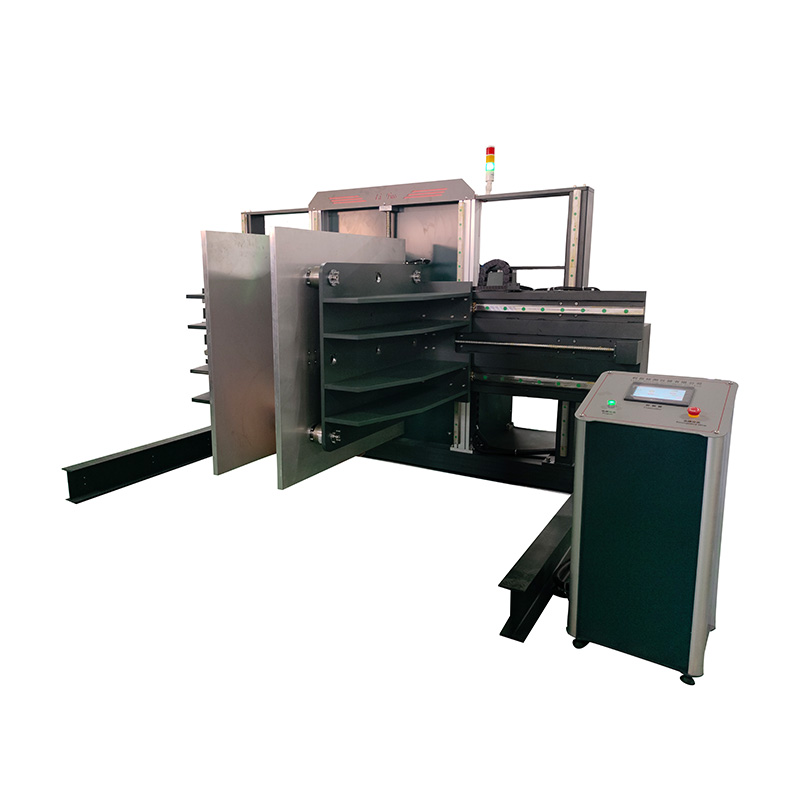

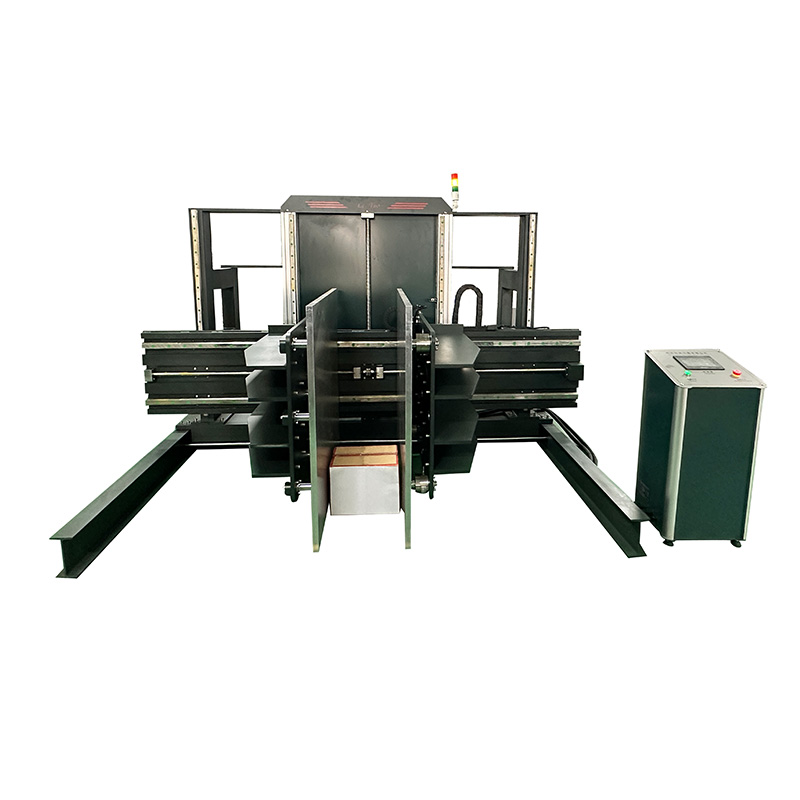

Clamping Holding Force Test Machine
  • Short Description
    The clamping force tester is used to simulate the loading and unloading of the package by the clamping truck with two splints to evaluate the clamping strength of packages, which is suitable for finished products such as kitchenware, furniture, household appliances, toys, etc., especially for the testing of the clamping strength of packages required by SEARS.
  • SEND INQUIRY NOW
Product Details

Product description

The clamping force tester is used to simulate the loading and unloading of the package by the clamping truck with two splints to evaluate the clamping strength of packages, which is suitable for finished products such as kitchenware, furniture, household appliances, toys, etc., especially for the testing of the clamping strength of packages required by SEARS.


Technical parameters

1. Splint can realize clamping, opening, rising, falling and other actions
2. Equipped with force sensor and digital display to calibrate clamping force
3. Clamping force: selected within the range of 2000 ~ 5000LB
4. Splint size: D1200* H1200mm;
5. Clamping space: maximum 1200*1200*1200mm (W*D*H)
6. Clamping space: minimum 400*1200*1200mm (W*D*H)
7. Clamping speed: adjustable from 5 to 50mm/min;
8. Lifting range: 3in and 6in, or according to specific user requirements
9. Outer shape: 1200*1500*1500mm (W*D*H)
10. Weight: 1200Kg
11. Power source: 220V/50Hz, 5A
