Packaging and transportation testing machine

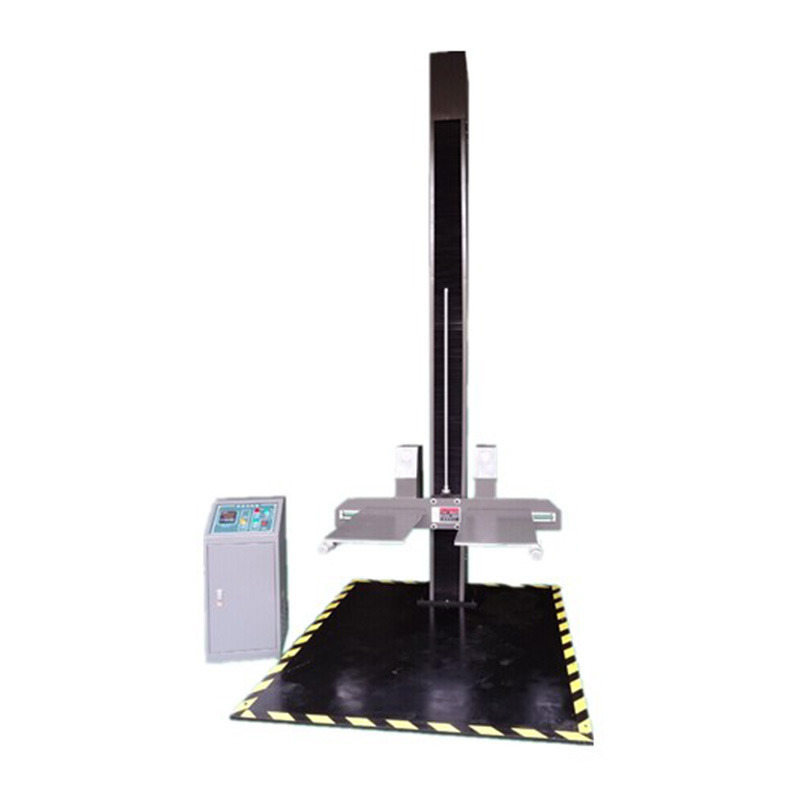

Double-Wing Drop Testing Machine
  • Short Description
    The double-wing drop testing machine is mainly used to assess the impact of the drop shock on the packaging in the actual transportation and loading and unloading process, and to assess the impact strength of the packaging during the handling process and the rationality of the packaging design.
  • SEND INQUIRY NOW
Product Details

Product description

The double-wing drop testing machine is mainly used to assess the impact of the drop shock on the packaging in the actual transportation and loading and unloading process, and to assess the impact strength of the packaging during the handling process and the rationality of the packaging design.


Technical parameters

1. Drop height: 400-1500mm
2. Maximum weight of the specimen: 80kg
3. Height display mode: LED digital
4. Drop floor thickness: 10mm
5. Drop mode: electric type
6. Reset mode: Manual
7. Sample clamping method: diamond, Angle, surface
8. Arms size; 700*350mm
9. Base plate size: 1400*1200*10mm
10. Maximum size of specimen: 1000*800*1000
11. Test bench dimensions: 1400-1200-2300mm
12. Drop error: ±10mm
13. Drop plane error < 1°
14. Height display using high precision encoder sensing
15. Net weight: 300kg
16.Motor power: 0.75KW
17.Power supply: 380V, 1.5KW
18. Control box: Separate vertical control box, using anti-static powder baking Paint.


Conform to the standard

GB4757.5-84
JISZ0202-87
ISO2248-1972(E)
