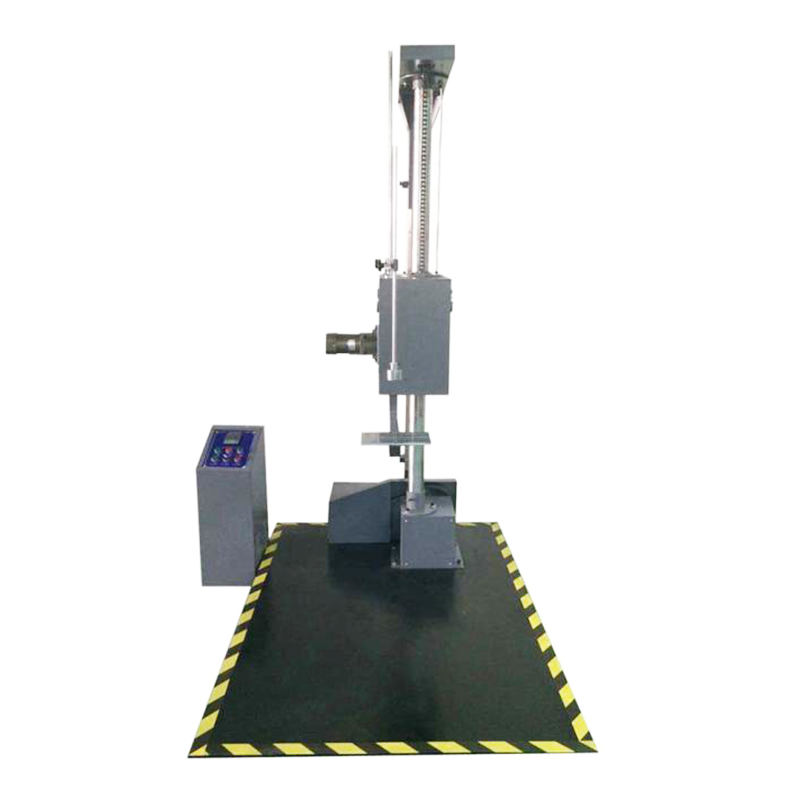

Single Wing Drop Test Machine-Packaging and transportation testing machine-Furniture testing machine, bathroom testing machine, environment testing machine, sports equipment t-Lituo testing machine

Product Details

Product description:

Specifically designed to test the damage to product packaging caused by falls and evaluate the impact resistance during transportation and handling.

Specification parameters:

External dimensions	About 1700 * 1200 * 230mm or according to customer needs
Instrument weight	About 550kg
Power supply	AC380V 50HZ
Power	1.5KW

Compliant with standards:

Meets the relevant requirements of ISO2248 JISZ0202-87 GB/T4857.5-92 and other standards.

Technical parameters:

1. Drop height mm: adjustable from 300-1500
2. The maximum weight of the specimen is kg: 0-80kg
3. Bottom plate thickness: 10mm (solid iron plate)
4. Maximum size of specimen mm: 800 x 800 x 1000
5. Impact panel size mm: 1700 x 1200
6. Arm size mm: 160 * 250 * 10
7. Drop height error: ± 10mm
8. Dimensions of the test bench: approximately 1700 x 1200 x 2300 mm
9. Height display; LED instrument digital display
10. Test method: all-round drop of surface, angle, and edge
11. Transmission mode: electric transmission
12. Parallel error of impact panel: ≤ 1 degree
13. Error between the falling surface and the horizontal angle during the falling process: ≤ 1 degree
14. Power supply: 380V1, Power supply: AC380V 50HZ
15. Power: 1.5KW
16. Net weight kg: approximately 550kg
