Product Introduction:

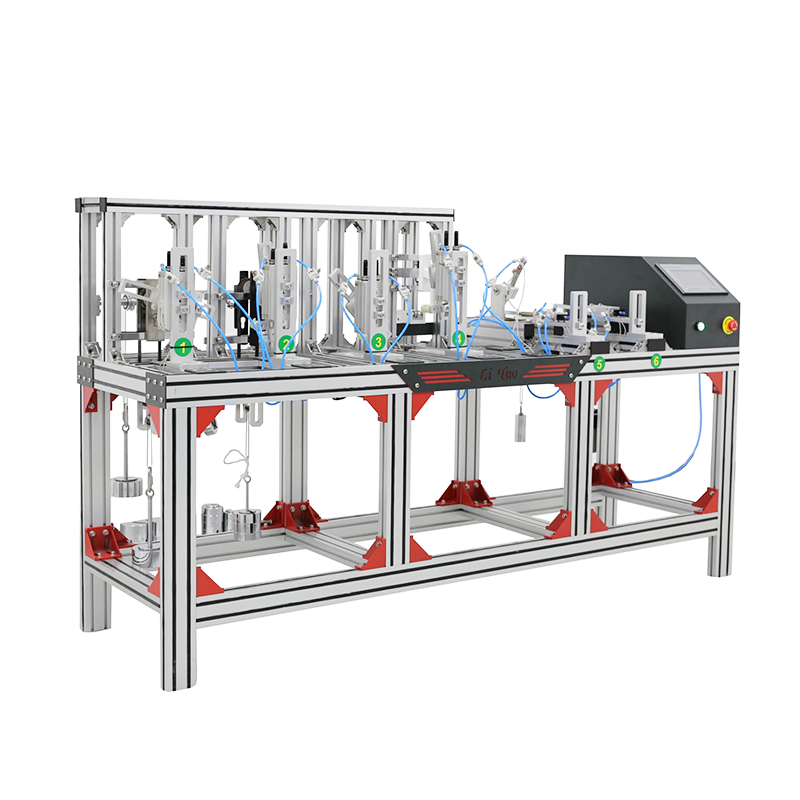

A highly efficient detection device specifically designed for testing the fatigue life, durability and reliability of door and window sliding locks and locking mechanisms under repeated opening and closing conditions. This device assesses the cyclic fatigue resistance, structural strength and functional stability of locks by simulating high-frequency mechanical movements (such as pushing, pulling and locking actions) in actual use, providing data support for product quality certification and design optimization.
Technical Parameter:
1. Structure: (aluminum profile) | |
2. Station: hand lock (two station), one word lock (two station), double hand load (one station) | |
3. Transmission mode: rotating cylinder | |
4. Torsion Angle: 0-180 degrees adjustable | |
5. Torsion speed: 0-20 times / minute is adjustable | |
6. Control mode: PLC + touch screen | |
7. Power supply: AC220V, 50 HZ |
Add part:
Add one pull and pull lock fatigue test, two stations with four 1 Kg loads.
Compliance with Standards and Terms:
Category | Standard name | Model Clauses | ||
Single point lock for building window and door hardware | JG/T 130-2017 | 4.4.4 Repeated opening and closing | ||
Single point lock for building window and door hardware | JG/T 130-2017 | 5.4.4 Repeated opening and closing |
