Product description

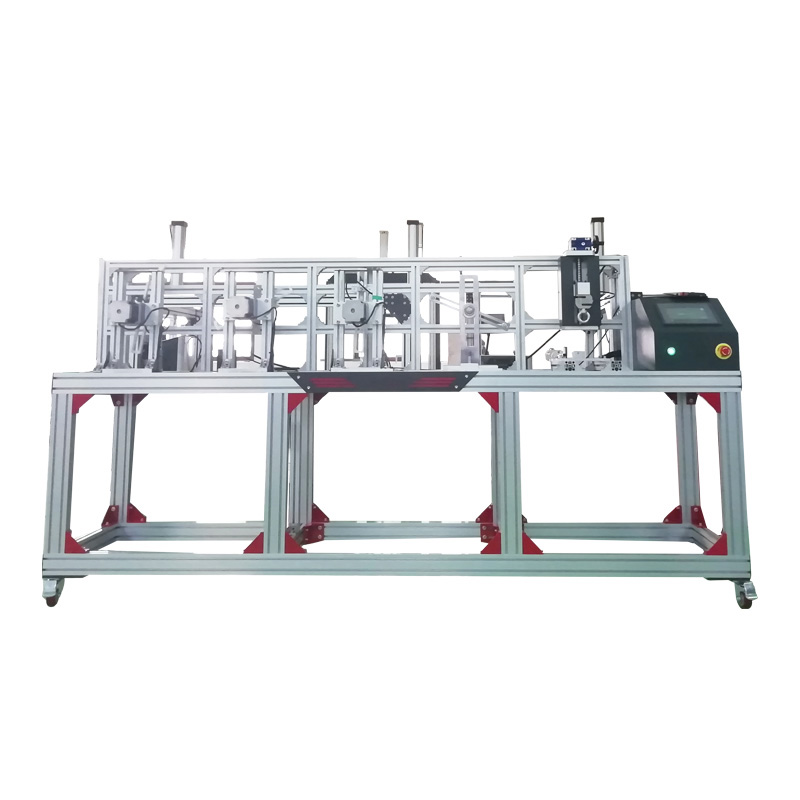

This machine is mainly suitable for the opening and durability test of building sliding doors and windows.
Technical parameter
1.Structure: high-strength aluminum profile;
2.Test speed: 10-15 times / min;
3.Control mode: PLC + touch screen;
4.Test Angle: 0-180° adjustable;
5.Drive mode: motor drive;
6.Sensor: 200kg;
7.Test station: single point lock: repeatedly open 2 station; locking part damage 1 station; drive part damage 1 station; rotary hand: the handle damage and locking part damage is 1 station; repeatedly open 2 station; operating torque is completed with torque wrench. A total of 7 stations;
8.Power supply: AC220V, 50 HZ;
9. Ball and silk rod: Taiwan Dinghan;
10.Software: Lipto.
Compliance with standards and terms
Category | Standard Name | Model Clauses |
Single point lock for building window and door hardware | JG/T 130-2017 | 5.4.1 Operating force (manual torque wrench) |
Single point lock for building window and door hardware | JG/T 130-2017 | 5.4.3.3 Single lock lock form dish |
Single point lock for building window and door hardware | JG/T 130-2017 | 5.4.4 Repeated opening and closing |
Building doors and Windows hardware rotary press hold hand | JG/T 213-2007 | 5.5.1 Operating force (torque wrench + machine test) |
Building doors and Windows hardware rotary press hold hand | JG/T 213-2007 | 5.5.2 Handle is resistant to damage |
Building doors and Windows hardware rotary press hold hand | JG/T 213-2007 | 5.5.3 Damresistance of locking parts |
Building doors and Windows hardware rotary press hold hand | JG/T 213-2007 | 5.5.4 Repeated opening and closing |
