Sanitary Ceramic Testing Machine

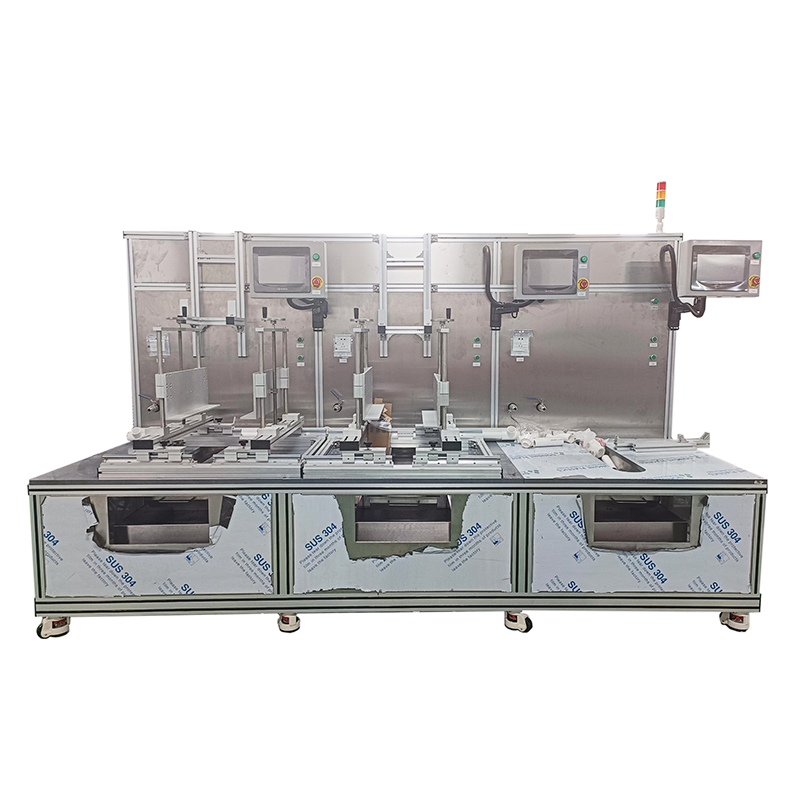

Sanitary ceramic flushing function testing machine
  • Short Description
    This machine is mainly used for testing the flushing performance and water consumption of sanitary ceramic products, including samples such as toilets, squat toilets and urinals.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is mainly used for testing the flushing performance and water consumption of sanitary ceramic products, including samples such as toilets, squat toilets and urinals.


Control system

This machine is composed of control components such as PLC, touch screen, water pump and professional test programs, etc., forming a control system.


Conform to the standard

GB6952-2015 Sanitary Ceramics 8.8.3 Determination of Water Consumption in Toilets Sanitary Ceramics

GB6952-2015 Sanitary Ceramics 8.8.4 Ink Line Test

GB6952-2015 Sanitary Ceramics 8.8.5 Toilet Ball Discharge Test

GB6952-2015 Sanitary Ceramics 8.8.6 Toilet Bowl Particle Test

GB6952-2015 Sanitary Ceramics 8.8.7 Mixed Medium Test for Toilet Bowls

GB6952-2015 Sanitary Ceramics 8.8.9 Water Seal Recovery Test

GB6952-2015 Sanitary Ceramics 8.8.10 Sewage Replacement Test

GB6952-2015 Sanitary Ceramics 8.8.11 Half-flush Toilet Paper Test for Double-Flush Toilets

GB6952-2015 Sanitary Ceramics 8.8.12 Squat Toilet Discharge Function Test

GB6952-2015 Sanitary Ceramics 8.8.13 Squat Toilet Splash Resistance Test


Technical parameters

1. Test product range: Toilet bowls, squat toilets, urinals

2. Capacity :3 workstations (sharing one water supply system)

3. Dimensions: According to the actual finished product

4. Temperature range: Room temperature

5. Power :≤5Kw

6. Environmental conditions: Temperature: 5℃ to 35℃; Relative humidity: ≤85% Air pressure: 86kPa to 106kPa

7. Water pump: It can provide static pressure ranging from 0.05MPa to 1.5MPa

8. Tooling materials: Stainless steel + copper + aluminum profiles + plastic + others

9. Counting accuracy: Counting range: 0.1 seconds to 999.99 minutes, timing accuracy: 0.1 seconds

10. Flowmeter accuracy: within 1%; Flowmeter 1 has a range of 0 to 50L/M. The range of flowmeter 2 is 0 to 300L/M

11. Weighing range :0-20Kg (0-20L), accuracy within 20g (0.02L)

12. Digital water pressure display instrument: Accuracy display 0.001MPa

13. Water pressure stability: within ±0.1MPa

14. Material :SUS304 stainless steel plate, thickness ≥1.5mm

The sample rack has a load-bearing capacity of 100 kilograms

16. Operation panel: Controller display screen, operation button setting device

17. Operation mode: Program mode, fixed value mode

18. Setting method: Chinese menu, touch screen

19. Program capacity :≥50

20. Control mode: Balanced pressure regulation control mode

21. Auxiliary functions: Fault alarm and cause, handling prompt function, capable of saving set values and sampling values, convenient drainage and exhaust, and equipped with auxiliary fixtures

22. Safety protection: System protection, testing machine protection, leakage protection, overload and short circuit protection; Filter protection Rapid drainage function

23. Voltage: Three-phase AC380V,AC220V

24. Pipeline: The standardized water supply system for the flushing water consumption and flushing function test of intelligent toilets is in accordance with the standard of GB 38448-B.1. Among them, the standardized water supply systems for testing flushing valve-type toilets, squat toilets and urinals are in accordance with the standard of GB 6952-2015-E.2. The equipment shares one set of water supply system.

25. Filter: Use a filter to remove particles and dirt from the water to prevent any impact on the operation of the water supply system and the testing of toilets

26. Auxiliary tools: The equipment should not be made so tall. A long stool approximately 300mm in height, 600mm in length and 300mm in width should be made to facilitate the transportation of samples


System composition

1. Design the experimental plan flow based on the relevant inspection items and process requirements of the standards. The PLC and its signal module perform sequential actions such as signal acquisition, processing, and display. Design a good human-machine interface, including parameter setting and convenient operation functions.

2. Control system: It is composed of a touch screen +PLC waterway system and actuator, etc. It adopts touch screen +PLC communication and sets water pressure for the PLC. It is mainly composed of a touch screen (including software), control system, sensor system, variable frequency speed regulation system and corresponding electrical appliances to control water pressure and flow rate, ensuring the accuracy, reliability, friendly interface and operability of the system. Data display, parameter setting, start and stop, etc. can be realized on the touch screen. By adopting variable frequency speed regulation technology, the suitable working condition range of multi-stage centrifugal pumps has been greatly expanded, enabling the equipment to achieve automatic adjustment of various working conditions with just one set of water pressurization device.

3. Constant pressure variable frequency water supply system: Mainly composed of water tank, stainless steel centrifugal pump, frequency converter, pipe fittings and joints, etc., to provide the water pressure value required for testing. The closed-loop control system composed of PLC, water pump and pressure sensor ensures that the temperature can be maintained within the required range of the test, and guarantees that the entire test process is carried out in the temperature and pressure environment as stipulated by the standard.

4. The adoption of a voltage stabilizing system enables the control accuracy of test parameters to reach level 1.

5. The main flow-through components and water storage tanks, etc. are all made of stainless steel and other materials to ensure long-term trouble-free operation of the equipment and greatly increase the service life of the test bench.

6. The waterway is mainly composed of water pumps, flow meters, pressure sensors, pipes and valves, etc. The diameter variation of its main pipeline meets the requirements of the standard. Among them, the water pump adopts a stainless steel multistage pump, along with a frequency converter, etc., to meet the requirements of standard working conditions.

7. Flow data display system: Mainly composed of flowmeters, amplifiers, conversion modules, etc., the flowmeter will detect in real time

The output water flow rate is transmitted in real time to the PLC signal module for conversion to obtain the flow rate, which is used for the intelligent control of the constant pressure variable frequency system. The flow rate value can also be collected and finally displayed on the interface.

8. Main frame: Composed of the equipment test bench area and the water supply source area, it includes the main frame, water tank, side panels, water pump, valves, etc. The entire system provides stable and reliable hardware for the test project, guarantees the water supply pressure, ensures the normal conduct of the test, and guarantees that the test environment fully complies with the standard requirements.

9. Waterway system: Composed of water pumps, water tanks, pipelines, valves, pressure sensors, etc., the entire pipeline system can provide water pressure as required by different tests, and the pressure values are stable.

10. External framework: The spatial structure and platform for the installation, connection and placement of all material components and test samples.
