Sanitary Ceramic Testing Machine

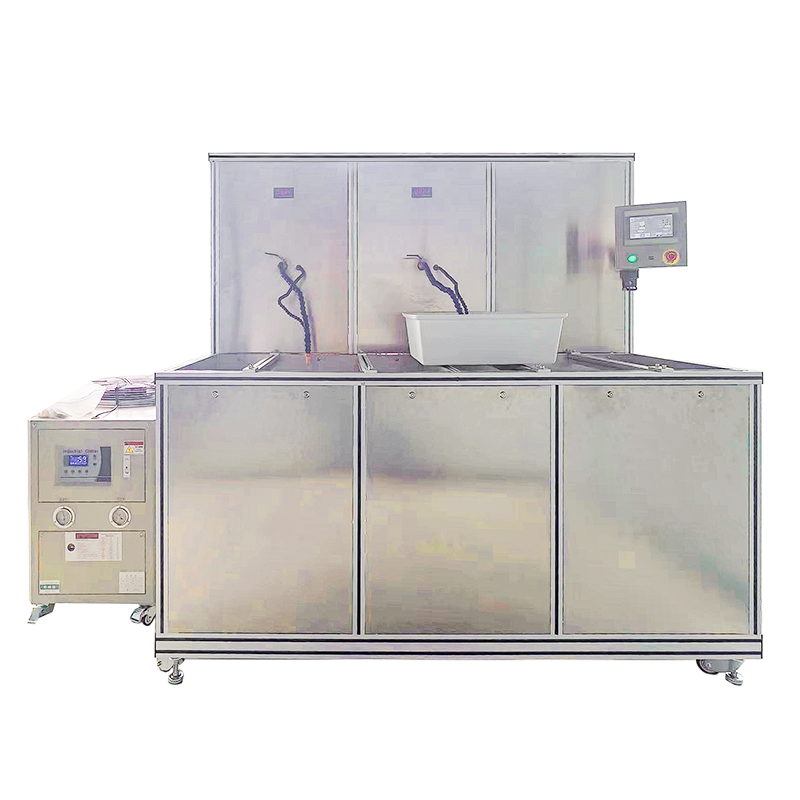

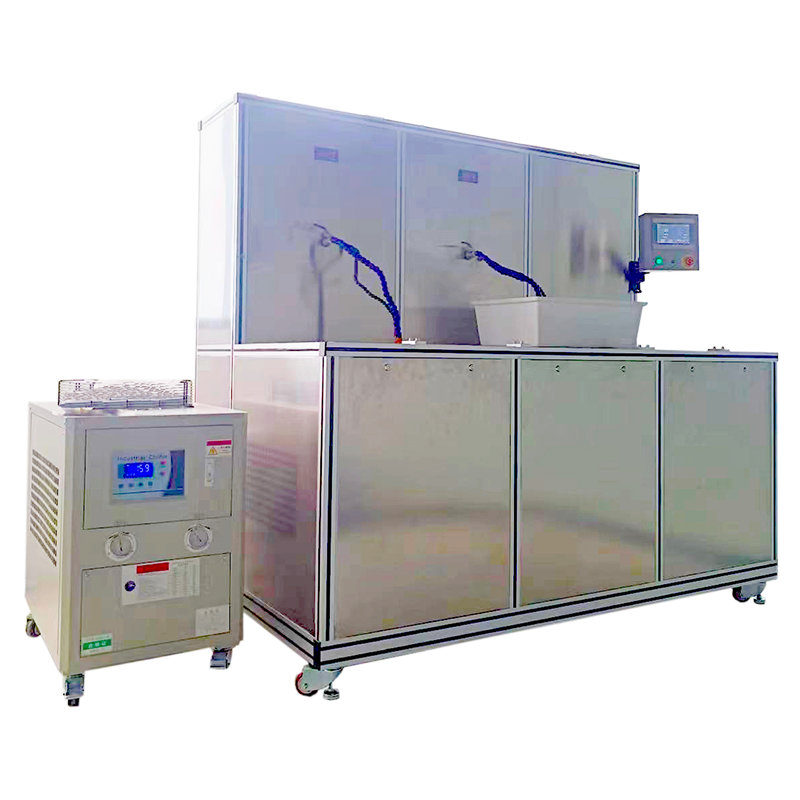

Washbasins and Bath Trays Thermal Shock Test Machine
  • Short Description
    This machine is mainly used for the thermal shock test of washbasins and bath trays.
  • SEND INQUIRY NOW
Product Details

Product description

This machine is mainly used for the thermal shock test of washbasins and bath trays.


Control system

The control system is composed of control components such as computers, PLCS, water pumps, and professional test programs.



Technical parameters

1. Working voltage: Three-phase AC380V for water pump, heating and cooling, and single-phase AC220V for the rest
Test medium: Water (Temperature: 0-95ºC)
The test range and accuracy of the temperature sensor: 0 to 100ºC, with an accuracy of grade A
4 Water tank capacity (L) : 3, among which two are 100L (one is 60L, for rapid temperature adjustment)
5 Test stations: 2 (operating synchronously), each station size: 600X600X300mm
6. Automatic flow regulation
The material used for the 7 pipelines: PPR pipes or 304 stainless steel
8 Frame: Stainless steel + aluminum profiles
9.In case of any abnormality, it can automatically alarm, shut down and record the cause
10.The water quality of the customer is relatively hard and a scale filter needs to be installed
11.Automatically monitor the temperature of the sample water spray point and adjust it automatically, and issue an alarm in case of abnormality.



Conform to the standard

EN 14688-2015 Wash basins



EN 14688-2015 Wash basins

5.4 Resistance to temperature
changes



EN 13310:2015+A1



EN 13310:2015+A1

5.4 Resistance to temperature
changes

CSA B45.5-17

CSA B45.5-17

5.16 Thermal shock test
