Product description

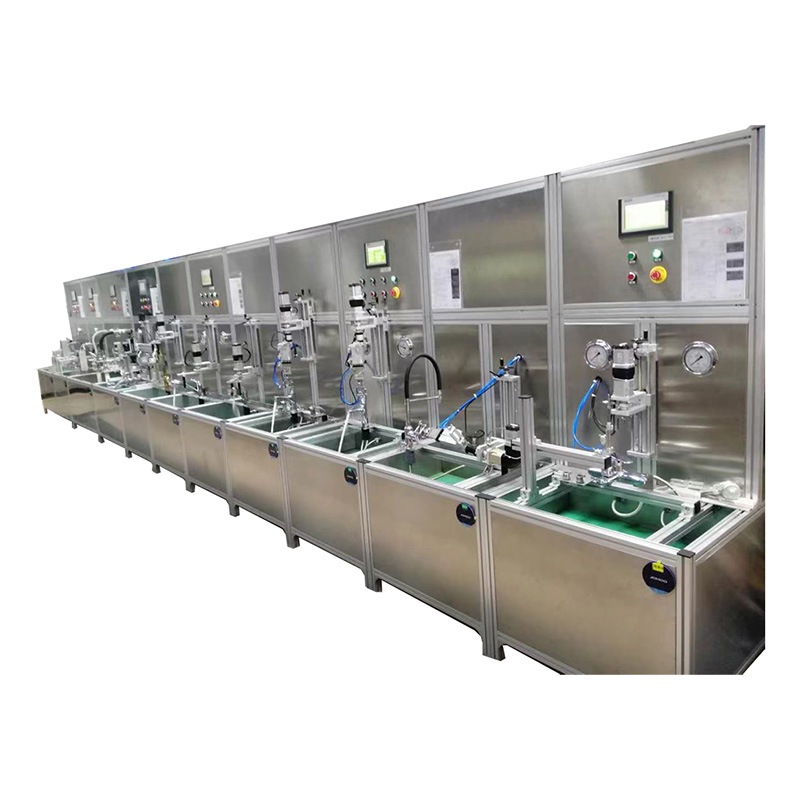

This machine is mainly used for the life test of bathroom products such as smart faucets, multi-functional shower heads, drainage accessories and right-angle valves. The test tooling adopts modular tooling to achieve flexible combination and improve the usage frequency and efficiency of the entire machine.
Control system
This machine is composed of control components such as PLC (computer), water pump, servo motor, cylinder, etc., as well as professional test programs, etc., forming a control system.
Comply with standards
1. Ceramic plate sealed faucet: GB 18145-2014 8.6.9.1 Faucet Switch Life Test
2. Ceramic plate sealed faucet: GB 18145-2014 8.6.9.2 Life Test of Changeover Switch
3. Ceramic plate sealed faucet: GB 18145-2014 8.6.9.3 Life Test of Rotating Outlet Pipe
4. Ceramic plate sealed faucets: GB 18145-2014 8.6.9.4 Life Test of Extractable Faucets
5. Delayed self-closing faucet/Sensor faucet: QB/T 1334-2013 8.10.1 The lifespan of delayed self-closing faucets
6. Delayed self-closing faucets/Sensor faucets: QB/T 1334-2013 8.10.2 Lifespan of Sensor faucets
7. Delayed self-closing faucets/Sensor faucets: QB/T 1334-2013 8.10.3 Other faucets
8. Delayed self-closing faucet/Sensor faucet: QB/T 1334-2013 8.10.4 Faucet transfer switch lifespan
9. Delayed self-closing faucet/Sensor faucet: QB/T 1334-2013 8.10.5 Service life of Rotary outlet pipe
10. Non-contact faucets: CJ/T 194-2014 8.17.1 Faucet and showerhead lifespan
11. Shower head: GB/T23447-2009 6.7 Cold and Heat Fatigue test
12. Shower head: GB/T23447-2009 6.12 Shower Head Function Conversion Life Test
13. Shower head: GB/T23447-2009 6.14 Spherical Connection Swing Performance Test
14. Drainage fittings: JC/T 932-2013 6.9 Life Test
15. Right-angle Valve: GB/T 26712-2011 5.13 Life Test
16. Gravity flushing device and sanitary ware frame: GB26730-2011 6.16 Durability Test
17.Plumbing supply fitting: ASME A112.18.1-2018/CSA B125.1-18, 5.6.1.2 Valves or controls
18.Plumbing supply fitting: ASME A112.18.1-2018/CSA B125.1-18, 5.6.1.3 Swing spouts
19.Plumbing supply fitting: ASME A112.18.1-2018/CSA B125.1-18, 5.6.1.4 Shower head.body sprays,and hand-held shower assemblies
20.Plumbing supply fitting: ASME A112.18.1-2018/CSA B125.1-18, 5.6.1.5 Diverters
21.Plumbing supply fitting: ASME A112.18.1-2018/CSA B125.1-18, 5.6.3.1 Mixing valves
22.Plumbing supply fitting: ASME A112.18.1-2018/CSA B125.1-18, 5.6.3.2 Metering and self-closing faucets
23.Plumbing supply fitting: ASME A112.18.1-2018/CSA B125.1-18, 5.6.3.3 Other devices
24.Plumbing supply fitting: ASME A112.18.1-2018/CSA B125.1-18, 5.6.3.4 Swing spouts
25.Plumbing waste fittings: ASME A112.18.2-2015/CSA B125.2-15 5.10 Life cycle
Technical parameters
1. Working voltage: Three-phase AC380V for water pump, heating and cooling, and single-phase AC220V for the rest
2. Working air pressure: External,0.3-0.6MPa
3. Power consumption: Up to 15KW
4. Upper computer: PLC (Computer)
5. Test medium: Cold water: external; Hot water: Room temperature water to 90℃ (adjustable and controllable)
6. Test workstation: Optional
7. Test product range: Single-handle dual-control faucets, double-handle dual-control faucets, smart faucets, shower heads, right-angle valves, flushing devices
8. Exterior material: Aluminum profile frame + aluminum-plastic sealing plate
9. Drive unit: Servo + cylinder
10. Angle range and accuracy: Range 0 to 270°, accuracy: 0.2°
11. Flowmeter: 0-30L/min
12. Torque sensor: 0-10NM
13. Pressure sensor: 0-1.6MPa, 0.5 grade
14. Water pump: It can provide static pressure of 0.05 to 1.0MPa
15. Overall dimensions: Depending on the number of workstations
