Sanitary Ceramic Testing Machine

Product description

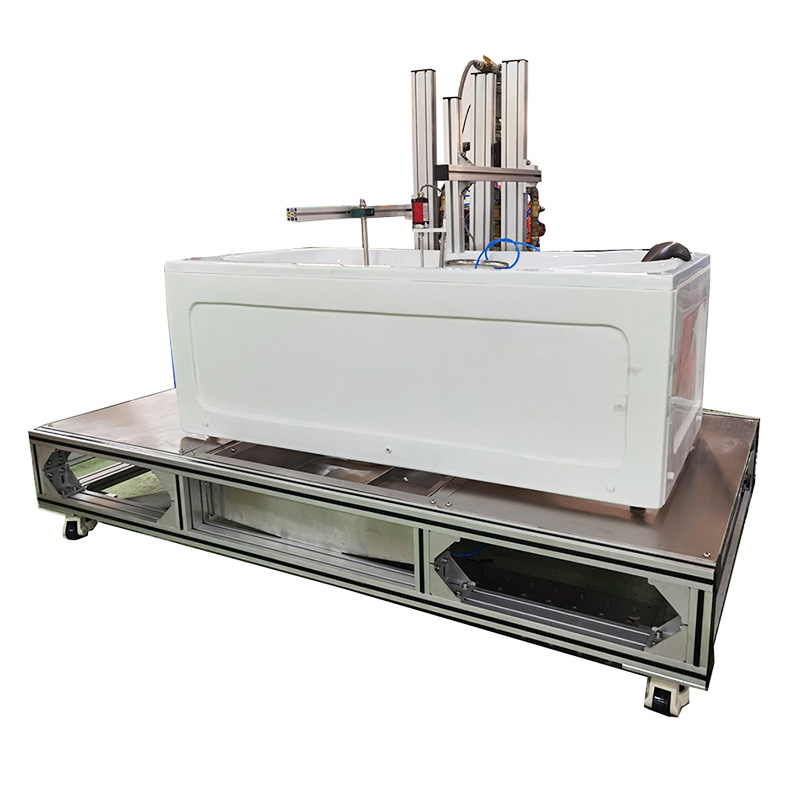

This machine is mainly used for determining the sealing performance, drainage performance, full water deformation and heat resistance water test of bathtubs. The lower end of the stand is equipped with high-strength casters. The stand can be disassembled and moved in parts, which is convenient for on-site installation.

Control system

This machine adopts control components such as PLC, touch screen, cylinder, water pump, frequency converter, etc., as well as professional test programs to form a control system.

Comply with standards

1. Bathtub: JC/T 779-2010 Glass Fiber Reinforced Plastic Bathtub 6.8 Impact resistance

2. Bathtub: JC/T 779-2010 Glass Fiber Reinforced Plastic Bathtub 6.9 Heat and water resistance

3. Bathtub: JC/T 779-2010 Glass Fiber Reinforced Plastic Bathtub 6.10 Deformation when full water

4. Bathtub: JC/T 779-2010 Glass Fiber Reinforced Plastic Bathtub 6.11 Drainage performance

Technical parameters

1. The test range and accuracy of the temperature sensor: 0 to 100℃, with an accuracy of grade A

2. Water tank volume: (L) : ≥80 cm ³

3. Equipment power supply and power: 380± 10% V /50Hz, 3KW

4. Slope of the test bench: 2mm/m

5. Heater power: 9KW
