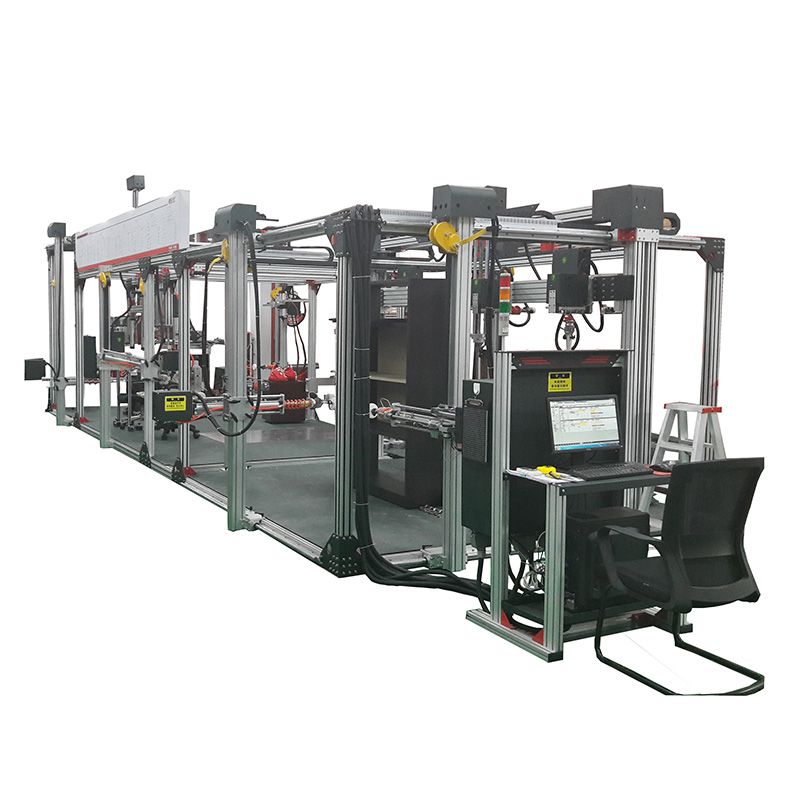

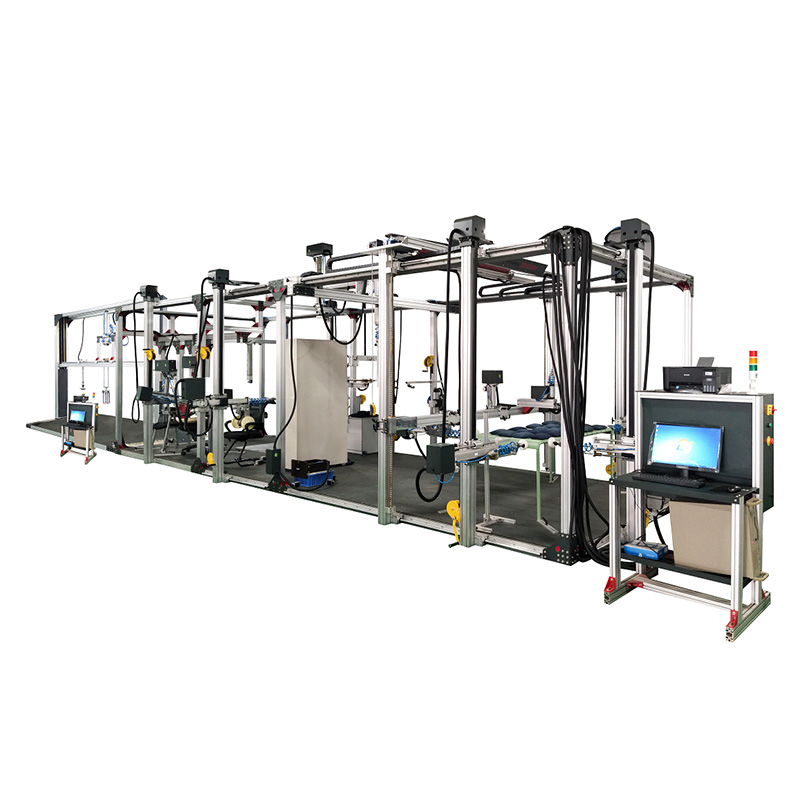

Chair testing machine

2. According to the requirements of the test project, equipped with sufficient tooling, fixture, loading pad, loading module, weights, sandbags, block, etc., the fixture can be quickly removed

 Install, and have a certain versatility.

3. Beautiful and generous appearance: all hidden wiring to prevent leakage during operation and any risk of power supply system.

4. Force sensor and digital force value display system, which display the real-time force strengthening condition of each channel respectively, and have the function of the maximum force value recording.

5. This machine can display each test data through the real-time waveform and numerical value respectively.

6. Each test is unrelated, different tests are independent of each other, adding new tests or reducing a certain test does not affect the original test.

7. The unattended test can be carried out, and the automatic stop function can be used, and the workpiece is damaged (through position induction) to automatically stop the test and automatically retain the test knot

fruit. Automatic intelligent alarm of abnormal situation and after the test.

8. With solenoid valve, pressure regulating oil filter water filter, position sensor and other automatic sensing test parts are damaged, and automatically stop the test.

9. The report is divided into single cylinder and combined tests, which can show the graph and the maximum minimum force and the maximum minimum displacement of each time.

10. Use the three-section indicators to realize the notification function of completing the test and alarm during the test.

11. The program screen shows the test status of each cylinder and the test status of each combination.

12. Each cylinder has the induction of forward limit and backward limit, which provides the judgment of the opening ring test. When using the limit judgment, we should pay attention to the speed is too fast or unjudged problems.

2. Load element accuracy: 3 / 10000

3. Test accuracy: static: ± 2% dynamic force: ± 3%

4.Electric cylinder and cylinder loading: each cylinder has an individual electrical proportional valve control make. Cylinders are imported brand, and electrical proportional valves are imported

plate.

5. Displacement stroke: 0-300mm, 0-500mm is optional.

6. The time of various actions: 0.01-30s can be set arbitrarily.

7. Test speed: 1-30 times / minute can be set arbitrarily.

8. Test number: can be set at 0-999999 times.

9. Power failure memory: has the stop / power failure memory and breakpoint detection shutdown function.

 Test results will be automatically saved.

10. Shutdown mode: stop and alarm at the arrival of test times.

11. Sensors: well-known brand sensors.

12. The equipment has a fault self-diagnosis system to facilitate checking and troubleshooting.

13. The basic framework adopts the modular construction of a high-strength aluminum metal frame,

The bottom frame adopts the stereo structure, and the structure is stable.

14. Base: high strength industrial aluminum profile + gb 45 steel, thickness of 10mm,

Power magnet fixed sample.

15. Program screen can choose simplified Chinese, traditional Chinese, English, in

 The program setup page can be changed arbitrarily.

16.Computer + force sensor + encoder formation force, displacement closed-loop control.

17. Can realize the control of the power and speed of displacement, showing displacement-time, force-time, force-displacement, maximum minimum life curve of force-displacement (the change curve of the maximum force value and maximum displacement value in each channel in each cycle), etc. There is no need to manually adjust the force value and displacement, and display the displacement of each time to realize intelligent integrated control.

18. The unit of force value can choose kgf, kN, N, tf, lbf.

19. The unit of the displacement value can be selected as mm, in.
