Chair testing machine

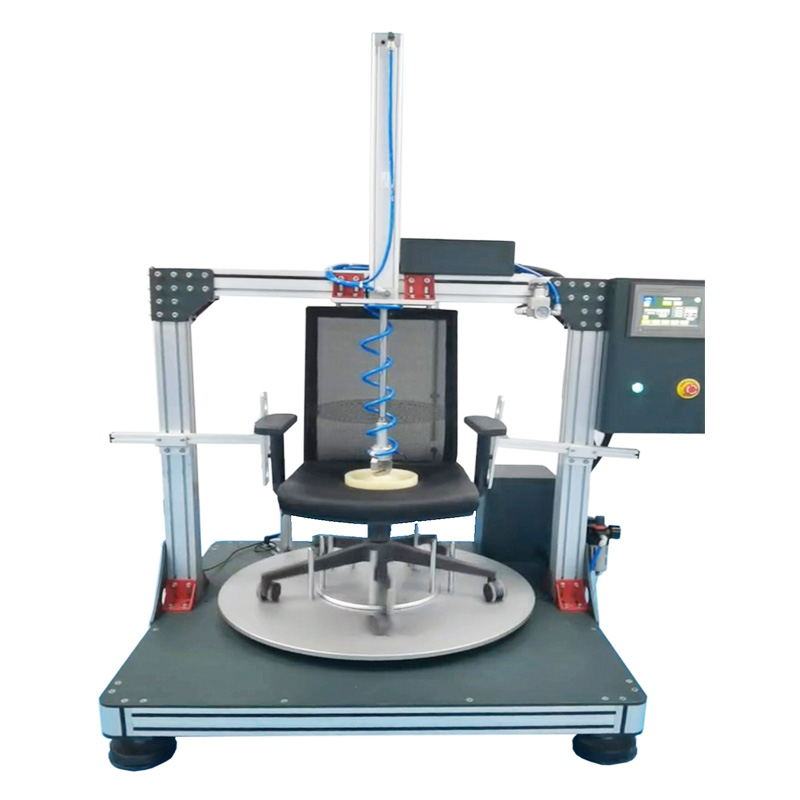

Office Chair Rotating Life Test Machine
  • Short Description
    This machine is suitable for all kinds of chairs with rotating seat cushion. The motor drives the test platform to rotate, and the frequency converter controls the motor's rotating speed and speed conversion. Precise pressure regulation to ensure stable and reliable cylinder output force; Cylinder output end with universal joint, adapt to different Angle of the chair surface; Simple clamping structure, automatic centering, no vertical stress on the chair foot, simulating the real state; The cylinder output force height is adjustable to suit different chair heights.
  • SEND INQUIRY NOW
Product Details

 Technical parameters

1. Test speed: 1-25 times/min
2. Rotation Angle: you can choose the working mode of repeated rotation or single-direction rotation
3. Sensor: 200kg
4. Mechanical structure, ensure that the eccentricity between the load force of the chair and the pressure bar is 2 inches
5. Counting range: 0-999999, with memory function of stop and power off
6. Height of bearing surface (cushion) : 300 ~ 850mm
7. Diameter of turntable: about 900mm
8. Power supply (power) : single-phase 220V/50Hz/3A
9. Air source: air pressure: ≥ 0.5mpa; Flow rate: ≥800L/min; The air source is filtered and dried
10. Body size: about 1220*1200*1960mm (length * width * height)
11. Weight: about 390kg
12. Standard accessory (distribution) : chair anti-turning block


Conform to the standard

QB/T 2280-2016
BIFMA X5.1-2017
EN 1335:2000


Control system

1. The touch screen is equipped with PLC, with the memory function of power off and on;
2. With breakpoint protection (alarm) function, deceleration motor + frequency conversion control;
3. Manual pressure regulation, SMC precision barometer;
4. Memory function of stop/power off counter.
5. Select arbitrary or 360-degree rotation mode.
